BOE 16.2inch Stretched LCD Display with 800cd/m2 Brightness and 50k Hours Working Life for Outdoor Use

BOE 16.2inch Stretched LCD Display with 800cd/m2 Brightness and 50k Hours Working Life for Outdoor Use

BOE 16.2inch Stretched LCD Display with 800cd/m2 Brightness and 50k Hours Working Life for Outdoor Use

Brand Name: BOE
Model Number: AV162YUM-N10
MOQ: 10pcs
Price: Negotiation
Payment Terms: T/T,W,Western Union,MoneyGram
Supply Ability: 3000pcs per week
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
Rohs,CE,FCC
Quality:
Brand New Original
Package:
Original Industrial Packing
Material:
Glass Led
Color:
16.7M
Model:
LCM,TFT
Style:
Bar Lcd Display
Resolution:
2608*720pixels
Brightness:
800CCD/M2
Connector:
60Pin
Working Life:
50k Hours
Contrast Ratio:
1000:1
Packaging Details:
Industrial packing
Highlight:

Outdoor Brightness Stretched LCD Display

,

AV162YUM-N10 Stretched LCD Display

,

2608*720pixels Stretched LCD Display

Product Description

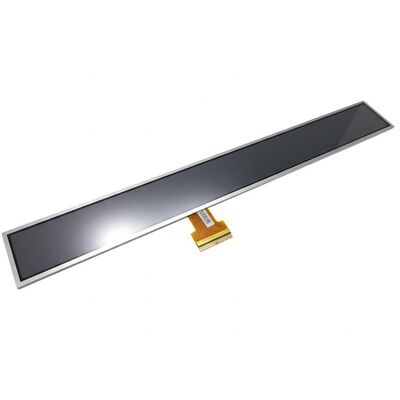

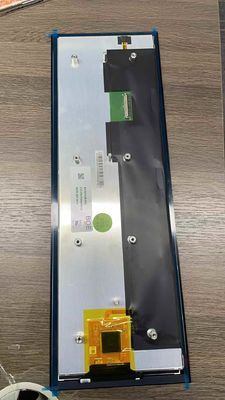

BOE 16.2-inch Stretched LCD Display AV162YUM-N10
High-performance 16.2-inch stretched LCD display panel featuring 2608*720 resolution, outdoor brightness capabilities, and extended operational lifespan for demanding industrial applications.
Product Overview
The BOE AV162YUM-N10 is a 16.2-inch diagonal a-Si TFT-LCD display panel with integrated WLED backlight system. Engineered for extreme environments, this panel operates within a wide temperature range of -30°C to 85°C and withstands vibration levels up to 10.0G (98 m/s²).
Key Features
  • High brightness 800 cd/m² for outdoor visibility
  • Extended operating temperature range (-30°C to 85°C)
  • Long-life WLED backlight (≥50,000 hours)
  • Wide color gamut with 89% DCI-P3 coverage
  • Rugged construction for industrial and automotive use
  • Multiple refresh rate options including 120Hz and 240Hz modes
  • Built-in MEMC circuit for enhanced motion performance
Technical Specifications
Model Number AV162YUM-N10
Panel Type a-Si TFT-LCD, LCM
Diagonal Size 16.2 inches
Resolution 2608(RGB)*720 pixels (167 PPI)
Active Area 396.677(W) * 109.512(H) mm
Brightness 800 cd/m² (Typical)
Contrast Ratio 1000:1 (Typical)
Viewing Angle 85/85/85/85 (Left/Right/Up/Down)
Color Depth 16.7 million colors
Backlight System 10S5P WLED, 50K hours lifespan
Signal Interface LVDS (2 channel, 8-bit), 60-pin connector
Power Supply 3.3/5.0/18/-12V (VDD3/VDD5/VGH/VGL)
Environmental Specifications
Operating Temperature -30°C to 85°C
Storage Temperature -40°C to 90°C
Vibration Resistance 10.0G (98 m/s²)
Application Areas
Ideal for rugged industrial equipment, outdoor high-brightness displays, automotive display systems, and other demanding environments requiring reliable performance under extreme conditions.
BOE 16.2inch Stretched LCD Display with 800cd/m2 Brightness and 50k Hours Working Life for Outdoor Use 0
Production Status Note: This model entered mass production in Q2 2019 and is currently in production. For the latest production status and detailed specifications, we recommend contacting BOE or their authorized distributors directly.
