10.3 Inch BOE Car LCD Display 1920*720 Pixels 850 cd/m² Brightness Automotive TFT-LCD Screen

Name: 10.3 Inch BOE Car LCD Display 1920*720 Pixels 850 cd/m² Brightness Automotive TFT-LCD Screen
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: AV103Z7M-N13
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	AV103Z7M-N13
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1920*720pixels

Style:

LCD 50PIN

Brightness:

850 CCD M2

Color:

16.7M

Contrast Ratio:

1000 :1

Working Life:

30K Hours

Packaging Details:

Industrial packing

Highlight:

10.3Inch Car LCD Display

AV103Z7M-N13

50pin Car LCD Display

Product Description

10.3-Inch BOE Automotive LCD Display - Model AV103Z7M-N13

The BOE AV103Z7M-N13-3850 is a high-performance 10.3-inch automotive TFT-LCD display panel featuring 1920*720 resolution and wide temperature operation for demanding vehicle applications.

Product Overview

This 10.3-inch diagonal a-Si TFT-LCD display panel from BOE Technology Group features an integrated WLED backlight system and is specifically engineered for automotive display applications. The panel operates reliably in extreme temperature conditions from -30°C to 85°C.

Key Features

Wide operating temperature range (-30°C to 85°C)
High brightness 850 cd/m² display
WLED backlight technology
Bar display format optimized for automotive use
U/D, L/R reverse display capability
IPS/VA family compatibility

Technical Specifications

Brand	BOE
Model Number	AV103Z7M-N13-3850
Diagonal Size	10.3 inches
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)*720 pixels (200 PPI)
Active Area	243.648mm * 91.368mm
Outline Dimensions	256.748mm * 107.068mm * 10.5mm
Luminance	850 cd/m² (Typical)
Viewing Angle	85/85/85/85 (CR≥10) Left/Right/Up/Down
Color Depth	16.7M colors, 75% NTSC
Contrast Ratio	1000:1 (Typical)
Response Time	25ms (Typical, Tr+Td)
Refresh Rate	60Hz standard, up to 240Hz with MEMC
Backlight	9S3P WLED, No Driver
Signal Interface	LVDS (2 ch, 8-bit), 50-pin connector
Voltage Supply	3.3V (Typical)
Operating Temperature	-30°C to 85°C
Storage Temperature	-40°C to 85°C
Touchscreen	Without

Refresh Rate Options

120Hz (60Hz Input): Embedded MEMC Circuit
120Hz+120Hz: 120Hz Panel + 120Hz Backlight
240Hz (60Hz Input): Embedded MEMC Circuit

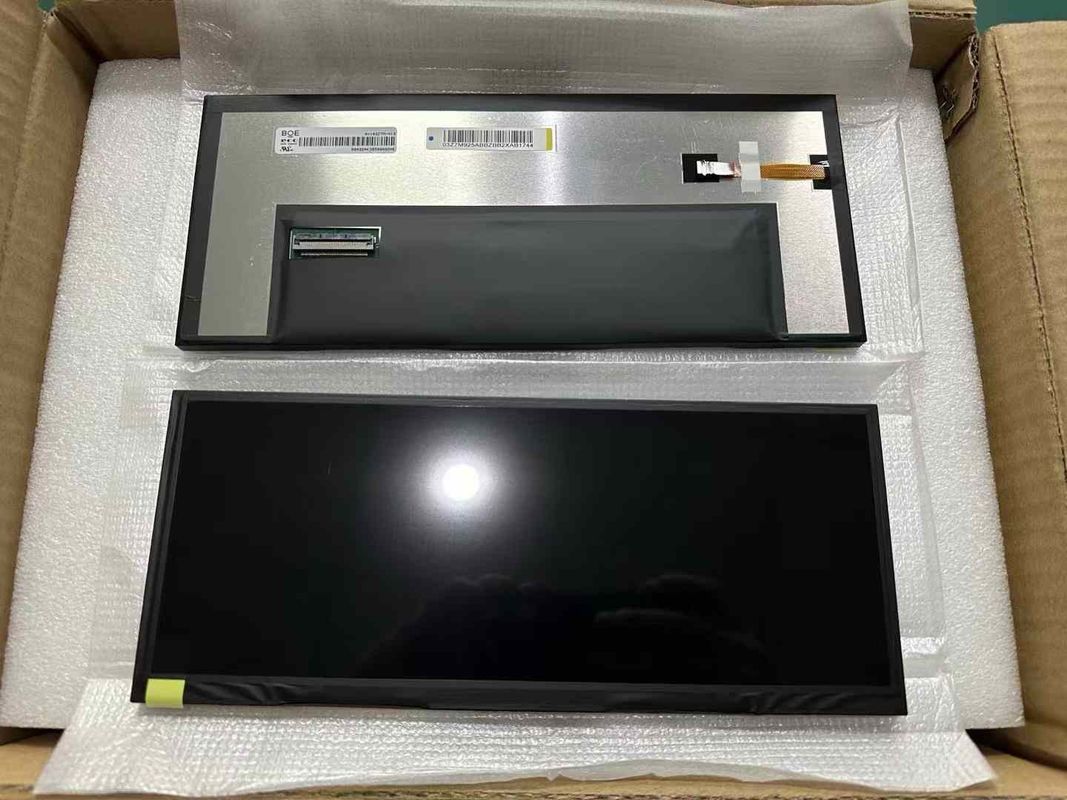

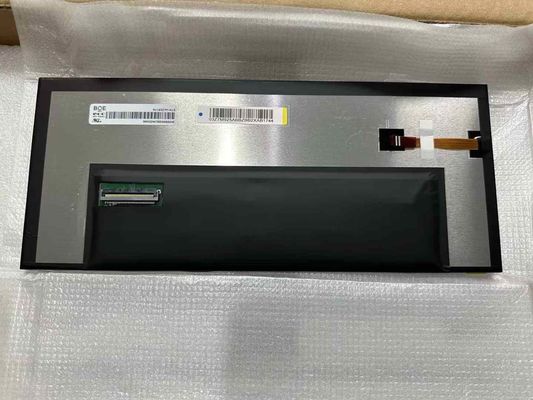

Product Images

Important Note: This model entered mass production in Q3 2019 and is currently in production. For the latest production status and detailed specifications, we strongly recommend contacting BOE or their authorized distributors directly. The information provided here is for reference only and should not be used as the sole basis for decision-making.
