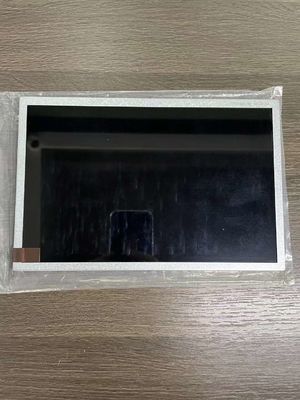

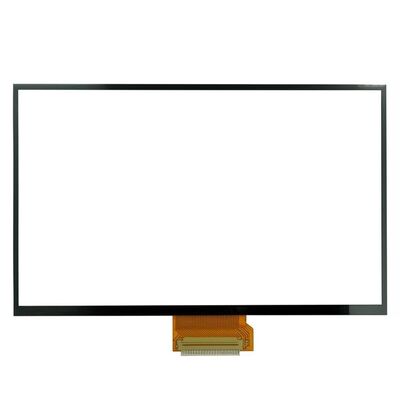

BOE 10.1 Inch Medical LCD Panel EV101WXM-N80 with 1280X800 Pixels 400cd/M2 Brightness for Healthcare

Name: BOE 10.1 Inch Medical LCD Panel EV101WXM-N80 with 1280X800 Pixels 400cd/M2 Brightness for Healthcare
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: EV101WXM-N80
Price: 43.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	EV101WXM-N80
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

Japan

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1280*800pixels

Style:

20PIN IPS

Brightness:

400CD/M2

Color:

16.2m

Contrast Ratio:

900 :1

Working Life:

30K Hours

Type:

Lcm

Size:

10.1inch

Lamp Type:

WLED

Voltage:

3.3V

Model Numberer:

EV101WXM-N80

Packaging Details:

Industrial packing

Highlight:

10.1 Inch Medical LCD Panel

1280X800Pixels Medical LCD Panel

EV101WXM-N80 Medical LCD Panel

Product Description

10.1 Inch EV101WXM-N80 Medical LCD Panel

Product Overview

BOE 10.1-inch healthcare LCD panel model EV101WXM-N80 featuring 1280*800 resolution, 149 PPI, 400 cd/m² brightness, and 20-pin LVDS interface. Specifically designed for medical and healthcare applications with reliable performance and extended temperature range operation.

Technical Specifications

Brand BOE

Model EV101WXM-N80

Diagonal Size 10.1 inches

Panel Type a-Si TFT-LCD, LCM

Resolution 1280*800 (WXGA)

Pixel Density 149 PPI

Brightness 400 cd/m²

Contrast Ratio 900:1

Viewing Angle 85/85/85/85 (L/R/U/D)

Response Time 30 ms

Interface LVDS (1 ch, 8-bit), 20 pins

Power Supply 3.3V

Operating Temperature -20°C to 70°C

Storage Temperature -30°C to 80°C

Weight 505g

Key Features

WLED backlight system with 30,000-hour lifespan
Supports 16.2 million colors with 48% NTSC color gamut
Frame rate options: 60Hz, 120Hz (with embedded MEMC circuit), 240Hz (with embedded MEMC circuit)
ADS operating mode with normally black, transmissive design
Specifically engineered for healthcare applications
Compact dimensions: 233.2*152.9*10.4 mm

Important Note: Production status information is for reference only. For integration into your products, contact BOE or their distributor for the latest production and specification details. This model entered mass production in Q1 2018 and is currently in production.
