BOE GV101WXM-N81 10.1 Inch Industrial LCD Panel with 1280*800 Pixels and WLED Lamp Type

Name: BOE GV101WXM-N81 10.1 Inch Industrial LCD Panel with 1280*800 Pixels and WLED Lamp Type
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: GV101WXM-N81
Price: 43.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	GV101WXM-N81
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

Japan

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1280*800pixels

Style:

30PIN IPS

Brightness:

300CD/M2

Color:

262k

Contrast Ratio:

800 :1

Working Life:

15K Hours

Type:

Lcm

Size:

10.1inch

Lamp Type:

WLED

Voltage:

3.3V

Model Numberer:

GV101WXM-N81

Packaging Details:

Industrial packing

Highlight:

GV101WXM-N81 Industrial LCD Panel

WLED Industrial LCD Panel

10.1 Inch Industrial LCD Panel

Product Description

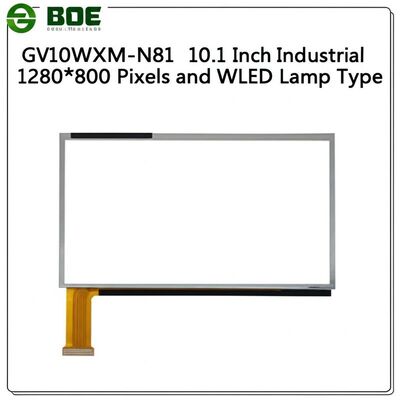

BOE GV101WXM-N81 10.1 Inch Industrial LCD Panel

High-performance 10.1-inch industrial LCD display panel with 1280*800 resolution, designed for demanding tablet and industrial applications.

Technical Specifications

Brand	BOE
Model Number	GV101WXM-N81
Diagonal Size	10.1 inches
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)*800 (WXGA), 149 PPI
Active Area	216.96(W)*135.6(H) mm
Outline Size	228.3(W)149.05(H)2.6(D) mm
Brightness	300 cd/m² (Typical)
Contrast Ratio	800:1 (Typical)
Viewing Angle	85/85/85/85 (Left/Right/Up/Down)
Display Mode	ADS, Normally Black, Transmissive
Response Time	30ms (Typical)
Display Colors	16.7M, 48% NTSC
Backlight	WLED, 15K hours, With LED Driver
Refresh Rate	60Hz (120Hz with Embedded MEMC Circuit)
Signal Interface	eDP (1 Lane), eDP1.2, HBR1 (2.7G/lane), 30-pin Connector
Input Voltage	3.3V (Typical)
Operating Temperature	-20°C to 60°C
Storage Temperature	-20°C to 60°C
Panel Weight	155g (Maximum)

Key Features

WLED backlight system with integrated LED driver
Glossy surface with hard coating (Haze 0%)
Embedded MEMC circuit for enhanced motion performance
eDP 1.2 interface for high-speed data transmission
Wide operating temperature range for industrial environments
Compact and lightweight design at 155g maximum weight

Applications

Ideal for tablet computers, industrial control systems, medical devices, and other applications requiring reliable display performance in challenging environments.

Production Information: Mass production began in Q3 2020. For the latest production status and detailed specifications, we recommend contacting BOE or their authorized agents directly.
