BOE 15.6 Inch Industrial LCD Display TFT-LCD Panel with 1920x1080 Pixels Resolution and 300CD/M2 Brightness

Name: BOE 15.6 Inch Industrial LCD Display TFT-LCD Panel with 1920x1080 Pixels Resolution and 300CD/M2 Brightness
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: NV156FHM-N43
Price: 43.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	NV156FHM-N43
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

Japan

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1920*1080pixels

Style:

30PIN IPS

Brightness:

300CD/M2

Color:

262k

Contrast Ratio:

800 :1

Working Life:

15K Hours

Type:

Lcm

Size:

15.6.1inch

Lamp Type:

WLED

Voltage:

3.3V

Model Numberer:

NV156FHM-N43

Packaging Details:

Industrial packing

Highlight:

15.6Inch Industrial LCD

NV156FHM-N43 Industrial LCD

1920X1080Pixels Industrial LCD

Product Description

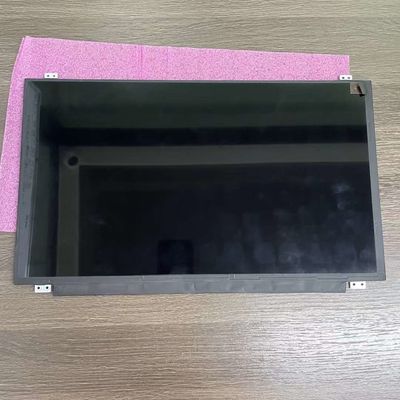

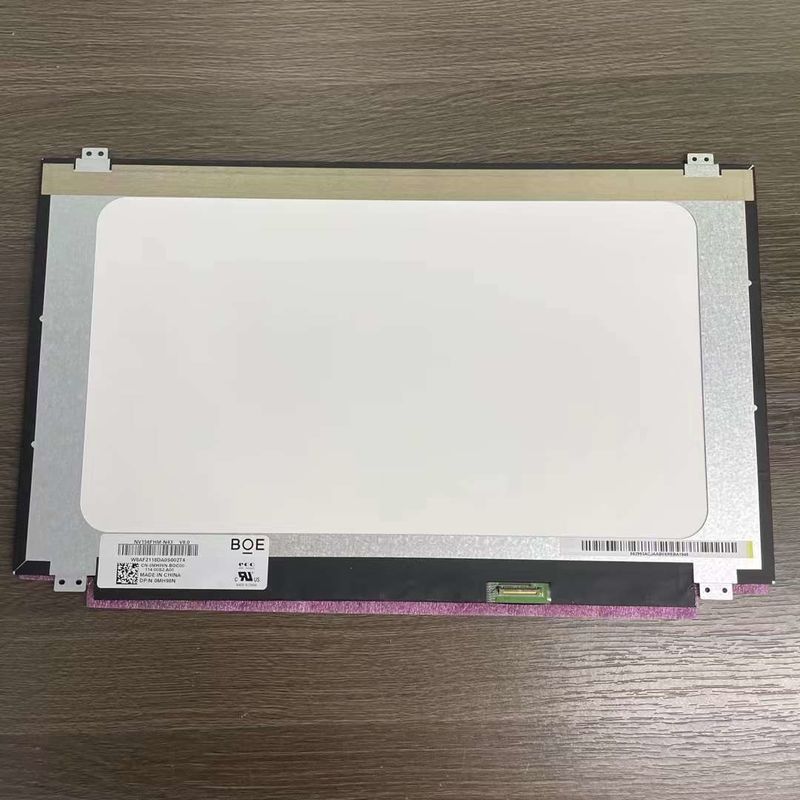

BOE 15.6-Inch Industrial LCD Display NV156FHM-N43

The NV156FHM-N43 is a 15.6-inch diagonal a-Si TFT-LCD display panel from BOE Technology Group Co., Ltd., featuring an integrated WLED backlight system with LED driver. This industrial-grade display offers FHD resolution and is designed for reliable performance in demanding applications.

Key Specifications

Brand: BOE

Model: NV156FHM-N43

Diagonal Size: 15.6 inches

Panel Type: a-Si TFT-LCD, LCM

Resolution: 1920*1080 (FHD), 141 PPI

Pixel Format: RGB Vertical Stripe

Active Area: 344.16*193.59 mm

Outline Dimensions: 359.5*223.8*3.2 mm

Surface Treatment: Antiglare

Luminance: 300 cd/m² (Typical)

Contrast Ratio: 800:1 (Typical)

Response Time: 30 ms (Typical)

Viewing Angle: 85/85/85/85 (CR≥10)

Operating Mode: ADS, Normally Black

Color Support: 262K, 72% NTSC

Light Source: WLED [9S6P], 15K hours

Frame Rate: 60Hz

Touch Panel: Without

Interface: eDP (2 Lanes), eDP1.3, 30-pin connector

Power Supply: 3.3V (Typical)

Environmental Specifications

Operating Temperature: 0°C to 50°C

Storage Temperature: -20°C to 60°C

Vibration Level: 1.5G (14.7 m/s²)

Application Recommendations

This industrial LCD model is recommended for laptop applications, healthcare equipment, and other industrial uses requiring reliable display performance. The slim form factor (PCBA Flat, T≤3.2mm) makes it suitable for space-constrained applications.

Important Note: This model entered mass production in Q4 2014 and is currently in production. For the latest production status and detailed specifications, we strongly recommend contacting BOE or their authorized agents directly. Information on einklcd.com is for reference only and should not be used as the sole basis for decision-making.
