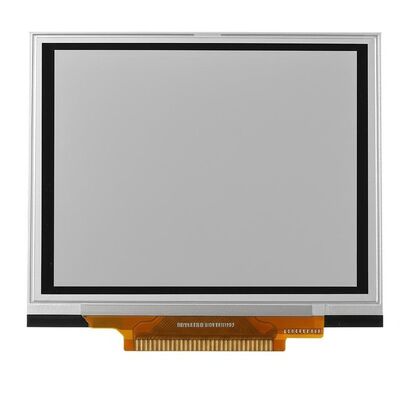

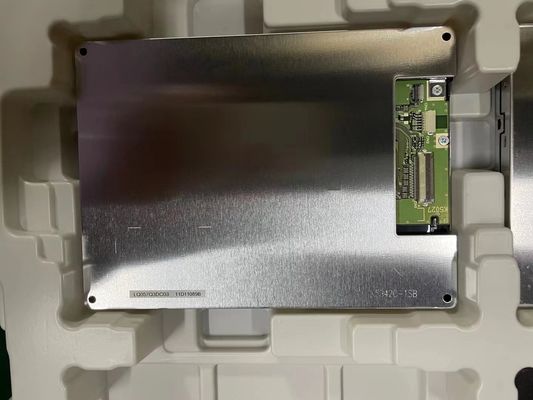

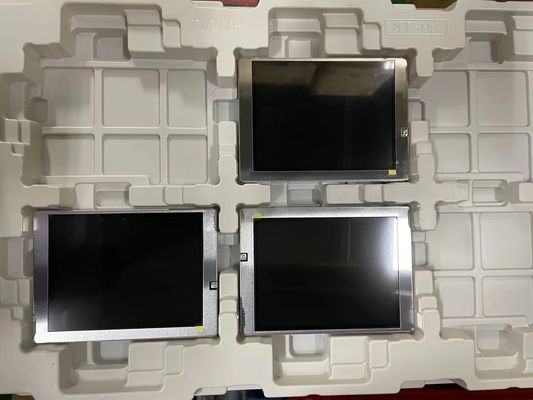

Sharp 5.7Inch Industrial LCD Display TFT-LCD Panel with 500cd/M2 Brightness and 33PIN Interface

Name: Sharp 5.7Inch Industrial LCD Display TFT-LCD Panel with 500cd/M2 Brightness and 33PIN Interface
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: LQ057Q3DC03
Price: 43.00 USD
Availability: InStock

Brand Name:	Sharp
Model Number:	LQ057Q3DC03
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

Japan

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

320*240pixels

Style:

33PIN IPS

Brightness:

500CD/M2

Color:

262k

Contrast Ratio:

350 :1

Working Life:

50K Hours

Type:

Lcm

Size:

5.7inch

Lamp Type:

WLED

Voltage:

3.3V

Model Number:

LQ057Q3DC03

Packaging Details:

Industrial packing

Highlight:

5.7Inch Industrial lcd

LQ057Q3DC03 Industrial lcd

320X240Pixels Industrial lcd

Product Description

Sharp 5.7-Inch Industrial LCD Display LQ057Q3DC03

The LQ057Q3DC03 is a 5.7-inch diagonal a-Si TFT-LCD display panel from Sharp Corporation featuring an integrated WLED backlight system with LED driver. This industrial-grade display operates in extreme temperature conditions from -30°C to 80°C and is designed for reliable performance in demanding environments.

Key Features

Wide operating temperature range (-30°C to 80°C)
WLED backlight with 50,000+ hour lifespan
Integrated LED driver circuitry
180° reverse viewing capability
Glossy surface with hard coating (2H)
Mechanically compatible with LQ057Q3DC12

Technical Specifications

Display Size 5.7-inch Diagonal

Resolution 320 * 240 pixels (QVGA)

Pixel Density 70 PPI

Brightness 500 cd/m²

Contrast Ratio 350:1

Viewing Angle 80/80/80/65 (L/R/U/D)

Active Area 115.2 * 86.4 mm

Outline Dimensions 144 * 104.6 * 12.8 mm

Interface Parallel RGB, 33-pin

Input Voltage 3.3V

Weight 210g maximum

Environmental Specifications

Operating Temperature -30°C to 80°C

Storage Temperature -30°C to 80°C

Vibration Resistance 1.0G (9.8 m/s²)

Important Note: This model entered mass production in Q2 2012 with final shipments in Q1 2021. The LQ057Q3DC03 is now discontinued. For current production status and specifications, please contact Sharp or their authorized representatives directly.

Product status information is provided for reference only and should not be used as the sole basis for decision-making.
