BOE 24Inch Stretched LCD Monitor with 1920*360 Pixels 300cd/m2 Brightness and 30K Hours WLED Backlight

BOE 24Inch Stretched LCD Monitor with 1920*360 Pixels 300cd/m2 Brightness and 30K Hours WLED Backlight

Brand Name: BOE
Model Number: DV240FBM-NB0
MOQ: 1pcs
Price: Negotiation
Payment Terms: T/T,W,Western Union,MoneyGram
Supply Ability: 3000pcs per week
Detail Information
Product Description
Detail Information
Place of Origin:
Taiwan
Certification:
Rohs,CE,FCC
Quality:
Brand New Original
Package:
Original Industrial Packing
Material:
Glass Oled
Color:
16.7m Colors
Model:
WLED
Style:
Wide Screen High Resolution 1920*360
Brightness:
300cd
Connector:
30pin
Contrast Ratio:
1200:1
Working Life:
30K Hours
Packaging Details:
Industrial packing
Highlight:

1920*360 Pixels Stretched Lcd Monitor

,

300cd/m2 Stretched Lcd Monitor

,

DV240FBM-NB0 Stretched Lcd Monitor

Product Description
BOE 24-Inch Stretched LCD Monitor - DV240FBM-NB0
Product Overview
The DV240FBM-NB0 is a 24.0-inch diagonal stretched bar LCD display panel from BOE Technology Group Co., Ltd. This industrial-grade monitor features a unique 1920*360 pixel resolution, making it ideal for digital signage and specialized display applications.
Key Specifications
Model Number DV240FBM-NB0
Display Size 24.0" (1/3 cut of 27.0")
Resolution 1920(RGB)*360 pixels (81 PPI)
Panel Type a-Si TFT-LCD, LCM
Brightness 300 cd/m² (Typical)
Contrast Ratio 1200:1 (Typical)
Active Area 597.888mm (W) * 112.104mm (H)
Interface LVDS (2 ch, 8-bit) 30-pin Connector
Power Supply 5.0V (Typical)
Technical Features
  • WLED Backlight System with 30,000 hours lifespan
  • Bar Display format optimized for digital signage
  • Matte anti-glare treatment (Haze 25%)
  • Energy Star 6.0 Compliance
  • ADS technology with Normally Black, Transmissive operation
  • Wide viewing angle: 89/89/89/89 (CR≥10)
  • Supports 16.7M colors with 72% NTSC color gamut
Refresh Rate Options
Standard Operation 60Hz
With Embedded MEMC Circuit 120Hz (60Hz Input)
Combined Operation 120Hz+120Hz (120Hz Panel + 120Hz Backlight)
Enhanced Performance 240Hz (60Hz Input with Embedded MEMC Circuit)
Environmental Specifications
Operating Temperature 0°C to 50°C
Storage Temperature -20°C to 60°C
Response Time 30ms (Typical, Tr+Td)
Weight 1.21kg (Typical)
Application Areas
This stretched LCD monitor is specifically designed for digital signage applications, information displays, control panels, and other specialized industrial and commercial display requirements where a wide, narrow format is advantageous.

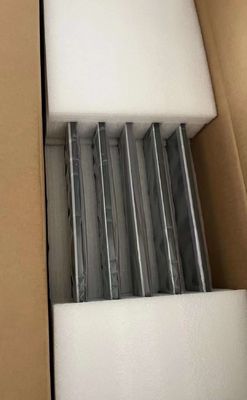

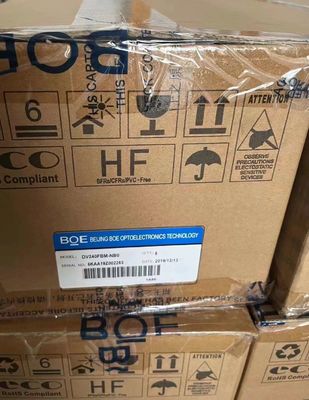

Product Images
BOE 24Inch Stretched LCD Monitor with 1920*360 Pixels 300cd/m2 Brightness and 30K Hours WLED Backlight 0 BOE 24Inch Stretched LCD Monitor with 1920*360 Pixels 300cd/m2 Brightness and 30K Hours WLED Backlight 1
Important Notice
Production status and specifications are subject to change. Einklcd strongly recommends contacting BOE or their authorized agents for the latest production status and detailed specifications before integrating this model into your products.
