1920*360 Pixels BOE 24Inch Stretched Lcd Monitor 300cd/m2 30 Pin DV240FBM-NB0 5.0V 30PIN 1200:1 15K hours WLED

1920*360 Pixels BOE 24Inch Stretched Lcd Monitor 300cd/m2 30 Pin DV240FBM-NB0 5.0V 30PIN 1200:1  15K hours WLED
1920*360 Pixels BOE 24Inch Stretched Lcd Monitor 300cd/m2 30 Pin DV240FBM-NB0 5.0V 30PIN 1200:1  15K hours WLED 1920*360 Pixels BOE 24Inch Stretched Lcd Monitor 300cd/m2 30 Pin DV240FBM-NB0 5.0V 30PIN 1200:1  15K hours WLED

Large Image :  1920*360 Pixels BOE 24Inch Stretched Lcd Monitor 300cd/m2 30 Pin DV240FBM-NB0 5.0V 30PIN 1200:1 15K hours WLED

Product Details:
Place of Origin: Taiwan
Brand Name: BOE
Certification: Rohs,CE,FCC
Model Number: DV240FBM-NB0
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation

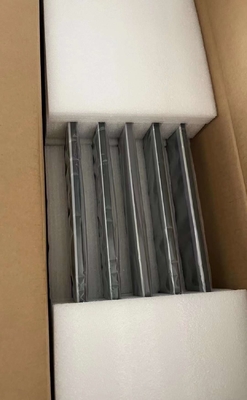

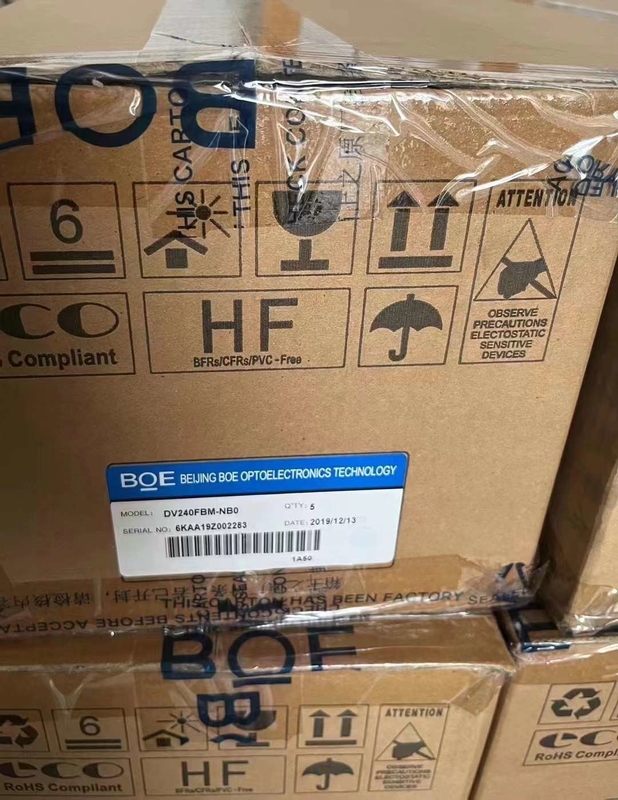

Packaging Details: Industrial packing
Delivery Time: 4-5 working day
Payment Terms: T/T,W, Western Union, MoneyGram
Supply Ability: 3000pcs per week

1920*360 Pixels BOE 24Inch Stretched Lcd Monitor 300cd/m2 30 Pin DV240FBM-NB0 5.0V 30PIN 1200:1 15K hours WLED

Description
Quality: Brand New Original Package: Original Industrial Packing
Material: Glass Oled Color: 16.7m Colors
Model: WLED Style: Wide Screen High Resolution 1920*360
Brightness: 300cd Connector: 30pin
Contrast Ratio: 1200:1 Working Life: 30K Hours

1920*360 Pixels BOE 24Inch Stretched Lcd Monitor 300cd/m2 30 Pin DV240FBM-NB0 5.0V 30PIN 1200:1 15K hours WLED





DV240FBM-NB0 is a 24.0" diagonal a-Si TFT-LCD display panel product from BOE Technology Group Co., Ltd. (hereafter called BOE), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by Einklcd in the following: WLED Backlight, Bar Display, Reverse I/F, Matte , Energy Star 6.0 Compliance. Based on its features,einklcd recommend that this model be applied to Digital Signage, Stretched Bar LCD etc. According to the information stored in einklcd this model mass production on Q1, 2017, Now this model is in production. We inputted this model's specification on Dec 7 2017 for the first time, and the latest update on Aug 5 2023. If you want to embed the LCM in your future product, Einklcd strongly recommend that you should contact with BOE or it's agent to learn lateast production and specification detail of DV240FBM-NB0. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.



Brand BOE
Model P/N:DV240FBM-NB0
Diagonal Size:24.0" (1/3 cut of 27.0")
Panel Type:a-Si TFT-LCD, LCM
Resolution:1920(RGB)×360 81PPI
Pixel Format RGB
Vertical Stripe
Active Area:597.888(W)×112.104(H) mm
Bezel Opening-
Outline Dim.
Luminance
View Direction
Viewing Angle
Support Color
Weight
Frame Rate
612.7(W)×132.1(H)×12.8(D) mm
300 cd/m² (Typ.)
Symmetry
89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down
16.7M 72% NTSC
1.21Kgs (Typ.)
60Hz
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC Circuit
Treatment
Contrast Ratio
Response Time
Operating Mode
Light Source
Designed For
Touch Panel
Antiglare (Haze 25%)
1200:1 (Typ.) (TM)
30 (Typ.)(Tr+Td)
ADS, Normally Black, Transmissive
IPS Family: AAS, ADS, AHVA, FFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich
VA Family: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA
WLED , 30K hours , W/O Driver
Digital Signage Stretched Bar LCD
Without
Interface Type LVDS (2 ch, 8-bit) 30 pins Connector
Power Supply 5.0V (Typ.)
Environment Operating Temperature: 0 ~ 50 °C ;
Storage Temperature: -20 ~ 60 °C

1920*360 Pixels BOE 24Inch Stretched Lcd Monitor 300cd/m2 30 Pin DV240FBM-NB0 5.0V 30PIN 1200:1  15K hours WLED 01920*360 Pixels BOE 24Inch Stretched Lcd Monitor 300cd/m2 30 Pin DV240FBM-NB0 5.0V 30PIN 1200:1  15K hours WLED 1
