Innolux 21.5Inch Industrial LCD Display TFT-LCD Panel with 1920x1080P Resolution and 30PIN Connector

Name: Innolux 21.5Inch Industrial LCD Display TFT-LCD Panel with 1920x1080P Resolution and 30PIN Connector
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: M215HJJ-L30
Price: 43.00 USD
Availability: InStock

Brand Name:	Innolux
Model Number:	M215HJJ-L30
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

Japan

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1920*1080pixels

Style:

30PIN IPS

Brightness:

250CD/M2

Color:

16.7m

Contrast Ratio:

3000 :1

Working Life:

40K Hours

Type:

Lcm

Size:

21.5inch

Lamp Type:

WLED

Voltage:

5.0V

Model Number:

M215HJJ-L30

Packaging Details:

Industrial packing

Highlight:

21.5Inch Industrial lcd

102PPI Industrial lcd

M215HJJ-L30 Industrial lcd

Product Description

Innolux 21.5-Inch Industrial LCD Display M215HJJ-L30

The Innolux M215HJJ-L30 Rev.C5 is a 21.5-inch diagonal a-Si TFT-LCD industrial display panel featuring Full HD 1920*1080 resolution. This professional-grade monitor delivers exceptional clarity with 102 PPI pixel density and 250 cd/m² brightness, making it ideal for demanding industrial applications and desktop monitoring environments.

Product Overview

This industrial LCD panel incorporates an integral WLED backlight system and features MVA technology with normally black, transmissive work mode. Designed for reliability in challenging environments, it operates within a temperature range of 0~50°C and withstands vibration levels up to 1.5G (14.7 m/s²).

Technical Specifications

Brand & Model	Innolux M215HJJ-L30 Rev.C5
Diagonal Size	21.5 inches
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)*1080 (FHD), 102 PPI
Active Area	476.064mm * 267.786mm
Brightness	250 cd/m² (Typical)
Contrast Ratio	3000:1 (Typical)
Viewing Angle	89/89/89/89 (CR≥10) Left/Right/Up/Down
Response Time	20/5 ms (Typical) Tr/Td
Color Depth	16.7M colors, 72% NTSC
Backlight System	4 strings WLED, 40K hours lifespan
Refresh Rate	60Hz/120Hz/240Hz with embedded MEMC circuit
Signal Interface	LVDS (2 ch, 8-bit), 30-pin connector
Operating Voltage	5.0V (Typical)
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C
Surface Treatment	Antiglare (Haze 25%), Hard coating (3H)
Weight	1.80kg (Typical) / 1.89kg (Maximum)

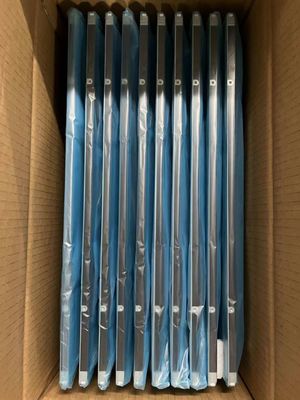

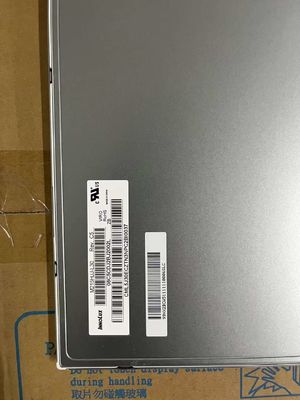

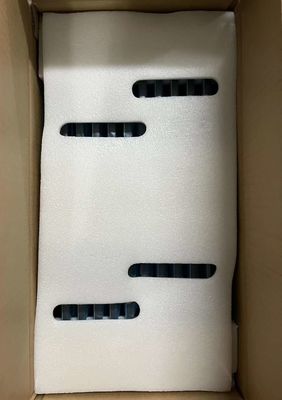

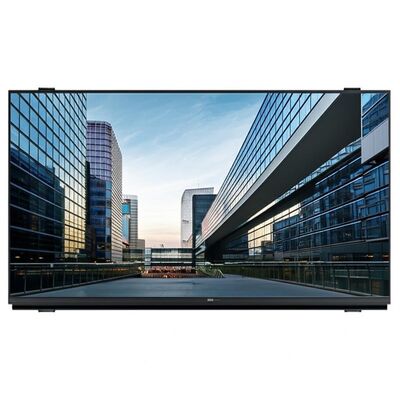

Product Images

Application & Status

This model is recommended for desktop monitors and industrial applications. Originally entering mass production in Q1 2016, the M215HJJ-L30 Rev.C5 has been discontinued with final shipments occurring in Q1 2023.

Important Note: For integration into future products, we strongly recommend contacting Innolux or their authorized agents for the latest production status and specification details. The information provided here is for reference only and should not be used as the sole basis for decision-making.
