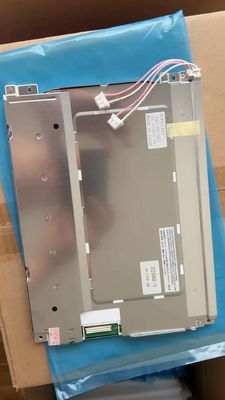

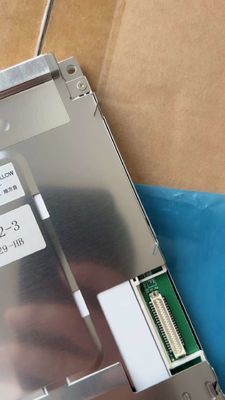

Sharp 10.4 Inch Industrial LCD Display LQ104S1DG21 with 350cd/m2 Brightness and 41PIN Connector

Name: Sharp 10.4 Inch Industrial LCD Display LQ104S1DG21 with 350cd/m2 Brightness and 41PIN Connector
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: LQ104S1DG21
Price: 43.00 USD
Availability: InStock

Brand Name:	sharp
Model Number:	LQ104S1DG21
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

800*600pixels

Style:

30PIN IPS

Brightness:

350CD/M2

Color:

262k

Contrast Ratio:

300 :1

Working Life:

50K Hours

Type:

Lcm

Size:

10.4inch

Lamp Type:

WLED

Voltage:

3.3V

Packaging Details:

Industrial packing

Highlight:

350cd/M2 Industrial LCD

41PIN Industrial LCD

Sharp 10.4 Inch Industrial LCD

Product Description

Sharp 10.4 Inch Industrial LCD LQ104S1DG21

High-performance 10.4-inch industrial LCD display panel featuring 350 cd/m² brightness, 800*600 SVGA resolution, and 41-pin connector interface. Designed specifically for demanding industrial applications with wide operating temperature range and robust construction.

Key Specifications

Brand: Sharp

Model: LQ104S1DG21

Diagonal Size: 10.4 inches

Panel Type: a-Si TFT-LCD, LCM

Resolution: 800*600 SVGA (96 PPI)

Brightness: 350 cd/m² (Typical)

Contrast Ratio: 300:1 (Typical)

Viewing Angle: 70/70/40/70 (L/R/U/D)

Response Time: 10/25 ms (Tr/Td)

Interface: CMOS (1 ch, 6-bit), 41-pin Connector

Power Supply: 3.3/5.0V (Typical)

Operating Temp: -10°C to 65°C

Storage Temp: -30°C to 70°C

Weight: 620g (Maximum)

Backlight: CCFL [2 pcs], 50K hours

Physical Dimensions

Active Area: 211.2 * 158.4 mm

Bezel Opening: 214.6 * 162.4 mm

Outline Dimensions: 246.5 * 179.4 * 15.5 mm

Important Note: This model entered mass production in Q2 2003 with last shipment in Q3 2011 and is now discontinued. For integration into new products, we strongly recommend contacting Sharp or their authorized agents for the latest production status and specifications. Information provided is for reference only and should not be used as the sole basis for decision-making.
