AUO 24Inch Industrial LCD Display Desktop LCD with 1920x1200P Resolution 300cd/M2 Brightness and 30PIN Interface

Name: AUO 24Inch Industrial LCD Display Desktop LCD with 1920x1200P Resolution 300cd/M2 Brightness and 30PIN Interface
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: M240uan01.0
Price: 43.00 USD
Availability: InStock

Brand Name:	AUO
Model Number:	M240uan01.0
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1920*1200pixels

Style:

30PIN IPS

Brightness:

300CD/M2

Color:

16.7M

Contrast Ratio:

1000 :1

Working Life:

30K Hours

Type:

Lcm

Size:

24inch

Lamp Type:

WLED

Voltage:

12.0V

Packaging Details:

Industrial packing

Highlight:

24Inch Industrial lcd

300cd/M2 Industrial lcd

M240UAN01.0 AUO Industrial lcd

Product Description

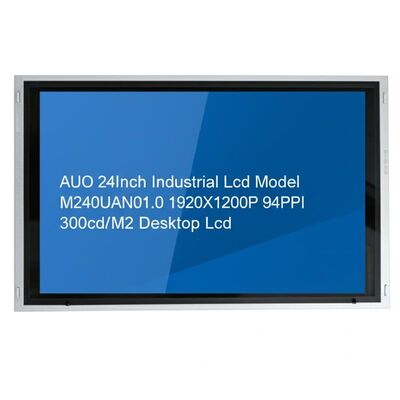

AUO 24-Inch Industrial LCD Display M240UAN01.0

The M240UAN01.0 is a 24.0-inch diagonal a-Si TFT-LCD display panel from AU Optronics Corp., featuring WUXGA resolution (1920*1200) with 94 PPI pixel density. This industrial-grade LCD module includes an integrated WLED backlight system and is designed for demanding applications including desktop monitors and industrial equipment.

Key Features

24-inch WUXGA display with 1920*1200 resolution
300 cd/m² typical brightness with 1000:1 contrast ratio
WLED backlight with 30,000-hour lifespan
sRGB color gamut supporting 16.7 million colors
Wide viewing angles: 89/89/89/89 (CR≥10)
LVDS interface with 30-pin connector
TCO 7.0 compliance and matte anti-glare surface

Technical Specifications

Brand	AUO
Model Number	M240UAN01.0
Diagonal Size	24.0 inches
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)*1200, WUXGA, 94 PPI
Active Area	518.4mm * 324.0mm
Brightness	300 cd/m² (Typical)
Contrast Ratio	1000:1 (Typical)
Response Time	14ms (Typical, G to G)
Signal Interface	LVDS (2 ch, 8-bit), 30-pin connector
Input Voltage	12.0V (Typical)
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C
Panel Weight	2.53 kg (Typical)

Environmental Specifications

Designed for industrial environments with operating temperature range of 0°C to 50°C and storage temperature range of -20°C to 60°C. Maximum vibration tolerance of 1.5G (14.7 m/s²).

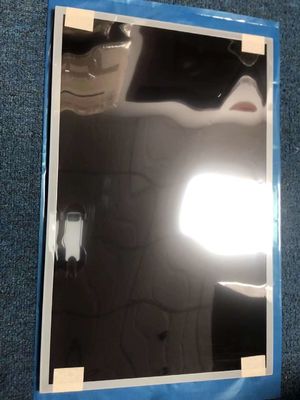

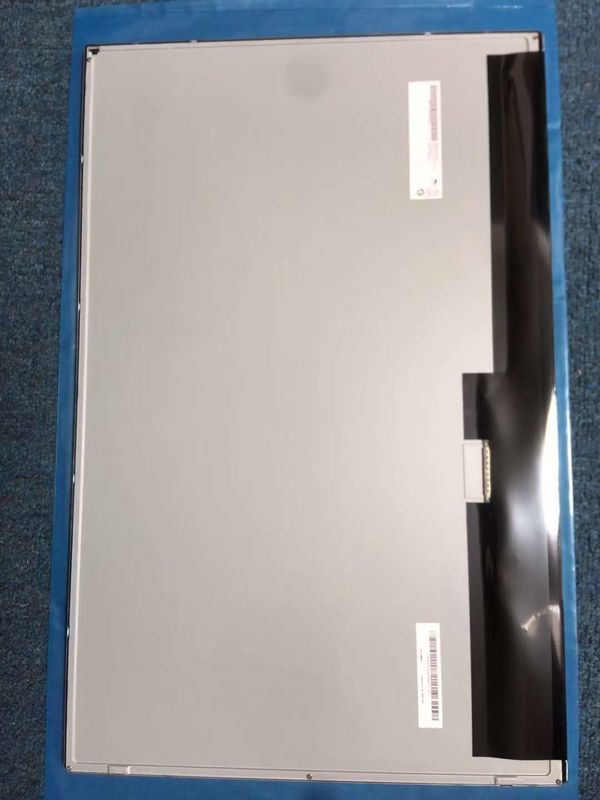

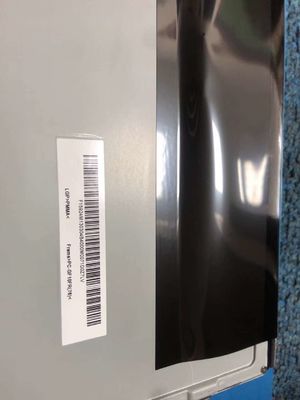

Product Images

Note: This model entered mass production in Q3 2018 and is currently in production. For the latest production status and detailed specifications, we recommend contacting AU Optronics or their authorized agents directly.
