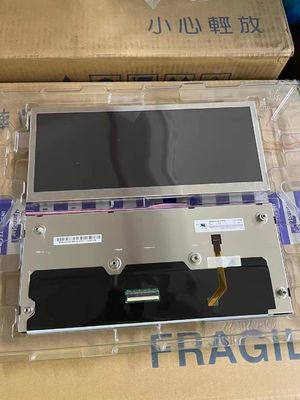

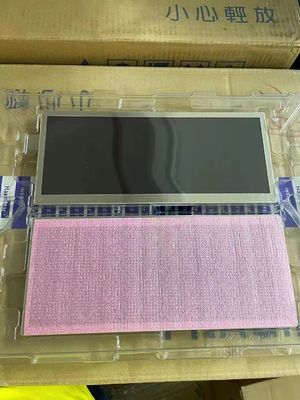

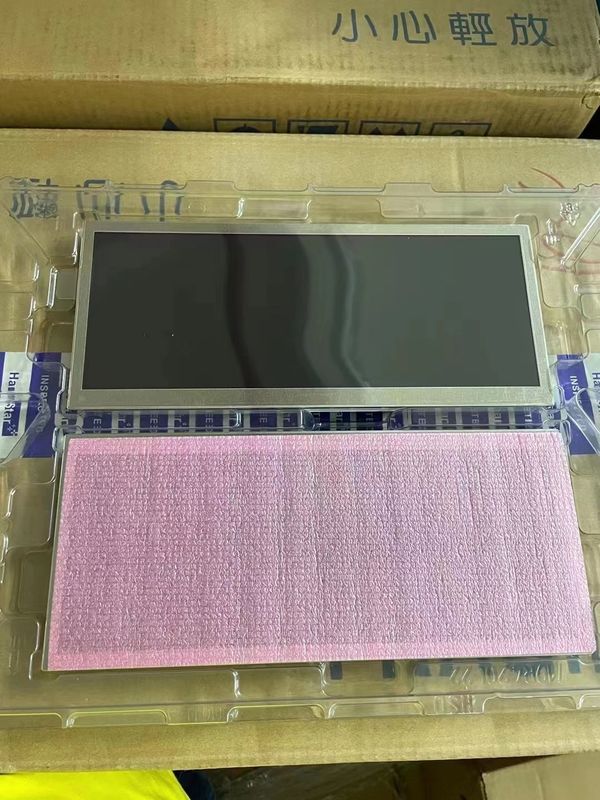

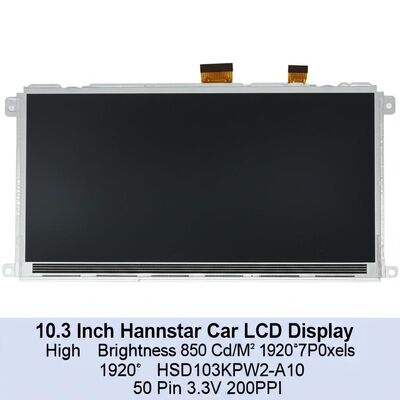

10.3 Inch Hannstar Car LCD Display with 850 Cd/M² High Brightness and 1920*720 Pixels Resolution

Name: 10.3 Inch Hannstar Car LCD Display with 850 Cd/M² High Brightness and 1920*720 Pixels Resolution
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: HSD103KPW2-A10
Price: 30.00 USD
Availability: InStock

Brand Name:	Hannstar
Model Number:	HSD103KPW2-A10
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass

Brightness:

850ccd/m2

Resolution:

1920*720pixels

Contrast Ratio:

1000:1

Color:

16.7M

Working Life:

20k Hours

Connector:

50P

Touch Panel:

Without

Working Voltage:

3.3v

Packaging Details:

Industrial packing

Highlight:

10.3 Inch Car LCD Display

200PPI Car LCD Display

HSD103KPW2-A10 Car LCD Display

Product Description

10.3 Inch Hannstar Car LCD Display

High brightness 850 cd/m² automotive display with 1920*720 resolution, 200 PPI density, and 50-pin 3.3V interface.

Product Overview

The HSD103KPW2-A10 is a 10.3-inch diagonal a-Si TFT-LCD display panel from HannStar Display Corporation featuring an integrated WLED backlight system. This automotive-grade display operates in temperatures from -30°C to 85°C and withstands vibration levels up to 2.9G (28.4 m/s²).

Key Features

High brightness 850 cd/m² for outdoor visibility
Wide operating temperature range (-30°C to 85°C)
3G vibration resistance for automotive applications
100% sRGB color gamut
IPS Pro technology with wide viewing angles
Matte surface with anti-glare hard coating (3H)
WLED backlight with 20,000-hour lifespan

Technical Specifications

Brand	HannStar
Model Number	HSD103KPW2-A10
Diagonal Size	10.3 inches
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)*720 (200 PPI)
Active Area	243.648mm * 91.368mm
Outline Dimensions	259.8mm * 112mm * 15.7mm
Brightness	850 cd/m² (Typical)
Contrast Ratio	1000:1 (Typical)
Viewing Angle	85/85/85/85 (CR≥10)
Response Time	35ms maximum (Tr+Td)
Display Colors	16.7 million (100% sRGB)
Signal Interface	LVDS (2 ch, 8-bit), 50-pin connector
Input Voltage	3.3V (Typical)
Operating Temperature	-30°C to 85°C
Storage Temperature	-30°C to 85°C
Vibration Level	2.9G (28.4 m/s²)
Panel Weight	360g (Typical)

Note: This model entered mass production in Q3 2017 and is currently in production. For the latest production status and detailed specifications, we strongly recommend contacting HannStar or their authorized agents directly.
