| Brand Name: | Hannstar |
| Model Number: | HSD103KPW2-A10 |
| MOQ: | 10pcs |
| Price: | Negotiation |
| Packaging Details: | Industrial packing |
| Payment Terms: | T/T,W, Western Union, MoneyGram |

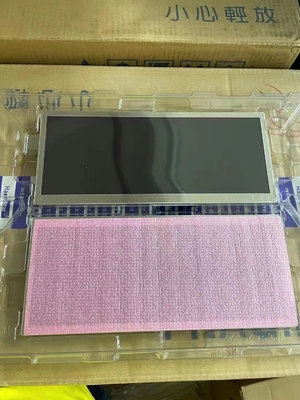

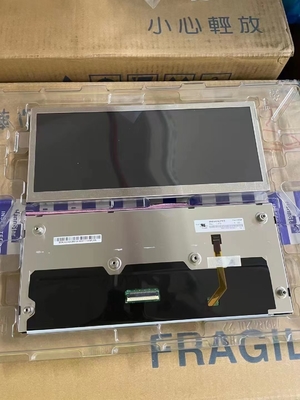

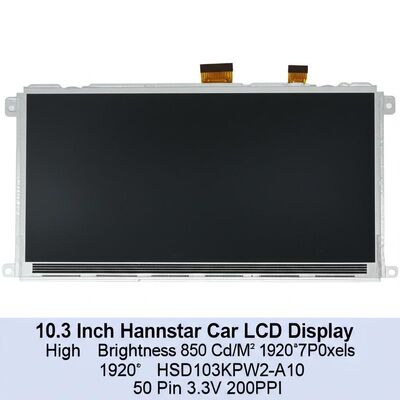

10.3 Inch Hannstar Car LCD Display High Brightness 850 Cd/M² 1920*720Pixels HSD103KPW2-A10 50 Pin 3.3V 200PPI
HSD103KPW2-A10 is a 10.3" diagonal a-Si TFT-LCD display panel product from HannStar Display Corporation (hereafter called HannStar), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 85°C , a storage temperature range of -30 ~ 85°C , and the maximal vibration level of 2.9G (28.4 m/s²). It's general features are summarized by Einklcd in the following: sRGB, Wide Temperature, 3G Vibration, Hight Brightness, WLED Backlight, Bar Display, U/D,L/R Reverse, Matte . Based on its features, Panelook recommend that this model be applied to Outdoor High Brightness, Automotive Display etc. According to the information stored in einklcd this model mass production on Q3, 2017, Now this model is in production. We inputted this model's specification on Jul 19 2017 for the first time, and the latest update on Dec 29 2021. If you want to embed the LCM in your future product, einklcd strongly recommend that you should contact with HannStar or it's agent to learn lateast production and specification detail of HSD103KPW2-A10. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
| Outline Size | 259.8(W)×112(H) ×15.7(D) mm | Surface | Antiglare, Hard coating (3H) |
|---|---|---|---|
| Brightness | 850 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Display Mode | IPS Pro, Normally Black, Transmissive |
| Best View on | Symmetry | Response Time | 35 (Max.)(Tr+Td) |
| Display Colors | 16.7M 100% sRGB | Lamp Type | 9S4P WLED , 20K hours , Without Driver |
| Frequency | 60Hz | Touch Screen | Without |
| Panel Weight | 360g (Typ.) | Application | |
| Signal Interface | LVDS (2 ch, 8-bit) , 50 pins Connector | ||
| Input Voltage | 3.3V (Typ.) | ||
| Environment |
Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²) |
||
|
|
| Brand Name: | Hannstar |
| Model Number: | HSD103KPW2-A10 |
| MOQ: | 10pcs |
| Price: | Negotiation |
| Packaging Details: | Industrial packing |
| Payment Terms: | T/T,W, Western Union, MoneyGram |
10.3 Inch Hannstar Car LCD Display High Brightness 850 Cd/M² 1920*720Pixels HSD103KPW2-A10 50 Pin 3.3V 200PPI
HSD103KPW2-A10 is a 10.3" diagonal a-Si TFT-LCD display panel product from HannStar Display Corporation (hereafter called HannStar), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 85°C , a storage temperature range of -30 ~ 85°C , and the maximal vibration level of 2.9G (28.4 m/s²). It's general features are summarized by Einklcd in the following: sRGB, Wide Temperature, 3G Vibration, Hight Brightness, WLED Backlight, Bar Display, U/D,L/R Reverse, Matte . Based on its features, Panelook recommend that this model be applied to Outdoor High Brightness, Automotive Display etc. According to the information stored in einklcd this model mass production on Q3, 2017, Now this model is in production. We inputted this model's specification on Jul 19 2017 for the first time, and the latest update on Dec 29 2021. If you want to embed the LCM in your future product, einklcd strongly recommend that you should contact with HannStar or it's agent to learn lateast production and specification detail of HSD103KPW2-A10. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
| Outline Size | 259.8(W)×112(H) ×15.7(D) mm | Surface | Antiglare, Hard coating (3H) |
|---|---|---|---|
| Brightness | 850 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Display Mode | IPS Pro, Normally Black, Transmissive |
| Best View on | Symmetry | Response Time | 35 (Max.)(Tr+Td) |
| Display Colors | 16.7M 100% sRGB | Lamp Type | 9S4P WLED , 20K hours , Without Driver |
| Frequency | 60Hz | Touch Screen | Without |
| Panel Weight | 360g (Typ.) | Application | |
| Signal Interface | LVDS (2 ch, 8-bit) , 50 pins Connector | ||
| Input Voltage | 3.3V (Typ.) | ||
| Environment |
Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²) |
||
