BOE 8 Inch Industrial LCD Display TFT-LCD Panel with 800*600pixels Resolution 250 cd/m² Brightness and 16.7M Color

Name: BOE 8 Inch Industrial LCD Display TFT-LCD Panel with 800*600pixels Resolution 250 cd/m² Brightness and 16.7M Color
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: GT080S0M-N12
Price: 43.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	GT080S0M-N12
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

600*800pixels

Style:

50PIN IPS

Brightness:

250cd/m2

Color:

16.7m

Contrast Ratio:

500 :1

Working Life:

15K Hours

Type:

Lcm

Size:

8inch

Lamp Type:

WLED

Voltage:

3.3V

Signal Interface:

A-Si TFT-LCD, LCM 50pin

Packaging Details:

Industrial packing

Highlight:

8 Inch Industrial Tft Display

GT080S0M-N12 Industrial Tft Display

GT080S0M-N12 Industrial Lcd Panel

Product Description

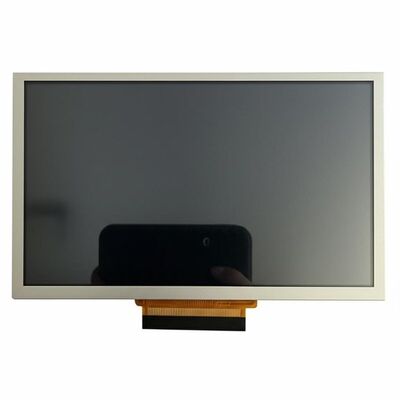

BOE GT080S0M-N12 8-Inch Industrial TFT Display

High-performance 8.0-inch industrial LCD panel featuring 800*600 SVGA resolution, 125 PPI density, and 16.7 million color support. Designed for demanding industrial applications with wide operating temperature range and robust construction.

Product Overview

The GT080S0M-N12-1QP1 is an 8.0-inch diagonal a-Si TFT-LCD display panel manufactured by BOE Technology Group Co., Ltd. This industrial-grade panel includes an integrated WLED backlight system and operates within a wide temperature range of -20°C to 70°C.

Key Features

8.0-inch diagonal display with 800*600 SVGA resolution
125 PPI pixel density for sharp image quality
16.7 million color support with 50% NTSC color gamut
250 cd/m² typical luminance
Wide operating temperature: -20°C to 70°C
500:1 contrast ratio
75/75/75/75 viewing angles (CR≥10)
Parallel RGB interface with 50-pin FPC connector
Matte anti-glare surface treatment

Technical Specifications

Brand	BOE
Model Number	GT080S0M-N12-1QP1
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)*600, SVGA
Active Area	162mm (W) * 121.5mm (H)
Outline Dimensions	183mm * 141mm * 3.65mm (HVD)
Bezel Opening	164.85mm (W) * 124.24mm (H)
Luminance	250 cd/m² (Typical)
Contrast Ratio	500:1 (Typical)
Response Time	20ms (Typical, Tr+Td)
Viewing Angle	75/75/75/75 (Typical, CR≥10)
Color Depth	262K/16.2M, 50% NTSC
Backlight	3S6P WLED, No Driver
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	Parallel RGB (1 channel, 6/8-bit), FPC 50 pins
Voltage Supply	3.3V/10V/21V/-7.78V (Typical) (VDD/AVDD/VGH/VGL)
Operating Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C

Display Images

Important Note: This model entered mass production in Q4 2022 and is currently in production. For integration into your products, we strongly recommend contacting BOE or their authorized agents for the latest production status and specification details. The information provided is for reference only and should not be used as the sole basis for decision-making.
