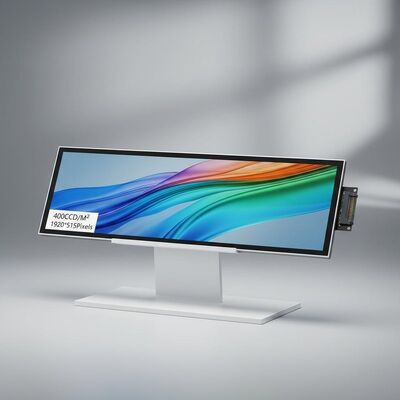

400CCD/M2 Stretched Bar LCD Display with 1920*515Pixels Resolution and 30Pin Connector

400CCD/M2 Stretched Bar LCD Display with 1920*515Pixels Resolution and 30Pin Connector

400CCD/M2 Stretched Bar LCD Display with 1920*515Pixels Resolution and 30Pin Connector

Brand Name: BOE
Model Number: NV126B5M-N42
MOQ: 10pcs
Price: Negotiation
Payment Terms: T/T,W,Western Union,MoneyGram
Supply Ability: 3000pcs per week
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
Rohs,CE,FCC
Quality:
Brand New Original
Package:
Original Industrial Packing
Material:
Glass Led
Color:
16.7M
Model:
A-Si TFT-LCD, LCM
Style:
High Resolution 1920*515pixels
Resolution:
1920*515PIXELS
Brightness:
400CCD/M2
Connector:
30Pin
Working Life:
15k Hours
Contrast Ratio:
1200:1
Working Voltage:
3.3V
Packaging Details:
Industrial packing
Highlight:

NV126B5M-N42 Stretched Bar Lcd Display

,

High Resolution Stretched Bar Lcd Display

,

NV126B5M-N42 Stretched Lcd Display

Product Description
400CCD/M2 Stretched Bar LCD Display NV126B5M-N42
1920 * 515 Pixels, 157 PPI, 30 Pin, 3.3V Operation
400CCD/M2 Stretched Bar LCD BOE Display NV126B5M-N42 - A 12.6-inch diagonal a-Si TFT-LCD display panel with integrated WLED backlight system and LED driver. This stretched bar display features high brightness, wide viewing angles, and robust environmental specifications suitable for industrial and commercial applications.
Key Features
  • 12.6-inch diagonal stretched bar display format
  • High resolution: 1920(RGB)*515 pixels at 157 PPI
  • Bright 400 cd/m² display with 1200:1 contrast ratio
  • WLED backlight with 15,000-hour lifespan
  • eDP 1.2 interface with 30-pin connector
  • Wide operating temperature: 0°C to 60°C
  • Antiglare surface with hard coating
Technical Specifications
BrandBOE
Model P/NNV126B5M-N42
Diagonal Size12.6 inches
Panel Typea-Si TFT-LCD, LCM
Resolution1920(RGB)*515, 157 PPI
Active Area309.312(W) * 82.9665(H) mm
Outline Size315.61(W) * 94.02(H) * 5(D) mm
SurfaceAntiglare (Haze 40%), Hard coating
Brightness400 cd/m² (Typical)
Contrast Ratio1200:1 (Typical)
Viewing Angle85/85/85/85 (Typical, CR≥10)
Display ModeADS, Normally Black, Transmissive
Response Time30ms (Typical, Tr+Td)
Display Colors16.7M, 45% NTSC
Backlight8S6P WLED, 15K hours, With LED Driver
Refresh Rate60Hz
Signal InterfaceeDP (2 Lanes), eDP1.2, HBR1 (2.7G/lane), 30-pin Connector
Input Voltage3.3V (Typical)
Operating Temperature0°C to 60°C
Storage Temperature-20°C to 65°C
Application Examples
Ideal for laptop displays, stretched bar LCD applications, and specialized display solutions requiring wide-format screens.

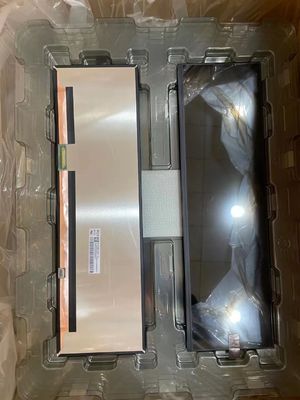

400CCD/M2 Stretched Bar LCD Display with 1920*515Pixels Resolution and 30Pin Connector 0 400CCD/M2 Stretched Bar LCD Display with 1920*515Pixels Resolution and 30Pin Connector 1 400CCD/M2 Stretched Bar LCD Display with 1920*515Pixels Resolution and 30Pin Connector 2
Note: Production status information is for reference only. For the latest production and specification details, please contact BOE or their authorized distributors.
