BOE 10.1 Inch Industrial LCD Display NV101WXM-N01 with 1280×800 WXGA Resolution 400 cd/m² Brightness and 40 Pin LVDS Interface

Name: BOE 10.1 Inch Industrial LCD Display NV101WXM-N01 with 1280×800 WXGA Resolution 400 cd/m² Brightness and 40 Pin LVDS Interface
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: NV101WXM-N01
Price: 43.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	NV101WXM-N01
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1280*800pixels

Style:

40PIN IPS

Brightness:

400cd/m2

Color:

16.7m

Contrast Ratio:

800 :1

Working Life:

15K Hours

Type:

Lcm

Size:

10.1inch

Lamp Type:

WLED

Voltage:

3.3V

Signal Interface:

Lvds 40pin

Packaging Details:

Industrial packing

Highlight:

10.1 Inch Industrial Lcd Display

NV101WXM-N01 Industrial Lcd Display

1280×800 Industrial Lcd Panel

Product Description

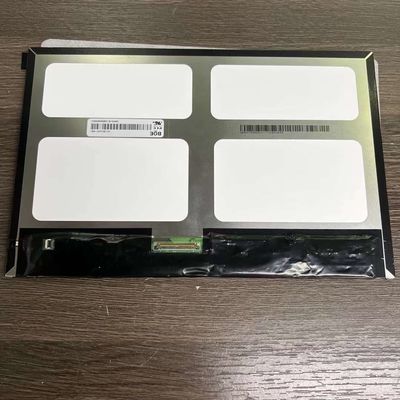

10.1 Inch NV101WXM-N01 Industrial LCD Display

Product Overview

BOE 10.1-inch industrial LCD panel featuring 1280*800 WXGA resolution, 149PPI pixel density, 16.7 million colors, and 400 cd/m² brightness. This 40-pin display operates at 3.3V and is designed for demanding industrial applications.

Key Specifications

Brand	BOE
Model Number	NV101WXM-N01
Diagonal Size	10.1 inches
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)*800, WXGA 149PPI
Active Area	216.96(W) * 135.6(H) mm
Outline Dimensions	228.3(W) * 149.05(H) * 4.7(D) mm
Brightness	400 cd/m² (Typical)
Contrast Ratio	800:1 (Typical)
Viewing Angle	85/85/85/85 (Left/Right/Up/Down)
Display Colors	16.7M (48% NTSC)
Response Time	30ms (Typical)
Signal Interface	LVDS (2 ch, 8-bit), 40 pins Connector
Input Voltage	3.3V (Typical)
Operating Temperature	0°C ~ 50°C
Storage Temperature	-20°C ~ 60°C
Weight	400g (Maximum)

Advanced Features

WLED backlight system with integrated LED driver
ADS display technology with normally black, transmissive mode
Multiple refresh rate support: 60Hz, 120Hz, and 240Hz with embedded MEMC circuit
Antireflection surface treatment
Pixel format: RGB vertical stripe

Applications

Ideal for industrial equipment, educational systems, and entertainment devices. Specifically recommended for running machines and similar demanding environments.

Production status information is for reference only. Contact BOE or authorized distributors for latest production details and specifications before integration.
