Product Details:
|
| Quality: | Brand New Original | Package: | Original Industrial Packing |
|---|---|---|---|
| Resolution: | 1024*768pixels | Style: | 30PIN IPS |
| Brightness: | N/a | Color: | 16.7 |
| Contrast Ratio: | 1000 :1 | Working Life: | 70K Hours |
| Type: | Lcm | Size: | 10.4inch |
| Lamp Type: | WLED | Voltage: | 3.3V |
| High Light: | 10.4 Inch Industrial Lcd Screen,GV104X0M-N10 Industrial Lcd Screen,1024×768 Industrial Lcd Panel |
||

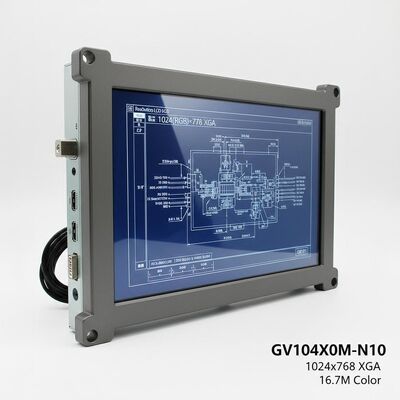

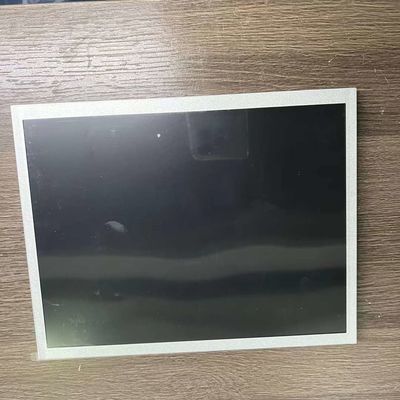

BOE 10.4inch Industrial lcd panel LCD Panel GV104X0M-N10 1024(RGB)×768 XGA 123PPI 16.7M color
BOE Technology Group Co., Ltd. (hereafter called BOE) GV104X0M-N10 is a 10.4 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . It's general features are summarized by einklcd in the following: WLED Backlight . Based on its features, einklcd recommend that this model be applied to Industrial etc.Suggest HX8282A + HX8696E*2 driver IC. According to the information stored in einklcd this model mass production on Q1, 2021, Now this model is in production. We inputted this model's specification on Nov 25 2020 for the first time, and the latest update on Apr 6 2022. If you want to embed GV104X0M-N10 LCM in your future product, Einklcd strongly recommend that you should contact with BOE or it's distributor to learn lateast production and specification detail. The GV104X0M-N10 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making. Brand
| Brightness |
|---|
| Viewing Angle |
| Best View on |
| Display Colors |
| Frequency |
| Weight |
| - |
| 85/85/85/85 (Typ.)(CR≥10) |
| Symmetry |
| 16.7M 70% NTSC |
| - |
| - |
| Contrast Ratio |
| Display Mode |
| Response Time |
| Lamp Type |
| Touch Screen |
| Application |
| 1100:1 (Typ.) (TM) |
| ADS, Normally Black, Transmissive |
| 30 (Typ.)(Tr+Td) |
| WLED |
| Without |
| Environment |
Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C
|
|---|
