10.4 Inch Industrial LCD Display with 1024×768 XGA Resolution and 16.7M Color TFT-LCD Panel

Name: 10.4 Inch Industrial LCD Display with 1024×768 XGA Resolution and 16.7M Color TFT-LCD Panel
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: GV104X0M-N10
Price: 43.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	GV104X0M-N10
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1024*768pixels

Style:

30PIN IPS

Brightness:

N/a

Color:

16.7

Contrast Ratio:

1000 :1

Working Life:

70K Hours

Type:

Lcm

Size:

10.4inch

Lamp Type:

WLED

Voltage:

3.3V

Packaging Details:

Industrial packing

Highlight:

10.4 Inch Industrial Lcd Screen

GV104X0M-N10 Industrial Lcd Screen

1024×768 Industrial Lcd Panel

Product Description

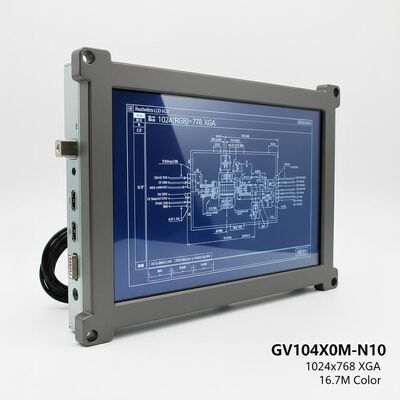

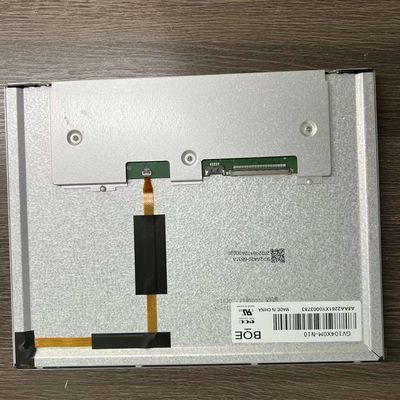

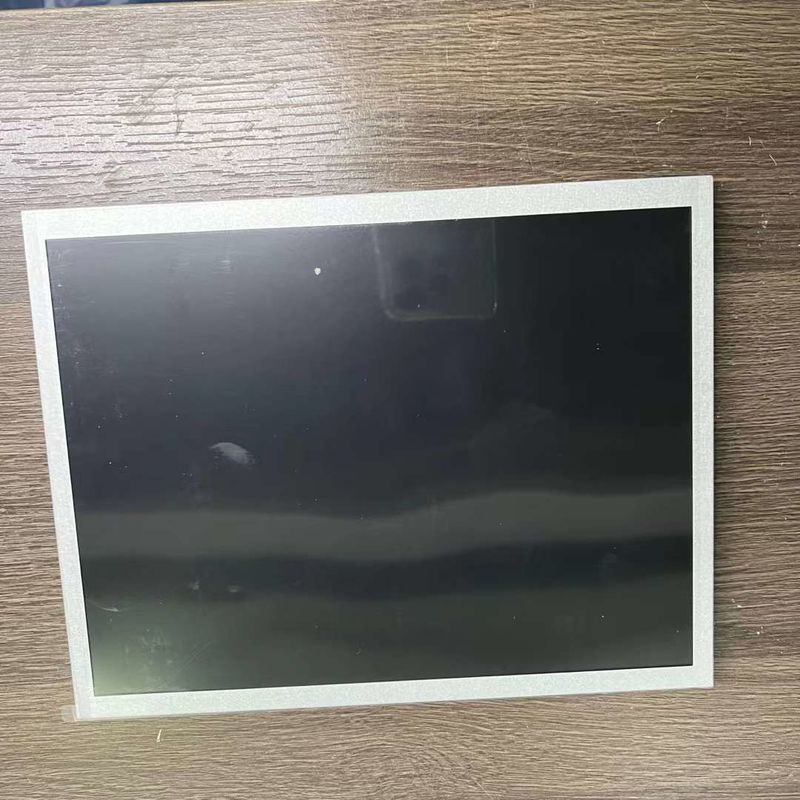

10.4 Inch Industrial LCD Screen GV104X0M-N10

Product Overview

BOE GV104X0M-N10 is a 10.4-inch diagonal a-Si TFT-LCD display panel with integrated WLED backlight system, designed specifically for industrial applications. This XGA resolution panel delivers 1024(RGB)*768 pixels with 123 PPI density and supports 16.7 million colors.

Key Features

10.4-inch diagonal active matrix TFT-LCD display
XGA resolution: 1024(RGB)*768 pixels (123 PPI)
16.7 million color support with 70% NTSC color gamut
WLED backlight system (without touch screen)
Wide operating temperature: -20°C to 70°C
High contrast ratio: 1100:1 (typical)
ADS technology with normally black, transmissive display mode

Technical Specifications

Brand	BOE
Model Number	GV104X0M-N10
Diagonal Size	10.4 inches
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)*768, XGA (123 PPI)
Active Area	210.432mm (W) * 157.824mm (H)
Viewing Angle	85/85/85/85 (CR≥10, typical)
Display Colors	16.7M (70% NTSC)
Contrast Ratio	1100:1 (typical)
Response Time	30ms (typical, Tr+Td)
Backlight	WLED
Touch Screen	Without
Operating Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C

Application & Compatibility

This industrial-grade LCD panel is ideal for industrial equipment, control systems, and specialized display applications. Suggested driver IC: HX8282A + HX8696E*2.

Note: This model entered mass production in Q1 2021 and is currently in production. For the latest production status and detailed specifications, please contact BOE or their authorized distributors. Specifications are subject to change without notice.
