12.1 Inch Industrial LCD Display Panel with 1280X800P Resolution and 400cd/M2 Brightness

Name: 12.1 Inch Industrial LCD Display Panel with 1280X800P Resolution and 400cd/M2 Brightness
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: EV121WXM-N10
Price: 43.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	EV121WXM-N10
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1280*800pixels

Style:

20PIN IPS

Brightness:

1100CD/M2

Color:

16.7M

Contrast Ratio:

1200 :1

Working Life:

50K Hours

Type:

Lcm

Size:

12.1inch

Lamp Type:

WLED

Voltage:

3.3V

Packaging Details:

Industrial packing

Highlight:

12.1 Inch Industrial Lcd Display

EV121WXM-N10 Industrial Lcd Display

1280X800P Industrial Lcd Panel

Product Description

BOE EV121WXM-N10 12.1" Industrial LCD Display Panel

High-performance 12.1-inch TFT-LCD display panel featuring 1280×800 WXGA resolution, 400 cd/m² brightness, and industrial-grade reliability. Designed for demanding applications in industrial automation and medical imaging environments.

Key Specifications

Brand	BOE
Model Number	EV121WXM-N10
Diagonal Size	12.1 inches
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×800 (WXGA), 124 PPI
Active Area	261.12 × 163.2 mm
Brightness	400 cd/m² (Typical)
Contrast Ratio	1200:1 (Typical)
Viewing Angle	85/85/85/85 (CR≥10)
Response Time	25 ms (Typical)
Color Depth	16.7M colors, 48% NTSC
Backlight System	WLED, 50K hours lifespan, With LED Driver
Interface	LVDS (1 channel, 8-bit), 20-pin connector
Operating Voltage	3.3V (Typical)
Refresh Rate	60Hz
Touchscreen	Without touch screen
Weight	556g (Typical)

Environmental Specifications

Operating Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C
Vibration Resistance	1.5G (14.7 m/s²) maximum

Technical Features

Advanced Super Dimension Switch (ADS) technology
Normally black, transmissive operation mode
Symmetrical viewing characteristics
Integrated WLED backlight with driver
Industrial-grade construction and reliability
Suitable for medical imaging and industrial applications

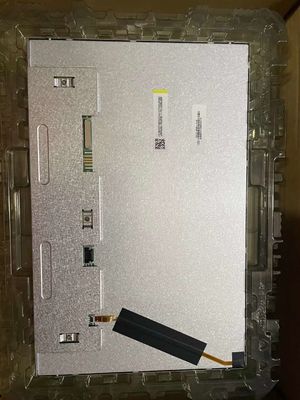

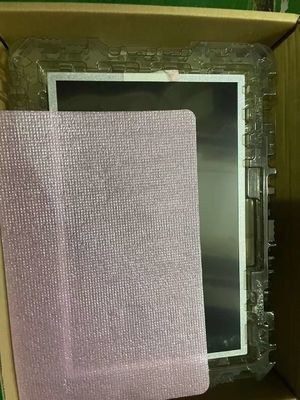

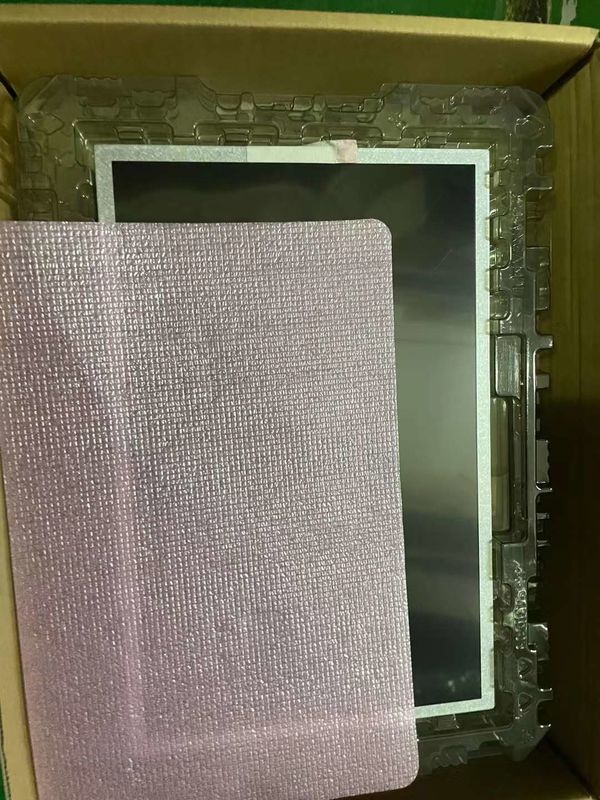

Product Images

Important Note: Production status information is for reference only. For integration into your products, please contact BOE or their authorized agents for the latest production status and detailed specifications.
