Industrial LCD Display
>
HITACHI 10inch Industrial Touch Screen Display 100 Cd/M² SX25S004 40pin

HITACHI 10inch Industrial Touch Screen Display 100 Cd/M² SX25S004 40pin

Brand Name: HITACHI
Model Number: SX25S004
MOQ: 10PCS
Price: Negotiation
Packaging Details: industrial package
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Place of Origin:
China
Certification:
CE,ROSH,UL,FCC
Material:
Glass
Voltage:
3.3 V
Brightness:
100cd
Resolution:
800*600pixels
Interface Type:
40pin LVDS
Contrast Ratio:
50:1
Working Life:
50k Hour
Light Source:
WLED
Supply Ability:
30K pcs per month
Highlight:

HITACHI Industrial Touch Screen Display

,

10inch Industrial Touch Screen Display

,

40pin Industrial Lcd Panel

Product Description

HITACHI 10inch lcd module 800*600pixels 100 cd/m² SX25S004 40pin industrial lcd panel



The SX25S004 is a 10.0 inch diagonal CSTN-LCD display panel product from Kaohsiung Hitachi Electronics Co., Ltd. (hereafter called HITACHI), with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of 5 ~ 40°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.2G (11.76 m/s²). It's general features are summarized by Einklcd in the following: 120Hz, Matte . Based on its features, Einklcd recommend that this model be applied to Industrial etc. According to the information stored in Einklcd this model mass production on Q3, 1999, Now this model is discontinued. We inputted this model's specification on Dec 27 2012 for the first time, and the latest update on Dec 13 2019. If you want to embed SX25S004 LCM in your future product, Einklcd strongly recommend that you should contact with HITACHI or it's agent to learn lateast production and specification detail. The SX25S004 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.





HITACHI 10inch Industrial Touch Screen Display 100 Cd/M² SX25S004 40pin 0

  • Brand
    HITACHI
  • Model
    SX25S004
  • Diagonal Size
    10.0 inch
  • Type
    CSTN-LCD, LCM
  • Pixel Format
    800(RGB)×600 [SVGA] 100PPI
  • Configuration
    RGB Vertical Stripe
  • Active Area
    202.8(H)×152.1(V) mm
  • Outline Dim.
    236(H)×168(V) ×6.3(D) mm
  • Bezel Area
    207.0(H)×156.0(V) mm
  • Treatment
    Antiglare, Hard coating (3H)
  • Luminance
    100 cd/m² (Typ.)
  • Contrast Ratio
    50:1 (Typ.) (TM)
  • View Direction
    12 o'clock
  • Response Time
    170/130 (Typ.)(Tr/Td)
  • Viewing Angle
    40 (Typ.)(CR≥2, Φ2-Φ1)
  • Operating Mode
    STN, Normally Black, Transmissive
  • Support Color
    Color 36% NTSC
  • Light Source
    CCFL [1 pcs] , W/O Driver
  • Weight
    330g (Typ.)
  • Designed For

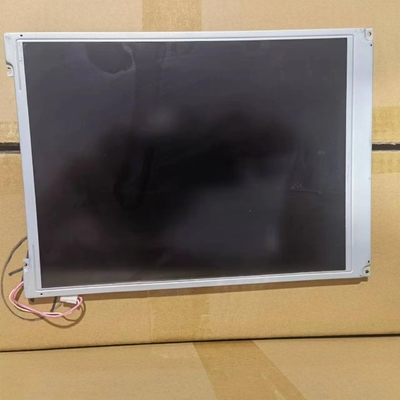

    HITACHI 10inch Industrial Touch Screen Display 100 Cd/M² SX25S004 40pin 1
  • Frame Rate
    120Hz
  • Touch Panel
    Without
  • Interface Type
  • Parallel Data (2ch, 8-bit) , 40 pins Connector
  • Power Supply
  • 3.3V (Typ.)
  • Environment
  • Operating Temperature: 5 ~ 40 °C ; Storage Temperature: -20 ~ 60 °C

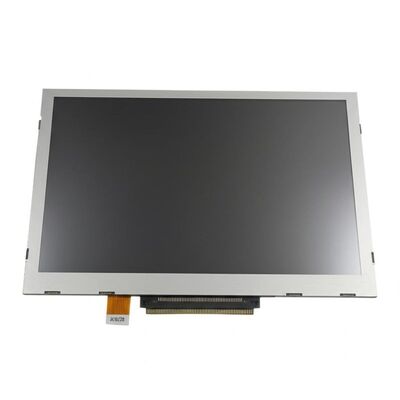

HITACHI 10inch Industrial Touch Screen Display 100 Cd/M² SX25S004 40pin 2
