HITACHI 10inch Industrial LCD Display with 100 Cd/M² Brightness and 40pin LVDS Interface SX25S004

Name: HITACHI 10inch Industrial LCD Display with 100 Cd/M² Brightness and 40pin LVDS Interface SX25S004
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: SX25S004
Price: 43.00 USD
Availability: InStock

Brand Name:	HITACHI
Model Number:	SX25S004
MOQ:	10PCS
Price:	Negotiation
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	30K pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROSH,UL,FCC

Material:

Glass

Voltage:

3.3 V

Brightness:

100cd

Resolution:

800*600pixels

Interface Type:

40pin LVDS

Contrast Ratio:

50:1

Working Life:

50k Hour

Light Source:

WLED

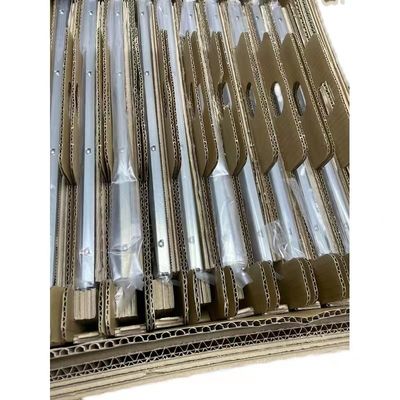

Packaging Details:

industrial package

Highlight:

HITACHI Industrial Touch Screen Display

10inch Industrial Touch Screen Display

40pin Industrial Lcd Panel

Product Description

HITACHI 10-inch Industrial Touch Screen Display 100 Cd/M² SX25S004 40pin

HITACHI 10-inch LCD Module 800*600 pixels 100 cd/m² SX25S004 40pin Industrial LCD Panel

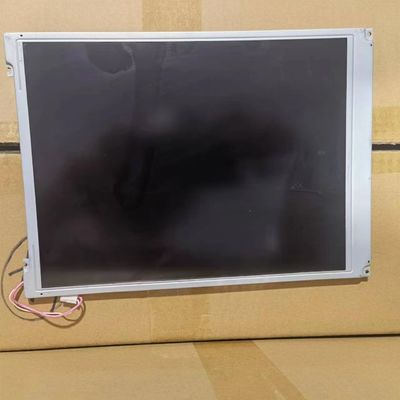

The SX25S004 is a 10.0-inch diagonal CSTN-LCD display panel from Kaohsiung Hitachi Electronics Co., Ltd., featuring an integral CCFL backlight system. This industrial-grade panel operates within a temperature range of 5~40°C and can withstand storage temperatures of -20~60°C with a maximum vibration level of 1.2G (11.76 m/s²).

Note: This model entered mass production in Q3 1999 and is currently discontinued. Specifications were last updated on December 13, 2019.

Product Specifications

Brand	HITACHI
Model	SX25S004
Diagonal Size	10.0 inch
Type	CSTN-LCD, LCM
Pixel Format	800(RGB)*600 [SVGA] 100PPI
Configuration	RGB Vertical Stripe
Active Area	202.8(H)*152.1(V) mm
Outline Dimensions	236(H)168(V)6.3(D) mm
Bezel Area	207.0(H)*156.0(V) mm
Surface Treatment	Antiglare, Hard coating (3H)
Luminance	100 cd/m² (Typ.)
Contrast Ratio	50:1 (Typ.) (TM)
View Direction	12 o'clock
Response Time	170/130 (Typ.)(Tr/Td)
Viewing Angle	40 (Typ.)(CR≥2, Φ2-Φ1)
Operating Mode	STN, Normally Black, Transmissive
Color Support	Color 36% NTSC
Light Source	CCFL [1 pcs], Without Driver
Weight	330g (Typ.)
Frame Rate	120Hz
Touch Panel	Without
Interface Type	Parallel Data (2ch, 8-bit), 40 pins Connector
Power Supply	3.3V (Typ.)
Operating Environment	Operating Temperature: 5~40°C; Storage Temperature: -20~60°C

Important Notice: Einklcd strongly recommends contacting HITACHI or their authorized agents for the latest production status and specification details before integrating this model into your products. The production status information provided on this website is for reference only and should not be used as the sole basis for decision-making.
