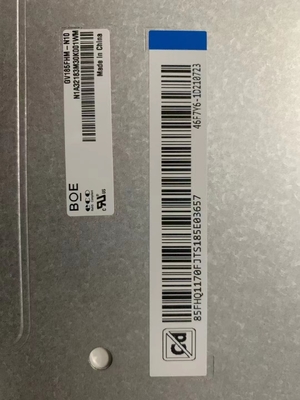

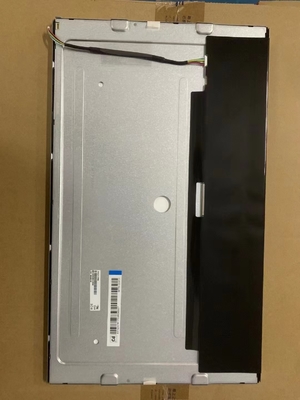

BOE 18.5inch lcd module 1920*1080pixels 350 cd/m² GV185FHM-N10-3M30 30pin industrial lcd panel

BOE Technology Group Co., Ltd. (hereafter called BOE) GV185FHM-N10-3M30 is a 18.5 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by Einklcd in the following: Wide Temperature, WLED Backlight, With LED Driver, Upside I/F, Matte . Based on its features, Einklcd recommend that this model be applied to Industrial etc. According to the information stored in Einklcd this model mass production on Q2, 2020, Now this model is in production. There are 14 items stock and 12 suppliers of this model on Panelook. We inputted this model's specification on Jun 30 2021 for the first time, and the latest update on Jul 22 2021. If you want to embed GV185FHM-N10-3M30 LCM in your future product, Panelook strongly recommend that you should contact with BOE or it's distributor to learn lateast production and specification detail. The GV185FHM-N10-3M30 production status marked on Panelook.com is for reference only and should not be used as the basis for the user's decision making.

• BrandBOE
• ModelGV185FHM-N10-3M30

• Diagonal Size18.5 inch
• Typea-Si TFT-LCD, LCM

• Pixel Format1920(RGB)×1080 [FHD] 119PPI
• ConfigurationRGB Vertical Stripe

• Active Area408.96(H)×230.04(V) mm
• Outline Dim.430.4(H)×254.6(V) ×12.5(D) mm

• Bezel Area410.96(H)×232.04(V) mm
• TreatmentAntiglare (Haze 25%), Hard coating (3H)

• Luminance350 cd/m² (Typ.)
• Contrast Ratio1200:1 (Typ.) (TM)

• View DirectionSymmetry
• Response Time30 (Typ.)(Tr+Td)

• Viewing Angle85/85/85/85 (Typ.)(CR≥10)
• Operating ModeADS, Normally Black, Transmissive

• Support Color16.7M 70% NTSC
• Light SourceWLED [11S4P] , With LED Driver

• Weight1.80Kgs (Typ.)
• Designed For

• Frame Rate60Hz
• Touch PanelWithout

• Interface Type
• LVDS (2 ch, 8-bit) , 30 pins Connector

• Power Supply
• 5.0V (Typ.)

• Environment
• Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C
