Sharp LM130SS1T611 13 Inch Industrial LCD Display with 800×600 Resolution 100cd/m² Brightness and 41PIN Connector

Name: Sharp LM130SS1T611 13 Inch Industrial LCD Display with 800×600 Resolution 100cd/m² Brightness and 41PIN Connector
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: LM130SS1T611
Price: 43.00 USD
Availability: InStock

Brand Name:	SHARP
Model Number:	LM130SS1T611
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

800*600pixels

Style:

41PIN IPS

Brightness:

100CD/M2

Color:

262k

Contrast Ratio:

50 :1

Working Life:

15K Hours

Packaging Details:

Industrial packing

Highlight:

100cd/M2 Industrial LCD Display

VGA Industrial LCD Display

LM130SS1T611 industrial lcd panel

Product Description

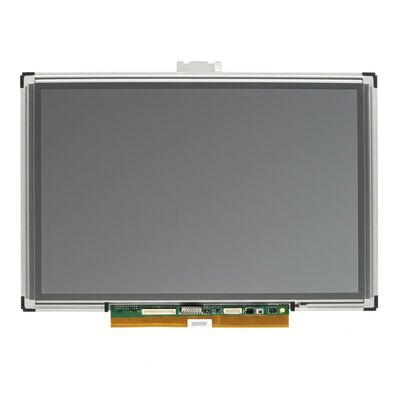

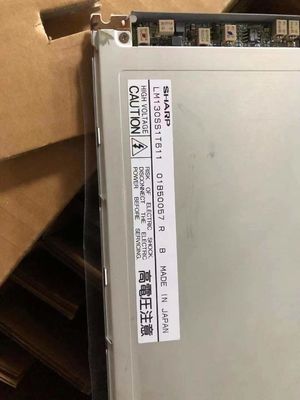

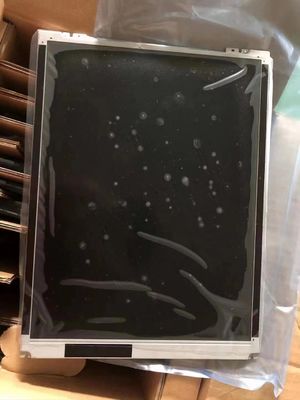

Sharp 13 Inch Industrial LCD Display LM130SS1T611

The Sharp LM130SS1T611 is a 13.0-inch diagonal CSTN-LCD display panel featuring 800*600 SVGA resolution at 76 PPI. This industrial-grade display offers 100 cd/m² brightness and 50:1 contrast ratio with a 41-pin parallel data interface.

Important Notice: This model entered mass production in Q1 2000 and is now discontinued. We strongly recommend contacting Sharp or their authorized agents for the latest production status and specifications before integrating this display into your products.

Technical Specifications

Panel Brand	Sharp
Panel Model	LM130SS1T611
Panel Size	13.0 inches
Panel Type	CSTN-LCD, LCM
Resolution	800(RGB)*600, SVGA, 76 PPI
Pixel Format	RGB Vertical Stripe
Display Area	263.98(W) * 197.98(H) mm
Bezel Opening	268(W) * 202(H) mm
Outline Size	295(W) * 218(H) * 7.5(D) mm
Brightness	100 cd/m² (Typical)
Contrast Ratio	50:1 (Typical)
Viewing Angle	30/30/15/25 (Typical, CR≥10)
Display Mode	STN, Normally Black, Transmissive
Response Time	120/20 ms (Typical, Tr/Td)
Display Colors	Color
Backlight System	1 CCFL lamp, 15,000 hours lifespan, without driver
Touch Screen	Without
Panel Weight	550±15g
Signal Interface	Parallel Data (1 channel, 8-bit), 41-pin connector
Input Voltage	3.3V (Typical)
Operating Temperature	0°C to 40°C
Storage Temperature	-25°C to 60°C

Application & Features

This industrial LCD display is designed for industrial applications requiring reliable performance in controlled environments. The panel includes an integrated CCFL backlight system and features a compact form factor suitable for embedded applications.
