NEC 15.3 Inch Industrial LCD Panel NL12876BC26-25 WXGA 1280x768pixels 470CD/M2 TFT-LCD Display

Name: NEC 15.3 Inch Industrial LCD Panel NL12876BC26-25 WXGA 1280x768pixels 470CD/M2 TFT-LCD Display
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: NL12876BC26-25
Price: 43.00 USD
Availability: InStock

Brand Name:	NCE
Model Number:	NL12876BC26-25
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1280*768pixels

Style:

20PIN IPS

Brightness:

470CD/M2

Color:

16.7M

Contrast Ratio:

700 :1

Working Life:

50K Hours

Packaging Details:

Industrial packing

Highlight:

Industrial Lcd Panel 1280x768pixels

Lcd Display Panel 470cd/M2 15.3 inch

NL12876BC26-25 tft lcd panel

Product Description

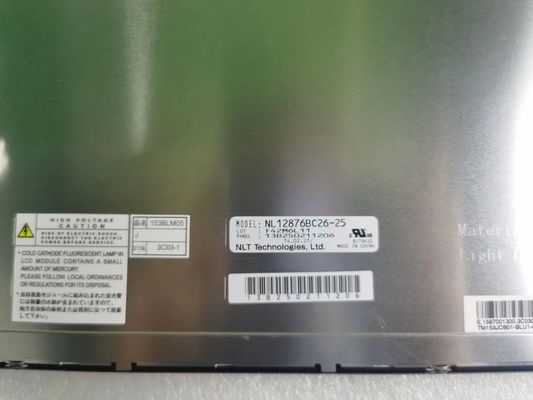

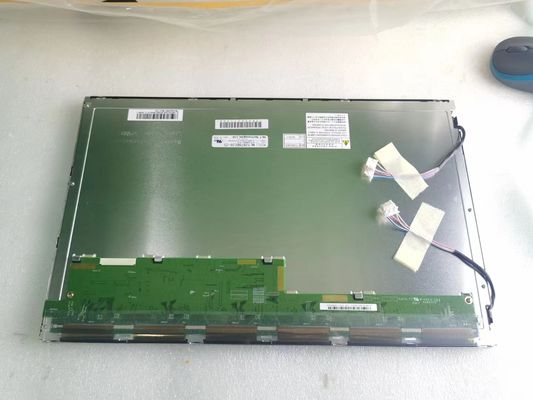

NEC 15.3 Inch Industrial LCD Panel NL12876BC26-25

The NEC NL12876BC26-25 is a 15.3-inch diagonal a-Si TFT-LCD display panel featuring WXGA resolution (1280*768 pixels) at 97 PPI. This industrial-grade panel delivers 470 cd/m² brightness with a 700:1 contrast ratio and is designed for reliable performance in demanding environments.

Key Specifications

Panel Brand: NEC

Panel Model: NL12876BC26-25

Panel Size: 15.3"

Panel Type: a-Si TFT-LCD, LCM

Resolution: 1280*768, WXGA, 97 PPI

Pixel Format: RGB Vertical Stripe

Brightness: 470 cd/m² (Typ.)

Contrast Ratio: 700:1 (Typ.)

Physical Dimensions

Measurement	Dimensions
Display Area	334.08 * 200.45 mm
Bezel Opening	336.2 * 202.8 mm
Outline Size	358 * 226 mm
Panel Weight	1.27/1.40 kg (Typ./Max.)

Display Performance

Viewing Angle: 85/85/85/85 (CR≥10)

Display Mode: SA-SFT, Normally Black

Response Time: 14/11 ms (Tr/Td)

Display Colors: 16.7M, 40% NTSC

Surface Treatment: Antiglare, Hard coating (3H)

Backlight: 4 pcs CCFL, Without Driver

Interface & Electrical

Signal Interface: LVDS (1 ch, 8-bit), 20 pins

Input Voltage: 3.3V (Typ.)

Refresh Rate: 60Hz

Touch Screen: Without

Environmental Specifications

Operating Temperature: -10°C to 70°C

Storage Temperature: -20°C to 80°C

Vibration Resistance: 1.2G (11.76 m/s²)

Important Note: This model entered mass production in Q2 2007 with last shipment in Q3 2015 and is now discontinued. The information provided is for reference only. For integration into new products, contact NEC or their distributor for the latest production status and specifications.
