Product Details:
|
| Quality: | Brand New Original | Package: | Original Industrial Packing |
|---|---|---|---|
| Brightnerss: | 500CD/M2 | Connector: | 40PIN |
| Color: | 16.7M | Contrast Ratio: | 500:1 |
| Working Life: | 20K Hours | Resolution: | 480*272pixels |
| Voltage Supply: | 3.3V | Signal Type: | RGB |
| High Light: | 500 Cd/M2 40pin Lcd Module,Chimei 4.3inch Navigation Lcd Module,480x272pixels Automotive LCD Display |
||

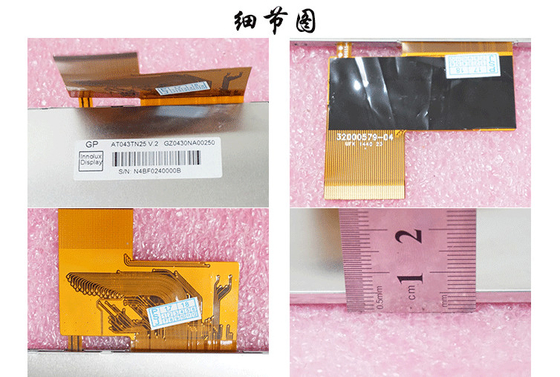

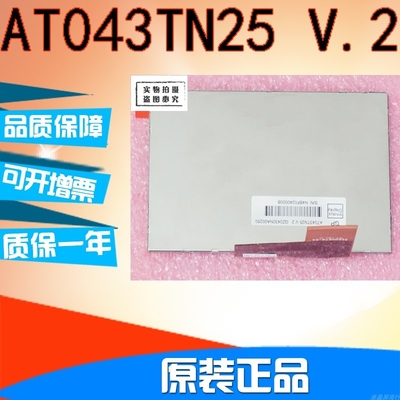

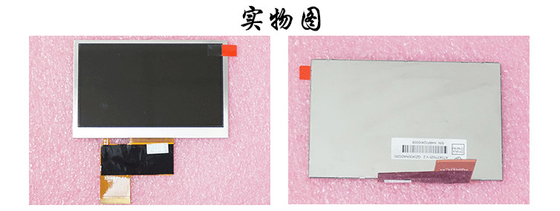

Chimei 4.3inch Automotive & Portable Navigation lcd module AT043TN25 V.2 500 cd/m² 40pin
AT043TN25 V.2 (Alias: AT043TN25 V2) is a 4.3" diagonal a-Si TFT-LCD display panel product from Chimei Innolux Corporation (hereafter called Chimei Innolux), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . It's general features are summarized by Einklcd in the following: WLED Backlight, Matte , 2 in 1 FPC. Based on its features,einklcd recommend that this model be applied to Automotive Display, Portable Navigation etc. According to the information stored in Panelook this model mass production on Q3, 2010, Now this model is in production. We inputted this model's specification on Nov 15 2012 for the first time, and the latest update on Apr 27 2020. If you want to embed the LCM in your future product, einklcd strongly recommend that you should contact with Chimei Innolux or it's agent to learn lateast production and specification detail of AT043TN25 V.2. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
