Chimei 4.3 inch 500 cd/m² TFT-LCD Display Module with 40PIN Connector for Automotive Navigation

Name: Chimei 4.3 inch 500 cd/m² TFT-LCD Display Module with 40PIN Connector for Automotive Navigation
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: AT043TN25 V.2
Price: 30.00 USD
Availability: InStock

Brand Name:	Chimei
Model Number:	AT043TN25 V.2
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Brightnerss:

500CD/M2

Connector:

40PIN

Color:

16.7M

Contrast Ratio:

500:1

Working Life:

20K Hours

Resolution:

480*272pixels

Voltage Supply:

3.3V

Signal Type:

RGB

Packaging Details:

Industrial packing

Highlight:

500 Cd/M2 40pin Lcd Module

Chimei 4.3inch Navigation Lcd Module

480x272pixels Automotive LCD Display

Product Description

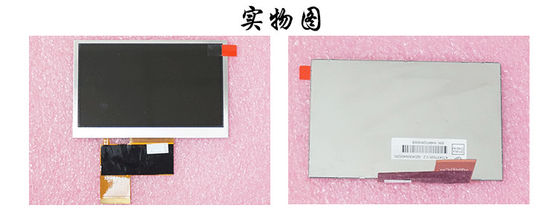

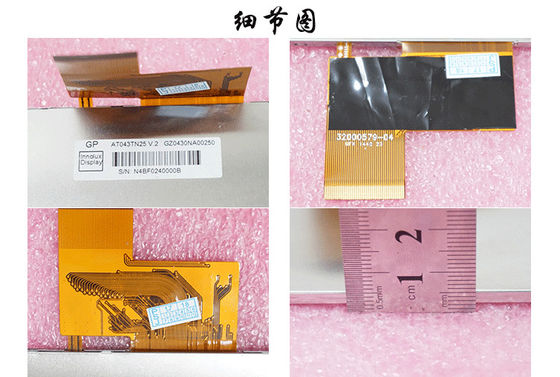

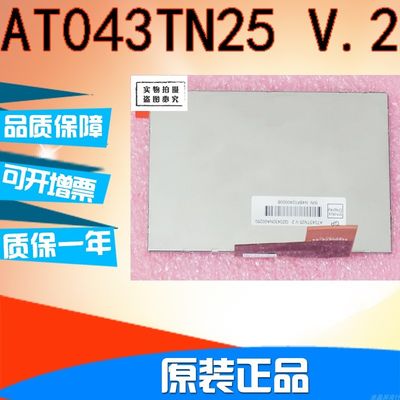

Chimei 4.3inch Automotive & Portable Navigation LCD Module AT043TN25 V.2

The Chimei Innolux AT043TN25 V.2 is a 4.3-inch diagonal TFT-LCD display module designed for automotive and portable navigation applications. This display features a 500 cd/m² brightness rating, 40-pin interface, and operates within a temperature range of -20°C to 70°C.

Product Specifications

Brand	Chimei Innolux
Model	AT043TN25 V.2
Diagonal Size	4.3 inch
Type	a-Si TFT-LCD, LCM
Pixel Format	480(RGB)*272 [WQVGA] 128PPI
Configuration	RGB Vertical Stripe
Active Area	95.04(H)*53.856(V) mm
Outline Dimensions	105.5(H)67.2(V)3.1(D) mm
Bezel Area	98.7(H)*57.5(V) mm
Treatment	Antiglare
Luminance	500 cd/m² (Typical)
Contrast Ratio	500:1 (Typical)
View Direction	6 o'clock
Response Time	10/15 ms (Typical, Tr/Td)
Viewing Angle	70/70/50/70 (Typical, CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	16.7M 50% NTSC
Light Source	WLED [8S1P], 20K hours, Without Driver
Weight	45.0g (Typical)
Frame Rate	60Hz
Touch Panel	Without
Interface Type	Parallel RGB (1 ch, 8-bit), 40 pins FPC
Power Supply	3.3V (Typical)
Environment	Operating Temperature: -20°C to 70°C Storage Temperature: -30°C to 80°C

Note: This model entered mass production in Q3 2010 and is currently in production. For the latest production status and specification details, we recommend contacting Chimei Innolux or their authorized agents directly. The information provided here is for reference purposes only.
