Sharp 19Inch Industrial LCD Panel LQ190E1LW02 with 300cd/m2 Brightness 1280×1024 Resolution and 30PIN LVDS Interface

Name: Sharp 19Inch Industrial LCD Panel LQ190E1LW02 with 300cd/m2 Brightness 1280×1024 Resolution and 30PIN LVDS Interface
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: LQ190E1LW02
Price: 43.00 USD
Availability: InStock

Brand Name:	sharp
Model Number:	LQ190E1LW02
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1280×1024PIXELS 86PPI

Style:

30PIN IPS

Brightness:

300CD/M2

Color:

16.7m

Contrast Ratio:

900 :1

Voltage Supply:

5.0V

Signal Type:

LVDS30pin

Backlight:

50k Hours Life

Packaging Details:

Industrial packing

Highlight:

1280x1024 Industrial LCD Screen

LQ190E1LW02 TFT LCD display panel

Product Description

Sharp 19Inch Industrial LCD Panel LQ190E1LW02 300cd/M² 86PPI 5.0V 30PIN

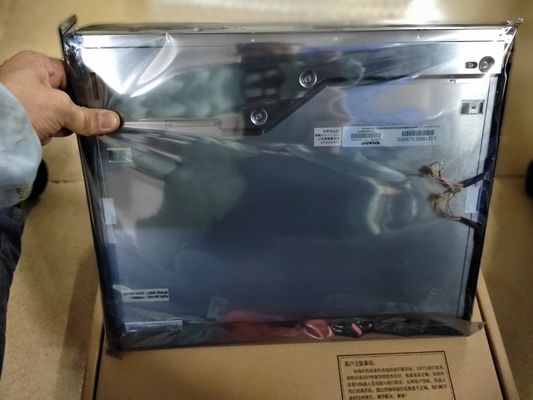

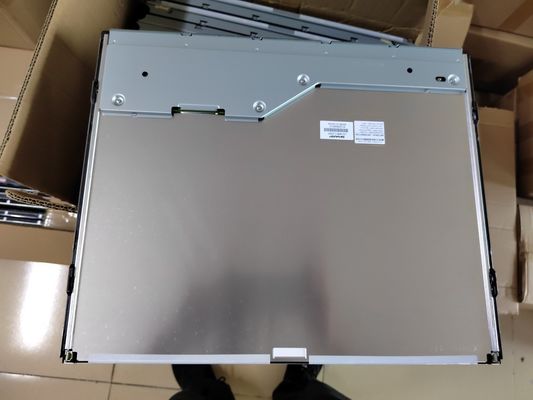

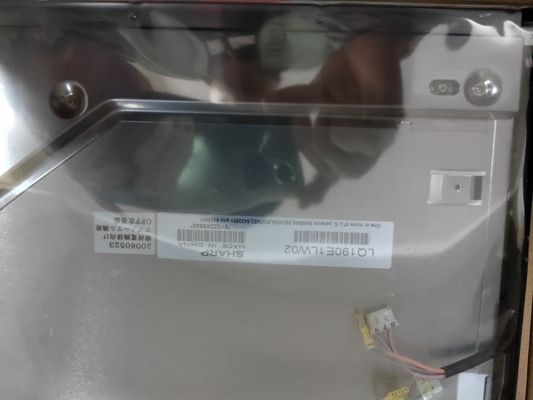

The Sharp LQ190E1LW02 is a 19.0-inch diagonal a-Si TFT-LCD display panel featuring a 1280×1024 SXGA resolution with 86 PPI. This industrial-grade panel includes an integral CCFL backlight system and operates at 5.0V with a 30-pin connector interface.

Product Specifications

Manufacturer	Sharp
Model Name	LQ190E1LW02
Screen Size	19.0 inch
Screen Type	LCM, a-Si TFT-LCD
Resolution	1280(RGB)×1024 (SXGA) 86PPI
Pixel Arrangement	RGB Vertical Stripe
Active Area	376.32 × 301.056 mm (H×V)
Outline Dimensions	404.2 × 330 × 20.5 mm (H×V×D)
Bezel Area	382.32 × 307.06 mm (H×V)
Surface Treatment	Antiglare (Haze 40%), Hard coating (2H)
Luminance	300 cd/m² (Typical)
Contrast Ratio	900:1 (Typical)
Viewing Angle	85/85/85/85 (CR≥10)
Response Time	12 ms (Typical, Tr+Td)
Display Mode	ASV, Normally Black, Transmissive
Color Depth	16.7M colors, 72% NTSC
Backlight	4 CCFL lamps, 50K hours lifespan, No Driver
Weight	2.80 kg (Maximum)
Refresh Rate	60Hz
Touchscreen	Without
Signal Interface	LVDS (2 ch, 8-bit), 30-pin connector
Operating Voltage	5.0V (Typical)
Operating Temperature	0°C to 60°C
Storage Temperature	-25°C to 60°C
Vibration Resistance	2.0G (19.6 m/s²)

Important Note:This model entered mass production in Q2 Sharp 19Inch Industrial LCD Panel LQ190E1LW02 with 300cd/m2 Brightness 1280×1024 Resolution and 30PIN LVDS Interface 2

2008 with last shipment in Q1 2013 and is now discontinued. Specifications are provided for reference only. For current production status and latest specifications, please contact Sharp or their authorized agents directly.
