Sharp 10.4 Inch Industrial LCD Panel LQ10D368 with 640×480 Resolution and 350CD/M2 Brightness

Name: Sharp 10.4 Inch Industrial LCD Panel LQ10D368 with 640×480 Resolution and 350CD/M2 Brightness
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: LQ10D368
Price: 43.00 USD
Availability: InStock

Brand Name:	Sharp
Model Number:	LQ10D368
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

640×480PIXELS 76PPI

Style:

31PIN IPS

Brightness:

350CD/M2

Color:

262k

Contrast Ratio:

300 :1

Voltage Supply:

3.3V

Packaging Details:

Industrial packing

Highlight:

IPS Sharp Industrial Lcd Panel

200cd/M2 Industrial Lcd Panel

76PPI Industrial Lcd Monitor

Product Description

Sharp LQ10D368 Industrial LCD Panel

Product Overview

The Sharp LQ10D368 is a 10.4-inch diagonal a-Si TFT-LCD industrial display panel featuring 640*480 resolution, 262K colors, and 200 cd/m² brightness. This 31-pin interface panel includes an integrated CCFL backlight system and is designed for demanding industrial applications.

Key Specifications

Display Size	10.4 inches diagonal
Resolution	640 * 480 pixels
Color Depth	262K colors
Brightness	200 cd/m²
Pixel Density	76 PPI
Interface	31-pin
Backlight	Integrated CCFL system (backlight driver not included)
Touch Screen	Not included

Technical Features

Lamp replaceable with life ≥ 50,000 hours
U/D, L/R reverse functionality
Matte surface treatment
Operating temperature: -10°C to 65°C
Storage temperature: -30°C to 70°C
Maximum vibration level: 1.0G (9.8 m/s²)

Application Recommendations

This display panel is specifically recommended for industrial applications where reliability and durability are paramount. The robust construction and wide operating temperature range make it suitable for harsh environments.

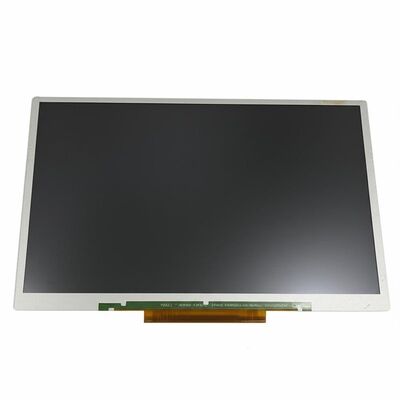

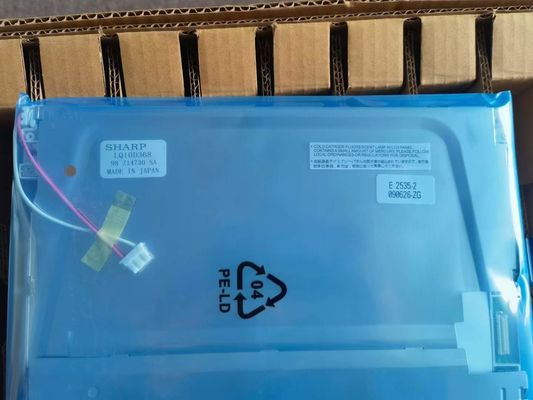

Product Images

Important Product Status Information

This model entered mass production in Q3 2000 with final shipments in Q3 2009. The product is currently discontinued. For integration into new products, we strongly recommend contacting Sharp or their authorized agents for the latest production status and specification details.

The production status information provided is for reference only and should not be used as the sole basis for decision-making. Specifications were last updated on July 3, 2020.
