IPS Sharp Industrial Lcd Panel LQ10D368 640*480 10.4 Inch 200cd/M2 76PPI

We visited their factory many times.Their workshop is very big and e ink display module are really great!

—— Chris

Our company have placed orders to Ridafone many times.They develop and produce all e ink LCD display items in good quality.

—— Picado Freddy

I'm Online Chat Now

IPS Sharp Industrial Lcd Panel LQ10D368 640*480 10.4 Inch 200cd/M2 76PPI

IPS Sharp Industrial Lcd Panel LQ10D368 640*480 10.4 Inch 200cd/M2 76PPI
IPS Sharp Industrial Lcd Panel LQ10D368 640*480 10.4 Inch 200cd/M2 76PPI IPS Sharp Industrial Lcd Panel LQ10D368 640*480 10.4 Inch 200cd/M2 76PPI IPS Sharp Industrial Lcd Panel LQ10D368 640*480 10.4 Inch 200cd/M2 76PPI

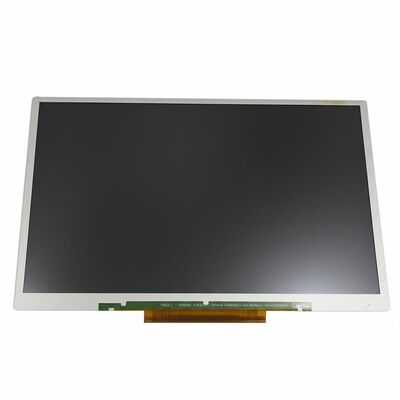

Large Image :  IPS Sharp Industrial Lcd Panel LQ10D368 640*480 10.4 Inch 200cd/M2 76PPI

Product Details:
Place of Origin: China
Brand Name: Sharp
Certification: Rohs,CE,FCC
Model Number: LQ10D368
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: Industrial packing
Delivery Time: 4-5 working day
Payment Terms: T/T,W, Western Union, MoneyGram
Supply Ability: 3000pcs per week
Detailed Product Description
Quality: Brand New Original Package: Original Industrial Packing
Resolution: 640×480PIXELS 76PPI Style: 31PIN IPS
Brightness: 350CD/M2 Color: 262k
Contrast Ratio: 300 :1 Voltage Supply: 3.3V
High Light:

IPS Sharp Industrial Lcd Panel

,

200cd/M2 Industrial Lcd Panel

,

76PPI Industrial Lcd Monitor

Sharp 10.4inch industrial lcd panel LQ10D368 640*480pixels 262k colors brightness 200 cd/m² 31pin



LQ10D368 is a 10.4" diagonal a-Si TFT-LCD display panel product from Sharp Corporation (hereafter called Sharp), with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of -10 ~ 65°C , a storage temperature range of -30 ~ 70°C , and the maximal vibration level of 1.0G (9.8 m/s²). It's general features are summarized by einklcd in the following: Lamp Repaceable, Life ≥ 50K hours, U/D,L/R Reverse, Matte . Based on its features, einklcd recommend that this model be applied to Industrial etc. According to the information stored in einklcd this model mass production on Q3, 2000 and last shippment on Q3, 2009, Now this model is discontinued.  We inputted this model's specification on Jan 10 2013 for the first time, and the latest update on Jul 3 2020. If you want to embed the LCM in your future product, einklcd strongly recommend that you should contact with Sharp or it's agent to learn lateast production and specification detail of LQ10D368. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.



IPS Sharp Industrial Lcd Panel LQ10D368 640*480 10.4 Inch 200cd/M2 76PPI 0

IPS Sharp Industrial Lcd Panel LQ10D368 640*480 10.4 Inch 200cd/M2 76PPI 1

IPS Sharp Industrial Lcd Panel LQ10D368 640*480 10.4 Inch 200cd/M2 76PPI 2
