10.4 Inch 400cd/m2 Industrial LCD Display with 800×600 Pixels Resolution and 3.3V Voltage Supply

Name: 10.4 Inch 400cd/m2 Industrial LCD Display with 800×600 Pixels Resolution and 3.3V Voltage Supply
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: G104S1-L01
Price: 43.00 USD
Availability: InStock

Brand Name:	Innolux
Model Number:	G104S1-L01
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

800×600PIXELS 96PPI

Style:

20PIN IPS

Brightness:

400CD/M2

Color:

262K

Contrast Ratio:

700 :1

Voltage Supply:

3.3V

Packaging Details:

Industrial packing

Highlight:

10.4 Inch Industrial Lcd Display

Innolux Industrial Lcd Display

96PPI Industrial Lcd Panel

Product Description

10.4 Inch Innolux Industrial LCD Display G104S1-L01

Product Overview

The G104S1-L01 is a 10.4-inch diagonal a-Si TFT-LCD display panel from Chimei Innolux Corporation, featuring an integrated WLED backlight system with LED driver. This industrial-grade display offers 800*600 pixel resolution, 96 PPI density, and supports 262k colors with a brightness of 400 cd/m².

Key Features

10.4-inch diagonal TFT-LCD display
800*600 pixel resolution (96 PPI)
400 cd/m² brightness with WLED backlight
262k color support
3.3V operating voltage with 20-pin interface
Lamp replaceable design
180° reverse viewing capability
6/8-bit color depth support
Matte surface finish
Digitizer applicable

Environmental Specifications

Operating Temperature	-20°C to 70°C
Storage Temperature	-40°C to 80°C
Max Vibration Level	1.5G (14.7 m/s²)

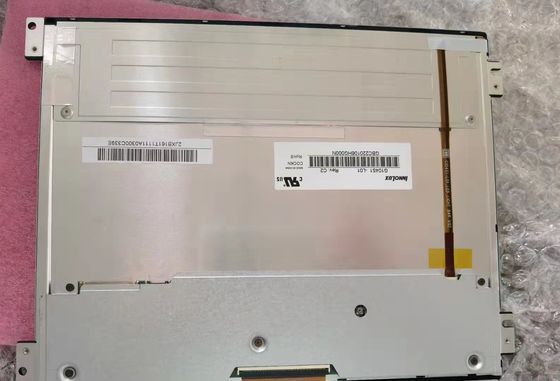

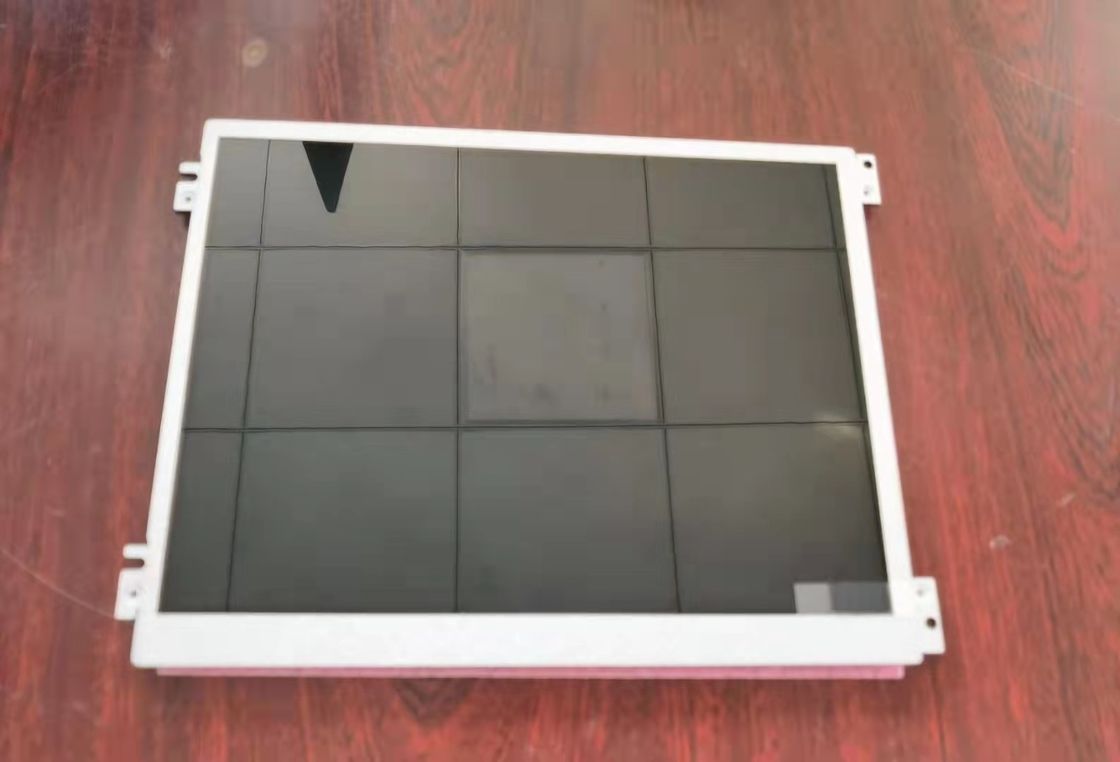

Product Images

Production Information

Mass production began in Q1 2011 and the model remains in production. Initial specification entry was recorded on April 10, 2013, with the latest update on January 9, 2020.

Important Note: For integration of the G104S1-L01 LCD module into your products, we strongly recommend contacting Chimei Innolux or their authorized agents for the latest production status and detailed specifications. The information provided here is for reference only and should not be used as the sole basis for decision-making.
