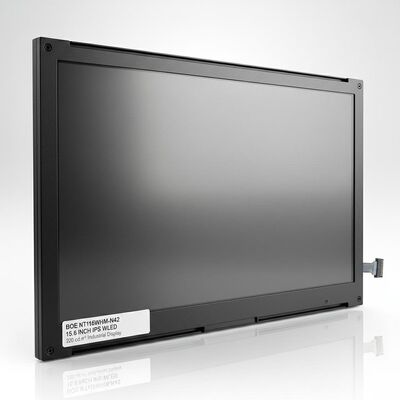

15.6 Inch 220cd/m2 IPS WLED Industrial LCD Display BOE LCD Panel NT156WHM-N42

Name: 15.6 Inch 220cd/m2 IPS WLED Industrial LCD Display BOE LCD Panel NT156WHM-N42
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: NT156WHM-N42
Price: 43.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	NT156WHM-N42
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1366×768PIXELS 100PPI

Style:

30PIN IPS

Brightness:

220CD/M2

Color:

262K

Contrast Ratio:

400 :1

Voltage Supply:

3.3V

Packaging Details:

Industrial packing

Highlight:

220cd/m2 Industrial Lcd Monitor

IPS WLED Industrial Lcd Monitor

100PPI Industrial Touch Screen Panel

Product Description

220cd/m² Industrial LCD Monitor 15.6 Inch IPS WLED 100PPI NT156WHM-N42

Product Overview

The NT156WHM-N42 (Product Code: BOE06A5) is a 15.6-inch diagonal a-Si TFT-LCD display panel manufactured by BOE Technology Group Co., Ltd. This industrial-grade display features an integral WLED backlight system with LED driver and supports 1366*768 pixel resolution at 100 PPI with 262k color reproduction.

Key Specifications

Display Size	15.6 inches diagonal
Resolution	1366 * 768 pixels
Pixel Density	100 PPI
Brightness	220 cd/m²
Backlight	WLED with LED Driver
Color Support	262k colors
Interface	30-pin eDP 1.2
Voltage	3.3V

Environmental Specifications

Operating Temperature: 0°C to 50°C
Storage Temperature: -20°C to 60°C
Maximum Vibration Level: 1.5G (14.7 m/s²)

Additional Features

IPS Panel Technology
Reverse Interface Support
Matte Surface Finish
Embedded DisplayPort 1.2
No Touch Screen

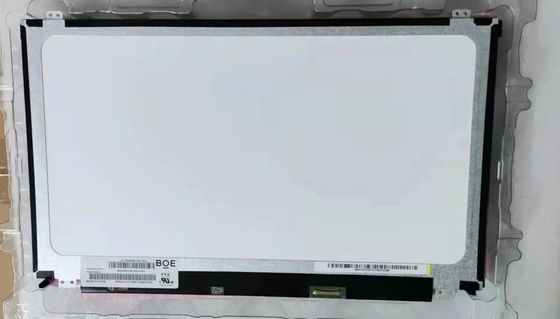

Product Images

Application Recommendations

This display model is recommended for laptop applications and similar industrial computing devices. Mass production began in Q2 2014, and the model remains in active production.

Important Note: The production status and specifications provided are for reference only. For the most current production information and detailed specifications, we strongly recommend contacting BOE or their authorized agents before making product integration decisions.
