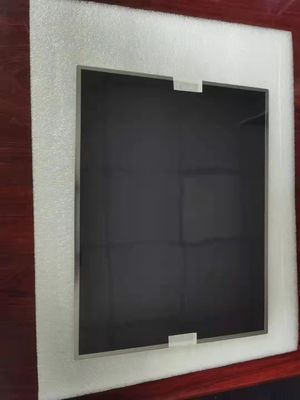

15in 500cd/m2 Industrial LCD Display with 133PPI Resolution and WLED Backlight TDA150-005V01

Name: 15in 500cd/m2 Industrial LCD Display with 133PPI Resolution and WLED Backlight TDA150-005V01
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: TDA150-005V01
Price: 43.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	TDA150-005V01
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W, Western Union, MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1600×1200PIXELS 133PPI

Style:

40PIN IPS

Brightness:

500CD/M2

Color:

16.7M

Contrast Ratio:

1000 :1

Voltage Supply:

3.3V

Packaging Details:

Industrial packing

Highlight:

500cd/m2 Industrial Lcd Display

133PPI Industrial Lcd Display

WLED Backlight Industrial Lcd Screen

Product Description

500cd/M² Industrial LCD Display 133PPI 15in WLED Backlight TDA150-005V01

Product Overview

15-inch BOE Industrial LCD Display TDA150-005V01 featuring 500 cd/m² brightness, 3.3V operation, 40-pin interface, WLED backlight technology, and UXGA resolution of 1600(RGB)×1200 at 133PPI with 16.7 million colors.

Technical Specifications

Display Size	15.0-inch diagonal
Technology	a-Si TFT-LCD
Resolution	1600(RGB)×1200 (UXGA)
Pixel Density	133 PPI
Brightness	500 cd/m²
Backlight	WLED with LED Driver
Operating Voltage	3.3V
Interface	40-pin
Colors	16.7 million
Surface	Matte

Environmental Specifications

Operating Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C

Key Features

WLED Backlight System with Integrated Driver
Matte Surface for Reduced Glare
High Brightness 500 cd/m² for Industrial Environments
Wide Operating Temperature Range
Optimized for Industrial Applications

Important Notice

This model (TDA150-005V01) entered mass production in Q2 2016 and is currently discontinued. Specification data was first recorded on March 29, 2018, with the latest update on August 9, 2021. For integration into your products, we strongly recommend contacting BOE or their authorized agents for the latest production status and technical specifications. The information provided here is for reference only and should not be used as the sole basis for decision-making.
