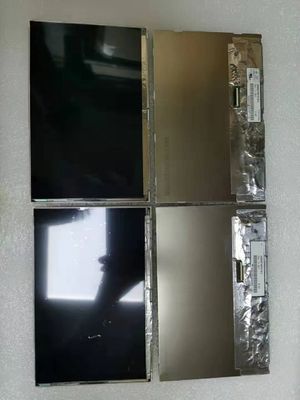

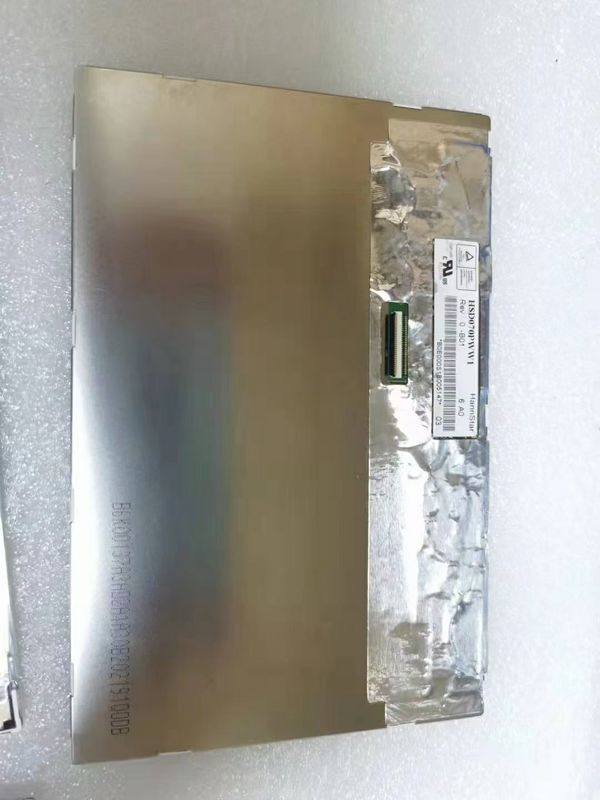

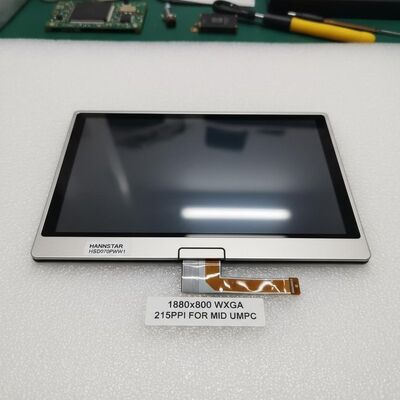

HANNSTAR HSD070PWW1 7inch1280(RGB)×800 (WXGA) 215PPI lcd display model for MID UMPC Tablet PC

The HSD070PWW1-A00 is a 7.0 inch diagonal a-Si TFT-LCD display panel product from HannStar Display Corporation (hereafter called HannStar), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 70°C . It's general features are summarized by Einklcd in the following: WLED Backlight, With LED Driver, Matte . Based on its features, Panelook recommend that this model be applied to MID UMPC, Pad & Tablet etc. According to the information stored in einklcd this model mass production on Q2, 2011, Now this model is discontinued. We inputted this model's specification on Apr 9 2013 for the first time, and the latest update on Apr 20 2018. If you want to embed HSD070PWW1-A00 LCM in your future product, einklcd strongly recommend that you should contact with HannStar or it's agent to learn lateast production and specification detail. The HSD070PWW1-A00 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

Manufacturer

HannStar

Model Name

HSD070PWW1-A00

Screen Size

7.0 inch

Screen Type

LCM , a-Si TFT-LCD

Pixel Number

1280(RGB)×800 (WXGA) 215PPI

Arrangement

RGB Vertical Stripe

Active Area(mm)

150.72 × 94.2 (H×V)

Outline(mm)

161.2 × 105.5 × 4.5 (H×V×D)

Bezel Area(mm)

-

Treatment

Antiglare

Luminance

400 cd/m² (Typ.)

Contrast Ratio

800 : 1 (Typ.) (TM)

Viewing Angle

89/89/89/89 (Typ.)(CR≥10)

Response

25 (Typ.)(Tr+Td) ms

Good View at

Symmetry

Work Mode

IPS Pro, Normally Black, Transmissive

Color Depth

262K 50% NTSC

Backlight

WLED , 10K hours , With LED Driver

Mass

93.0g (Max.)



Refresh Rate

60Hz

Touchscreen

Without

Signal Type

LVDS (1 ch, 6-bit) , 30 pins Connector

Voltage Supply

3.3V (Typ.)

Max. Ratings

Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 70 °C
