BOE 23.2 Inch Stretched LCD Monitor with 500cd/m2 Brightness and 40 Pin Connector for High Resolution Display

Name: BOE 23.2 Inch Stretched LCD Monitor with 500cd/m2 Brightness and 40 Pin Connector for High Resolution Display
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: EV232ZZM-N10
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	EV232ZZM-N10
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7m Colors

Model:

WLED

Style:

Wide Screen High Resolution 1280*92

Brightness:

500cd

Connector:

40pin

Contrast Ratio:

900:1

Working Life:

30K Hours

Packaging Details:

Industrial packing

Highlight:

23.2 Inch Stretched Lcd Monitor

55PPI Stretched Lcd Monitor

BOE Stretched Lcd Monitor

Product Description

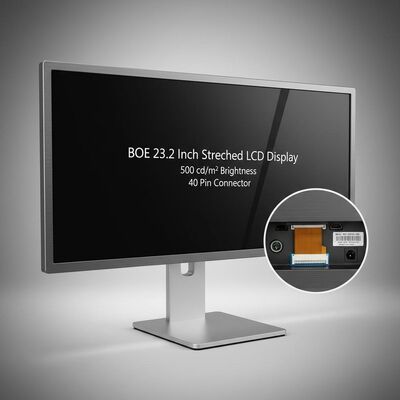

BOE 23.2 Inch Stretched LCD Monitor - EV232ZZM-N10

Product Overview

High-performance 23.2-inch stretched LCD monitor featuring 500 cd/m² brightness, 55 PPI resolution, and advanced display technology for industrial applications.

Brand BOE

Model EV232ZZM-N10

Diagonal Size 23.2 inch

Display Type a-Si TFT-LCD, LCM

Resolution 1280(RGB)*92 (55PPI)

Pixel Configuration RGB Vertical Stripe

Display Performance

Luminance 500 cd/m² (Typ.)

Contrast Ratio 900:1 (Typ.)

Response Time 15ms (Typ.)

Viewing Angle 80/80/70/60 (CR≥10)

Color Support 16.7M colors, 72% NTSC

Frame Rate 60Hz

Physical Dimensions

Active Area 588.48*42.297 mm

Outline Dimensions 598.38*56.897 mm

Bezel Area 589.48*44.297 mm

Technical Specifications

Operating Mode: ADS, Normally Black, Transmissive
Light Source: WLED [10S8P], Without Driver
Touch Panel: Without touch capability
Interface: LVDS (1 channel, 8-bit), 40-pin Connector
Power Supply: 5.0V (Typical)
Operating Temperature: 0°C to 50°C
Storage Temperature: -20°C to 60°C
