Product Details:
|
| Quality: | Brand New Original | Package: | Original Industrial Packing |
|---|---|---|---|
| Resolution: | 640*480pixels | Style: | 50PIN IPS |
| Brightness: | 200CD/M2 | Color: | 16.7M |
| Contrast Ratio: | 500 :1 | Working Life: | 20K Hours |
| Interface: | LVDS | ||
| High Light: | 143PPI Industrial Lcd Panel,5.6 Inch Industrial Lcd Panel,640x480 VGA Industrial Lcd Screen |
||

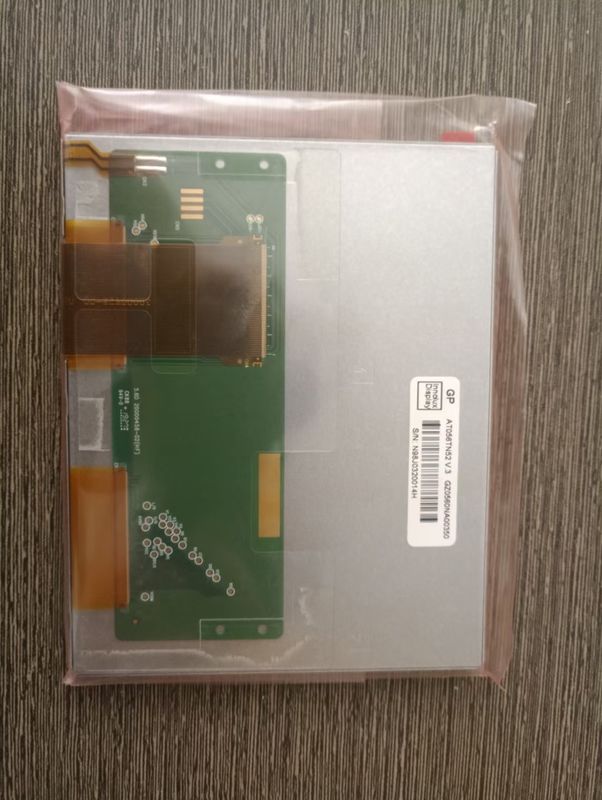

Chimei AT056TN52 V 5.6inch Industrial Lcd Display 640(RGB)×480, VGA, 143PPI 3.3V 50P WLED 200 cd/m² 16.7M color
Chimei Innolux Corporation (hereafter called Chimei Innolux) AT056TN52 V.3 is a 5.6 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . It's general features are summarized by einklcd in the following: WLED Backlight, U/D,L/R Reverse, Matte , 2 in 1 FPC. Based on its features, einklcd recommend that this model be applied to Industrial, Digital Photo Frame, Video Door Phone, VOIP Phone etc. According to the information stored in einklcd this model mass production on Q2, 2009, Now this model is in production. We inputted this model's specification on Aug 14 2012 for the first time, and the latest update on Apr 27 2020. If you want to embed AT056TN52 V.3 LCM in your future product, einklcd strongly recommend that you should contact with Chimei Innolux or it's distributor to learn lateast production and specification detail. The AT056TN52 V.3 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
| Panel Brand | Chimei Innolux | Panel Model | AT056TN52 V.3 |
|---|---|---|---|
| Panel Size | 5.6" | Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 640(RGB)×480, VGA, 143PPI | Pixel Format | RGB Vertical Stripe |
| Display Area | 112.896(W)×84.672(H) mm | Bezel Opening | 115.70(W)×87.47(H) mm |
| Outline Size | 126.5(W)×100(H) ×6(D) mm | Surface | Antiglare |
| Brightness | 200 cd/m² (Typ.) | Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock | Response Time | 10/15 (Typ.)(Tr/Td) |
| Display Colors | 16.7M | Lamp Type | 3S5P WLED , 20K hours , Without Driver |
| Frequency | 60Hz | Touch Screen | Without |
| Panel Weight | 127.5g (Typ.) | Application | |
| Signal Interface | Parallel RGB (1 ch, 8-bit) , 50 pins FPC | ||
| Input Voltage | 3.3/5.0/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) | ||
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C | ||
