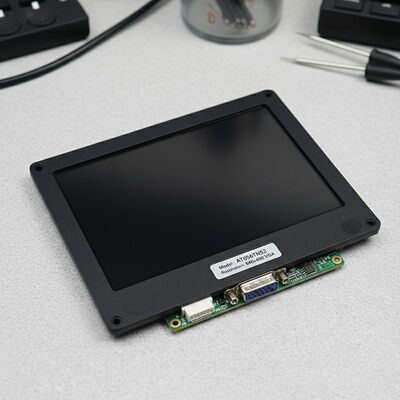

5.6 Inch 143PPI Industrial LCD Display Panel 640x480 VGA Chimei AT056TN52 TFT-LCD

5.6 Inch 143PPI Industrial LCD Display Panel 640x480 VGA Chimei AT056TN52 TFT-LCD

5.6 Inch 143PPI Industrial LCD Display Panel 640x480 VGA Chimei AT056TN52 TFT-LCD

Brand Name: CHIMEI INNOLUX
Model Number: AT056TN52 V.3
MOQ: 10pcs
Price: Negotiation
Payment Terms: T/T,W,Western Union,MoneyGram
Supply Ability: 3000pcs per week
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
Rohs,CE,FCC
Quality:
Brand New Original
Package:
Original Industrial Packing
Resolution:
640*480pixels
Style:
50PIN IPS
Brightness:
200CD/M2
Color:
16.7M
Contrast Ratio:
500 :1
Working Life:
20K Hours
Interface:
LVDS
Packaging Details:
Industrial packing
Highlight:

143PPI Industrial Lcd Panel

,

5.6 Inch Industrial Lcd Panel

,

640x480 VGA Industrial Lcd Screen

Product Description
Chimei AT056TN52 V.3 5.6-Inch Industrial LCD Display Panel
Product Overview
The Chimei Innolux AT056TN52 V.3 is a 5.6-inch diagonal a-Si TFT-LCD industrial display panel featuring 640*480 VGA resolution with 143 PPI pixel density. This robust display operates on 3.3V power with WLED backlighting, delivering 200 cd/m² brightness and 16.7 million colors. Designed for demanding industrial applications, it offers reliable performance across a wide temperature range.
Key Features
  • 5.6-inch diagonal TFT-LCD display with 640*480 VGA resolution
  • High 143 PPI pixel density for sharp image quality
  • 200 cd/m² brightness with 500:1 contrast ratio
  • WLED backlight system with 20,000-hour lifespan
  • Wide operating temperature range: -20°C to 70°C
  • Compact outline: 126.5mm * 100mm * 6mm
  • Lightweight design at 127.5 grams
  • Parallel RGB interface with 50-pin FPC connector
Technical Specifications
Panel Brand Chimei Innolux
Panel Model AT056TN52 V.3
Panel Size 5.6 inches
Resolution 640(RGB)*480, VGA, 143 PPI
Display Area 112.896mm (W) * 84.672mm (H)
Brightness 200 cd/m² (Typical)
Contrast Ratio 500:1 (Typical)
Viewing Angle 70/70/50/70 (Typical, CR≥10)
Response Time 10/15 ms (Typical, Tr/Td)
Display Colors 16.7 Million
Signal Interface Parallel RGB (1 channel, 8-bit), 50-pin FPC
Input Voltage 3.3/5.0/15/-10V (VCC/AVDD/VGH/VGL)
Environmental Specifications
Operating Temperature -20°C to 70°C
Storage Temperature -30°C to 80°C
Application Areas
This industrial LCD panel is ideally suited for industrial equipment, digital photo frames, video door phones, VOIP phones, and other embedded display applications requiring reliable performance in challenging environments.
5.6 Inch 143PPI Industrial LCD Display Panel 640x480 VGA Chimei AT056TN52 TFT-LCD 0
Production Note: This model entered mass production in Q2 2009 and remains in production. For the latest production status and detailed specifications, we recommend contacting Chimei Innolux or their authorized distributors directly. Information provided is for reference only and should not be used as the sole basis for decision-making.
