10.1 Inch 1024×600 Resolution 250 cd/m² Brightness Industrial LCD Display TFT-LCD Screen

Name: 10.1 Inch 1024×600 Resolution 250 cd/m² Brightness Industrial LCD Display TFT-LCD Screen
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: G101STN01.0
Price: 43.00 USD
Availability: InStock

Brand Name:	AUO
Model Number:	G101STN01.0
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1024*600pixels

Style:

40PIN IPS

Brightness:

250CD/M2

Color:

16.7M

Working Life:

15K Hours

Interface:

LVDS

Packaging Details:

Industrial packing

Highlight:

10.1 Inch Industrial Lcd Screen

WSVGA 117PPI Industrial Lcd Screen

250cd/M2 Panel Mount Lcd Display

Product Description

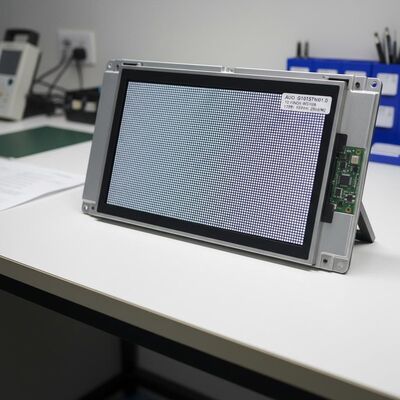

AUO G101STN01.0 10.1-inch Industrial LCD Display

The AUO G101STN01.0 is a 10.1-inch diagonal a-Si TFT-LCD display panel with integrated WLED backlight system and LED driver. This industrial-grade display features a WSVGA resolution of 1024(RGB)*600 pixels with 117 PPI density, delivering 250 cd/m² brightness and 16.7 million colors.

Key Features

10.1-inch WSVGA display with 117 PPI pixel density
250 cd/m² brightness with 500:1 contrast ratio
WLED backlight with 15,000 hours lifespan
Integrated LED driver included
LVDS interface with 40-pin connector
Wide operating temperature range: -10°C to 60°C
Antiglare, hard coating (3H) surface treatment
Industrial-grade construction with 1.5G vibration resistance

Technical Specifications

Manufacturer	AU Optronics Corp. (AUO)
Model Name	G101STN01.0
Screen Size	10.1 inch
Resolution	1024(RGB)*600 (WSVGA)
Pixel Density	117 PPI
Active Area	222.72 * 125.28 mm (H*V)
Outline Dimensions	235 * 143 * 5.2 mm (HVD)
Brightness	250 cd/m² (Typical)
Contrast Ratio	500:1 (Typical)
Viewing Angle	70/70/60/60 (Typical, CR≥10)
Response Time	7/9 ms (Typical, Tr/Td)
Color Depth	262K/16.7M (45% NTSC)
Backlight Type	WLED with LED Driver
Interface	LVDS (1 channel, 6/8-bit), 40-pin connector
Operating Voltage	3.3V (Typical)
Weight	180g (Typical)
Refresh Rate	60Hz

Environmental Specifications

Operating Temperature	-10°C to 60°C
Storage Temperature	-30°C to 70°C
Vibration Resistance	1.5G (14.7 m/s²) maximum

Production Note: This model entered mass production in Q1 2015 and is currently in production. For the latest production status and detailed specifications, we recommend contacting AUO or their authorized distributors directly.

Product Images
