15 Inch AUO Industrial LCD Display with 1024×768 XGA Resolution 350cd/m² Brightness and 3.3V LVDS Interface

Name: 15 Inch AUO Industrial LCD Display with 1024×768 XGA Resolution 350cd/m² Brightness and 3.3V LVDS Interface
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: A150XN01 V2
Price: 43.00 USD
Availability: InStock

Brand Name:	auo
Model Number:	A150XN01 V2
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

1.07B Colors

Model:

WLED

Style:

Wide Screen High Resolution1024*768PIXELS

Brightness:

350cd

Connector:

20PIN

Contrast Ratio:

700:1

Working Time:

10k Hours

Input Voltage:

3.3 V

Signal Type:

LVDS

Packaging Details:

Industrial packing

Highlight:

15" AUO Industrial Lcd Display

1024×768 85PPI Industrial Lcd Display

A150XN01

Product Description

1024*768 85PPI 15" AUO Industrial LCD Display A150XN01 V2 3.3V

15-Inch AUO Industrial LCD Display model A150XN01 V2 - 1024(RGB)*768 [XGA] resolution at 85PPI, 3.3V LVDS interface with 20-pin connector, and 350 cd/m² brightness.

Product Overview

The AU Optronics Corp. A150XN01 V2 is a 15.0-inch diagonal a-Si TFT-LCD display panel with integrated WLED backlight system. This industrial-grade display features an operating temperature range of 0~70°C and storage temperature range of -20~70°C. Key characteristics include WLED backlight, 180° reverse capability, and matte surface treatment.

Technical Specifications

Brand AUO

Model A150XN01 V2

Diagonal Size 15.0 inch

Display Type a-Si TFT-LCD, LCM

Resolution 1024(RGB)*768 [XGA] 85PPI

Pixel Configuration RGB Vertical Stripe

Active Area 304.128*228.096 mm

Outline Dimensions 326*252*11.3 mm

Bezel Area 308.1*232.1 mm

Surface Treatment Antiglare, Hard coating (3H)

Brightness 350 cd/m² (Typ.)

Contrast Ratio 700:1 (Typ.)

Response Time 8/4 ms (Typ.)(Tr/Td)

Viewing Angle 70/70/65/60 (Typ.)(CR≥10)

Operating Mode TN, Normally White, Transmissive

Color Support 16.2M 70% NTSC

Backlight WLED, 10K hours, Without Driver

Weight 970g (Typ.)

Frame Rate 60Hz

Touch Panel Without

Interface LVDS (1 ch, 8-bit), 20 pins Connector

Power Supply 3.3V (Typ.)

Operating Temperature 0 ~ 70°C

Storage Temperature -20 ~ 70°C

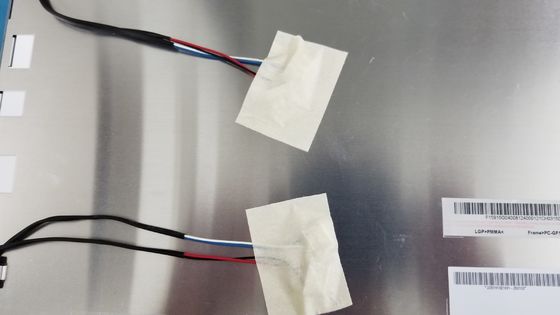

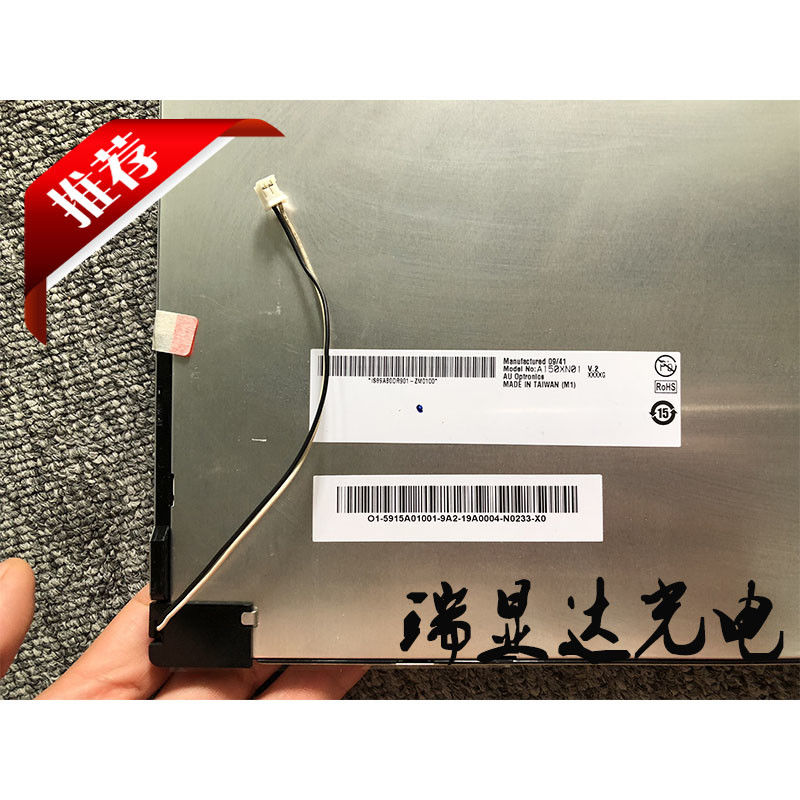

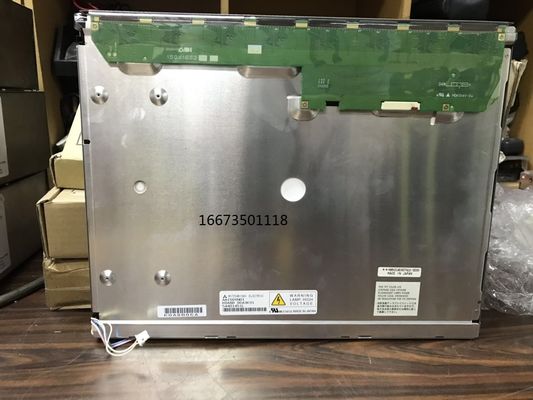

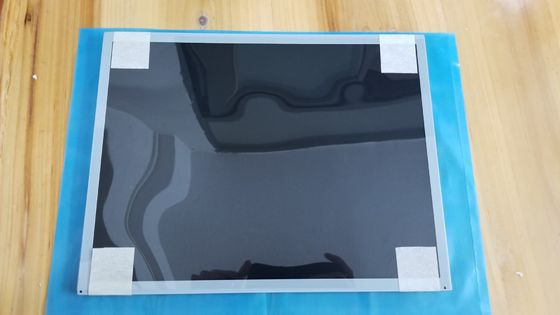

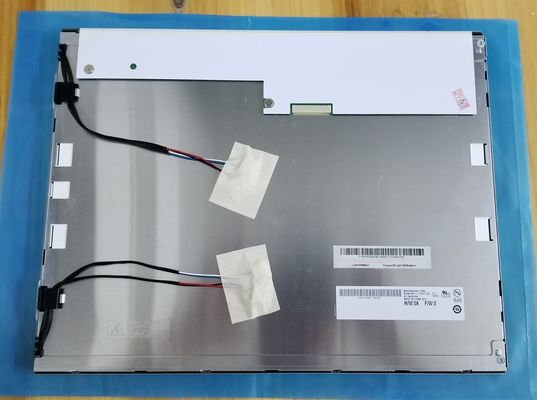

Product Images

Important Note: This model entered mass production in Q1 2009 and is now discontinued. For integration into future products, we strongly recommend contacting AUO or their distributor for the latest production and specification details. The production status information is for reference only and should not be used as the sole basis for decision-making.
