7 Inch 800×480 Resolution 400cd/m2 Brightness AUO LCD Panel Industrial LCD Display

Name: 7 Inch 800×480 Resolution 400cd/m2 Brightness AUO LCD Panel Industrial LCD Display
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: G070VW01
Price: 43.00 USD
Availability: InStock

Brand Name:	auo
Model Number:	G070VW01
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

1.07B Colors

Model:

WLED

Style:

Wide Screen High Resolution 800*480PIXELS

Brightness:

400cd

Connector:

20PIN

Contrast Ratio:

750:1

Working Time:

50k Hours

Input Voltage:

3.3 V

Signal Type:

LVDS

Packaging Details:

Industrial packing

Highlight:

400cd/m2 AUO Lcd Display

133PPI AUO Lcd Display

G070VW01

Product Description

7 Inch 800*480 133PPI 400cd/m² AUO LCD Display G070VW01 V0 V1

AUO 7-inch Industrial LCD Display G070VW01 V0
800*480 WVGA Resolution • 133 PPI • 400 cd/m² Brightness • 20-pin LVDS Interface • 3.3V Operation

Technical Specifications

Panel Brand	AUO
Panel Model	G070VW01 V0
Panel Size	7.0 inches
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)*480, WVGA, 133 PPI
Pixel Format	RGB Vertical Stripe
Display Area	152.4(W) * 91.44(H) mm
Bezel Opening	155.2(W) * 94.24(H) mm
Outline Size	170(W) * 111(H) * 8(D) mm
Surface Treatment	Antiglare, Hard coating (3H)
Brightness	400 cd/m² (Typical)
Contrast Ratio	750:1 (Typical)
Viewing Angle	80/80/80/80 (Typical, CR≥10)
Display Mode	TN, Normally White, Transmissive
Response Time	20/10 ms (Typical, Tr/Td)
Display Colors	262K/16.2M, 60% NTSC
Backlight Type	WLED, 50K hours lifespan, With LED Driver
Refresh Frequency	60Hz
Touch Screen	Without
Panel Weight	165/175g (Typical/Maximum)
Signal Interface	LVDS (1 channel, 6/8-bit), 20-pin Connector
Input Voltage	3.3V (Typical)
Operating Temperature	-30°C to 85°C
Storage Temperature	-30°C to 85°C

Key Features

High brightness 400 cd/m² for excellent visibility
Wide operating temperature range (-30°C to 85°C)
Long-life WLED backlight with 50,000 hours lifespan
Antiglare hard coating surface (3H hardness)
Compact outline dimensions for space-constrained applications
LVDS interface with 20-pin connector for reliable connectivity

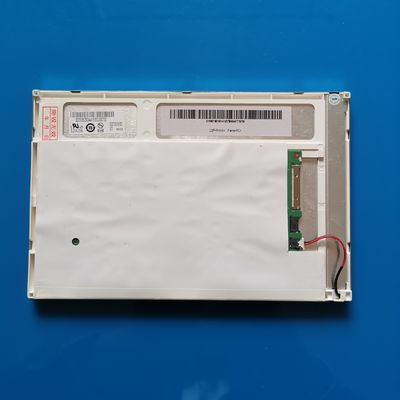

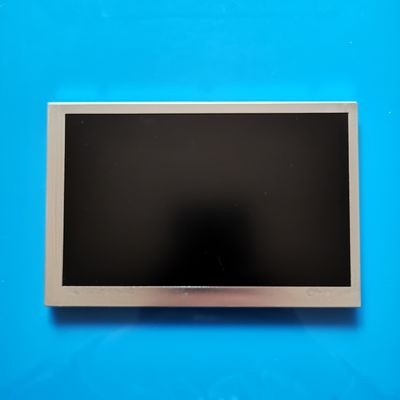

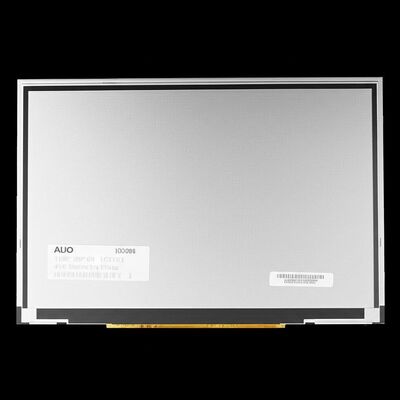

Product Images
