6.5 inch 640×480 Resolution 500 cd/m² Brightness Industrial LCD Display Panel G065VN01 V1

Name: 6.5 inch 640×480 Resolution 500 cd/m² Brightness Industrial LCD Display Panel G065VN01 V1
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: G065vn01 v1
Price: 43.00 USD
Availability: InStock

Brand Name:	AUO
Model Number:	G065vn01 v1
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

262K Colors

Model:

WLED

Style:

Wide Screen High Resolution 640*480 PIXELS

Brightness:

500cd

Connector:

31PIN

Contrast Ratio:

600:1

Working Time:

50k Hours

Input Voltage:

3.3 V

Signal Type:

LVDS

Packaging Details:

Industrial packing

Highlight:

600cd/M2 Industrial Lcd Panel

122PPI Industrial Lcd Panel

G065VN01 V1

Product Description

AUO G065VN01 V1 Industrial LCD Panel

Brand	AUO
Model	G065VN01 V1
Diagonal Size	6.5 inch
Display Type	a-Si TFT-LCD, LCM
Resolution	640*480 (VGA) 122PPI
Active Area	132.48*99.36 mm
Luminance	500 cd/m² (Typical)
Contrast Ratio	600:1 (Typical)
Viewing Angle	70/70/60/60 (CR≥10)
Response Time	15/10 ms (Tr/Td)
Interface	CMOS (1 ch, 6-bit), 31-pin Connector
Power Supply	3.3V (Typical)
Operating Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C
Weight	200g (Typical)

Product Overview

The AUO G065VN01 V1 is a 6.5-inch industrial TFT-LCD display panel featuring VGA resolution (640*480) with 122 PPI pixel density. This transmissive TN panel offers high brightness of 500 cd/m² and 600:1 contrast ratio, making it suitable for demanding industrial applications.

Key Features

• 6.5-inch diagonal a-Si TFT-LCD display
• 640*480 VGA resolution with 122 PPI
• High brightness: 500 cd/m² typical
• 600:1 contrast ratio
• Wide operating temperature: -20°C to 70°C
• CCFL backlight with 50,000 hours lifespan
• 31-pin CMOS interface
• Matte surface with anti-glare treatment

Application Information

This industrial LCD panel is designed for industrial applications requiring reliable performance in challenging environments. The panel features a robust construction with extended temperature range operation and long-life CCFL backlighting.

Important Note: This model entered mass production in Q2 2007 with last shipment in Q3 2010 and is now discontinued. For current production status and latest specifications, please contact AUO or their authorized distributors.

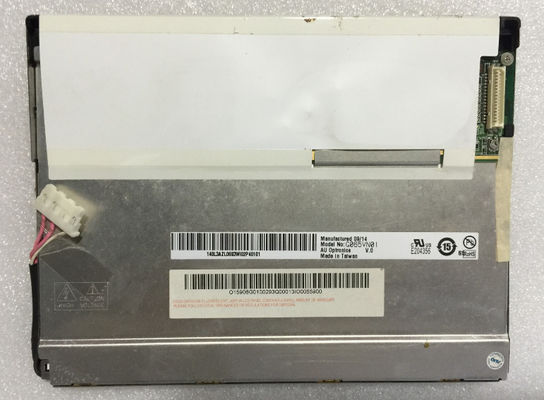

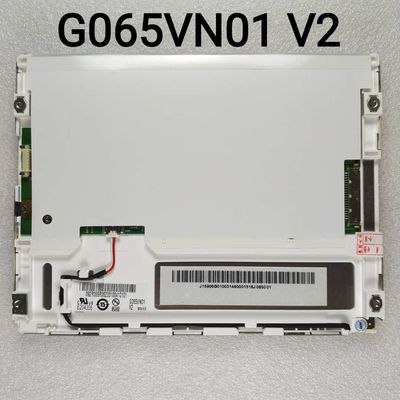

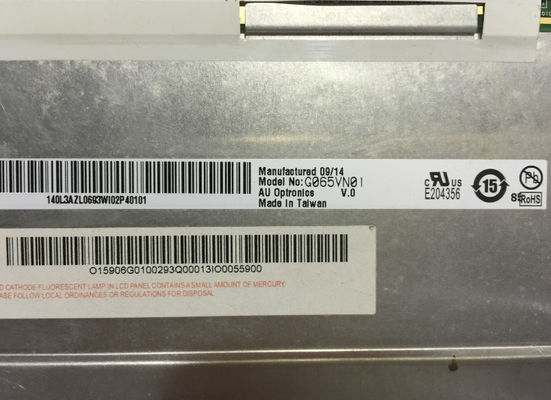

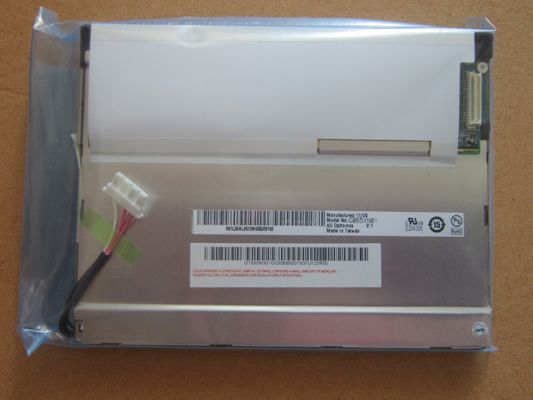

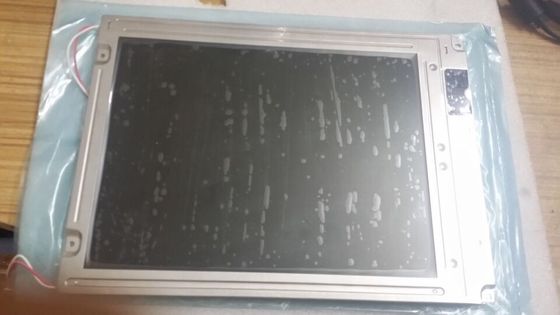

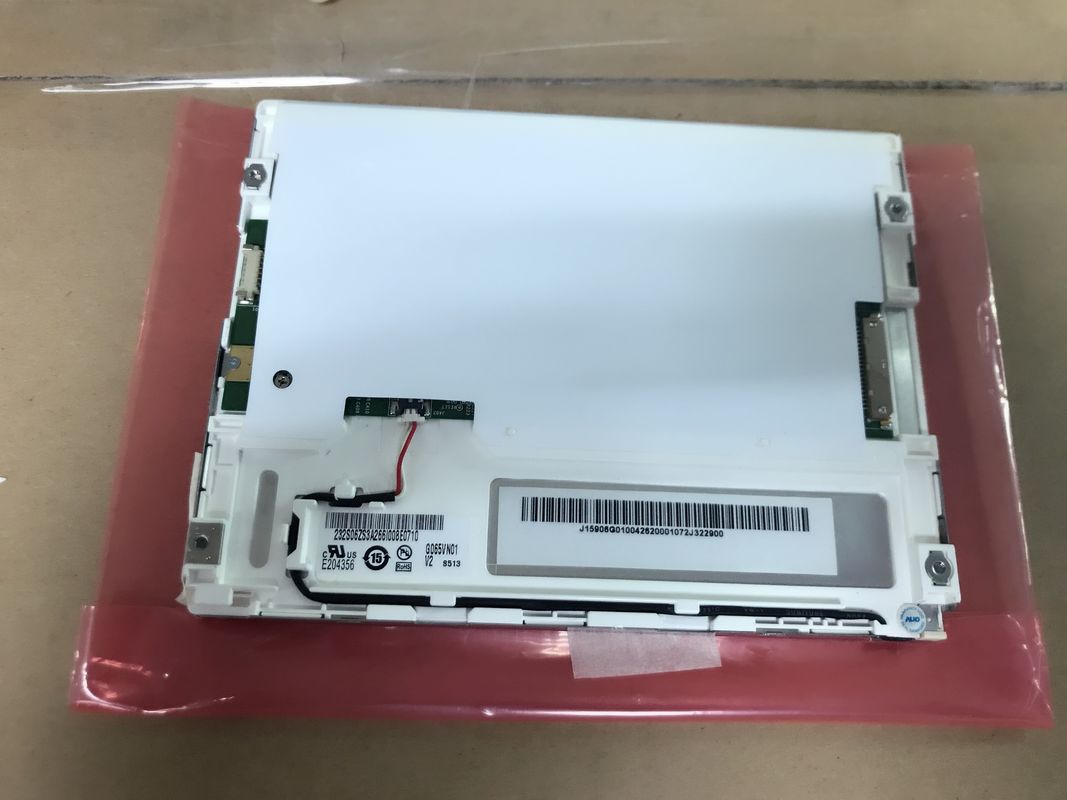

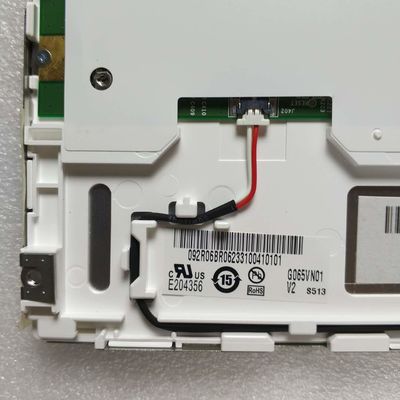

Product Images
