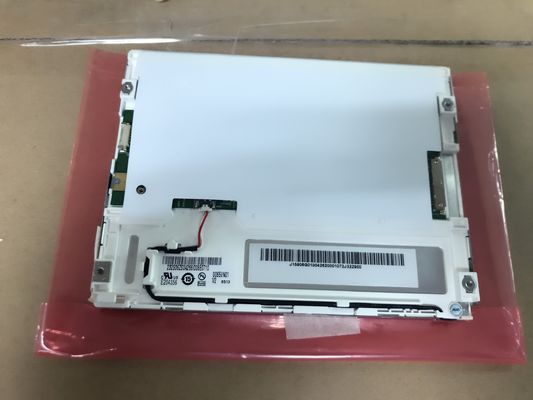

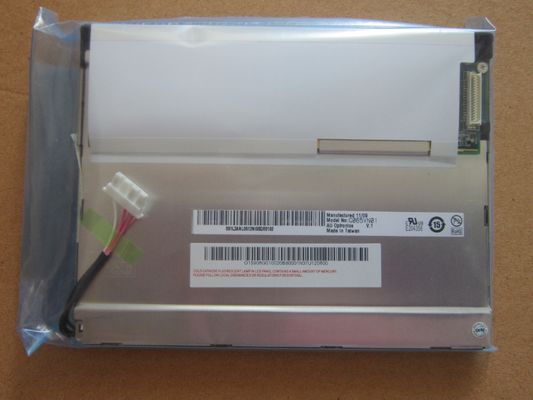

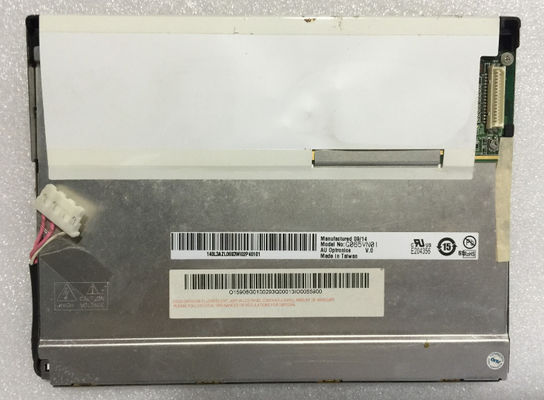

6.5" 640×480 122PPI 600cd/M2 Industrial Lcd Panel G065VN01 V1

6.5" 640×480 122PPI 600cd/M2 Industrial Lcd Panel G065VN01 V1

Brand Name:	AUO
Model Number:	G065vn01 v1
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

262K Colors

Model:

Style:

Wide Screen High Resolution 640*480 PIXELS

Brightness:

500cd

Connector:

31PIN

Contrast Ratio:

600:1

Working Time:

50k Hours

Input Voltage:

3.3 V

Signal Type:

Packaging Details:

Industrial packing

Highlight:

600cd/M2 Industrial Lcd Panel

122PPI Industrial Lcd Panel

G065VN01 V1

Product Description


Brand: AUO
Model: G065VN01 V1

Diagonal Size: 6.5 inch
Type: a-Si TFT-LCD, LCM

Pixel Format: 640(RGB)×480 [VGA] 122PPI
Configuration: RGB Vertical Stripe

Active Area: 132.48(H)×99.36(V) mm
Outline Dim.: 153(H)×118(V) ×11.2(D) mm

Bezel Area: 135.9(H)×102.8(V) mm
Treatment: Antiglare, Hard coating (3H)

Luminance: 500 cd/m² (Typ.)
Contrast Ratio: 600:1 (Typ.) (TM)

View Direction: 6 o'clock
Response Time: 15/10 (Typ.)(Tr/Td)

Viewing Angle: 70/70/60/60 (Typ.)(CR≥10)
Operating Mode: TN, Normally White, Transmissive

Support Color: 262K 55% NTSC
Light Source: CCFL [2 pcs] , 50K hours , W/O Driver

Weight: 200g (Typ.)
Designed For

Frame Rate: 60Hz
Touch Panel: Without

Interface Type: CMOS (1 ch, 6-bit) , 31 pins Connector

Power Supply: 3.3V (Typ.)(VDD)

Environment: Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C; AUO 6.5inch industrial lcd model G065VN01 V1 640(RGB)×480 [SVGA] 122PPI 600cd/m² 31PIN industrial lcd display panel; AU Optronics Corp. (hereafter called AUO) G065VN01 V1 (Alias: G065VN01 V.1) is a 6.5 inch diagonal a-Si TFT-LCD display panel product, with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by einklcd in the following: Lamp Repaceable, Life ≥ 50K hours, 180° Reverse, Matte . Based on its features, einkl recommend that this model be applied to Industrial etc. According to the information stored in Einklcd this model mass production on Q2, 2007 and last shippment on Q3, 2010, Now this model is discontinued. We inputted this model's specification on Dec 24 2011 for the first time, and the latest update on Apr 8 2020. If you want to embed G065VN01 V1 LCM in your future product, Einklcd strongly recommend that you should contact with AUO or it's distributor to learn lateast production and specification detail. The G065VN01 V1 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making. All specification details are inputted by einklcd engineers according to datasheet, but we cannot guarantee the spec listed is right
.
