Sharp 5inch LCD Touch Panel LS050T1SX18 with 1080×1920 FHD 480Cd/M2 Brightness and 40PIN Connector for Industrial Use

Name: Sharp 5inch LCD Touch Panel LS050T1SX18 with 1080×1920 FHD 480Cd/M2 Brightness and 40PIN Connector for Industrial Use
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: LS050T1SX18
Price: 43.00 USD
Availability: InStock

Brand Name:	sharp
Model Number:	LS050T1SX18
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

1.07B Colors

Model:

WLED

Style:

Wide Screen High Resolution 1080*1920 PIXELS

Brightness:

480cd

Connector:

40PIN

Contrast Ratio:

1500:1

Working Time:

70k Hours

Input Voltage:

3.3 V

Signal Type:

Mipi

Packaging Details:

Industrial packing

Highlight:

480Cd/M2 Sharp Lcd Touch Panel

445PPI Sharp Lcd Touch Panel

LS050T1SX18

Product Description

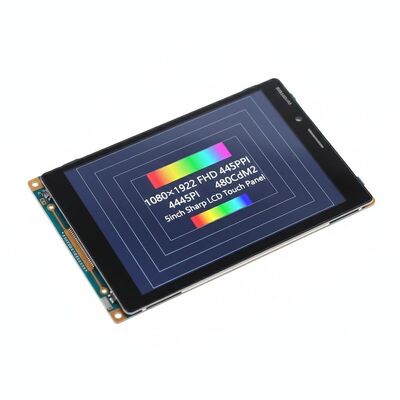

1080*1920 FHD 445PPI 480Cd/M² 5inch Sharp LCD Touch Panel LS050T1SX18

Sharp 5-inch LCD display LS050T1SX18 with touch panel - 1080(RGB)*1920 resolution, FHD 445PPI, 480 cd/m² brightness, 40-pin connector for mobile phone applications

Product Specifications

Panel Brand

Sharp

Panel Model

LS050T1SX18

Panel Size

5.0"

Panel Type

CG-Silicon, LCM

Resolution

1080(RGB)*1920, FHD, 445PPI

Pixel Format

RGB Vertical Stripe

Display Area

61.641(W)*109.584(H) mm

Outline Size

63.64(W)*116.224(H)*1.16(D) mm

Brightness

480 cd/m² (Typ.)

Contrast Ratio

1500:1 (Typ.) (TM)

Viewing Angle

80/80/80/80 (Min.)(CR≥10)

Display Mode

New Mode2, Normally Black, Transmissive

Best View

Symmetry

Response Time

35ms (Max.)(Tr+Td)

Display Colors

16.7M 95% NTSC

Lamp Type

6S2P WLED, Without Driver

Frequency

60Hz

Touch Screen

PCAP

Panel Weight

14.0g (Typ.)

Signal Interface

MIPI (4 data lanes), 40-pin Connector

Input Voltage

1.8/5.5/-5.5V (Typ.)(VDDIO/AVDD/AVEE)

Operating Temperature

-20°C to 60°C

Storage Temperature

-30°C to 70°C

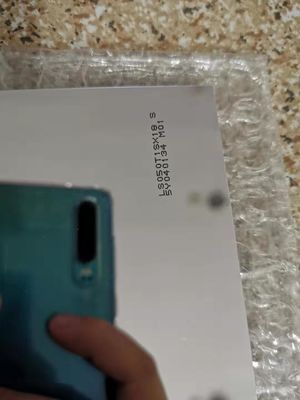

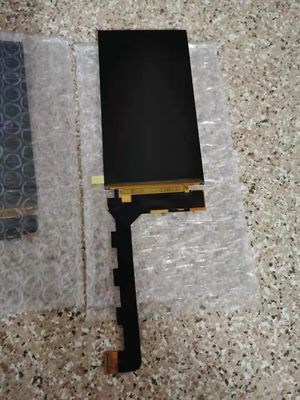

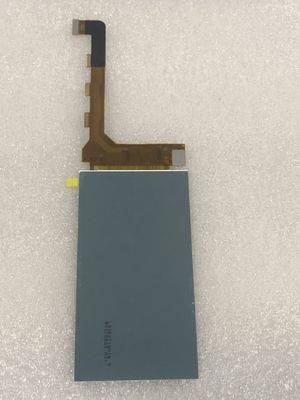

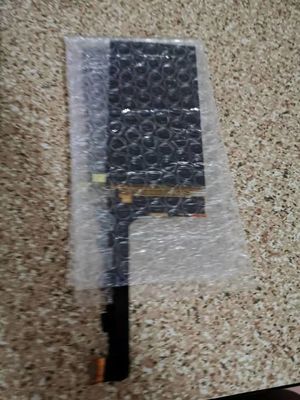

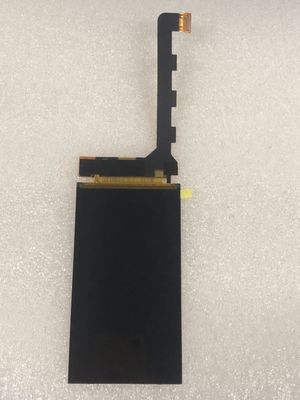

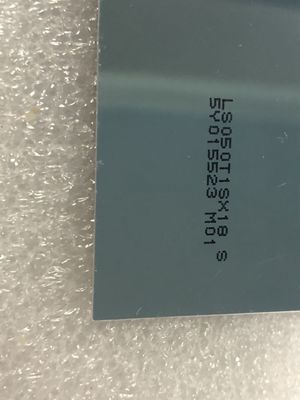

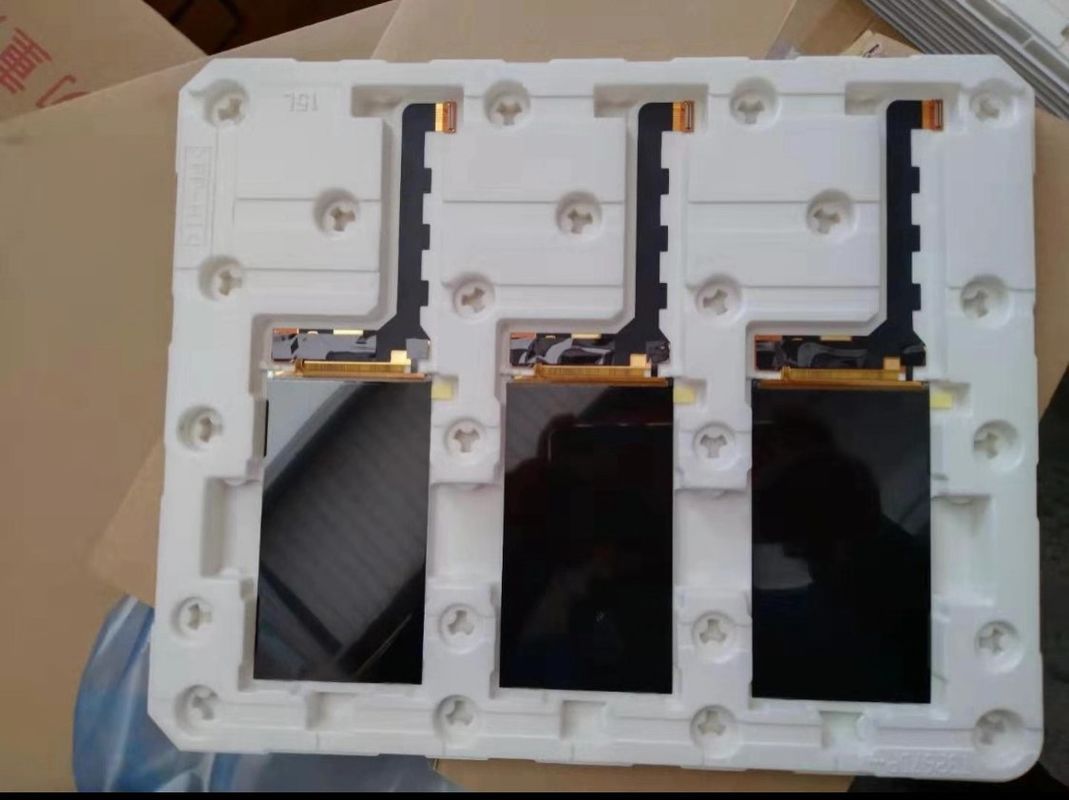

Product Images

Key Features

High-resolution 5-inch FHD display with 445 PPI density
Projected capacitive touch screen (PCAP) technology
High brightness of 480 cd/m² for excellent visibility
Wide color gamut supporting 16.7 million colors
MIPI interface with 40-pin connector for mobile applications
Compact and lightweight design at 14.0 grams
Wide operating temperature range for various environments
