1080×1920 FHD 445PPI 480Cd/M2 Sharp Lcd Touch Panel LS050T1SX18

Brand Name:	sharp
Model Number:	LS050T1SX18
MOQ:	10pcs
Price:	Negotiation
Packaging Details:	Industrial packing
Payment Terms:	T/T,W, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

1.07B Colors

Model:

Style:

Wide Screen High Resolution 1080*1920 PIXELS

Brightness:

480cd

Connector:

40PIN

Contrast Ratio:

1500:1

Working Time:

70k Hours

Input Voltage:

3.3 V

Signal Type:

Supply Ability:

3000pcs per week

Highlight:

480Cd/M2 Sharp Lcd Touch Panel

445PPI Sharp Lcd Touch Panel

LS050T1SX18

Product Description

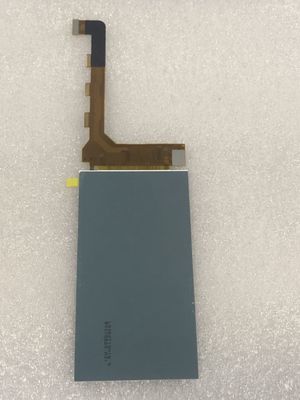

Sharp 5inch lcd display LS050T1SX18 with touch panel 1080(RGB)×1920, FHD 445PPI 480 cd/m² 40PIN for mobile phone use

Panel Brand
Sharp
Panel Model
LS050T1SX18

Panel Size
5.0"
Panel Type
CG-Silicon, LCM

Resolution
1080(RGB)×1920, FHD, 445PPI
Pixel Format
RGB Vertical Stripe

Display Area
61.641(W)×109.584(H) mm
Bezel Opening
-

Outline Size
63.64(W)×116.224(H) ×1.16(D) mm
Surface
-

Brightness
480 cd/m² (Typ.)
Contrast Ratio
1500:1 (Typ.) (TM)

Viewing Angle
80/80/80/80 (Min.)(CR≥10)
Display Mode
New Mode2, Normally Black, Transmissive

Best View on
Symmetry
Response Time
35 (Max.)(Tr+Td)

Display Colors
16.7M 95% NTSC
Lamp Type
6S2P WLED , Without Driver

Frequency
60Hz
Touch Screen
PCAP

Panel Weight
14.0g (Typ.)
Application

Signal Interface
MIPI (4 data lanes) , 40 pins Connector

Input Voltage
1.8/5.5/-5.5V (Typ.)(VDDIO/AVDD/AVEE)

Environment
Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C

1080×1920 FHD 445PPI 480Cd/M2 Sharp Lcd Touch Panel LS050T1SX18 1
