10.4 Inch 800×600 Resolution 400cd/m² Brightness Industrial LCD Display Panel TFT-LCD Screen

Name: 10.4 Inch 800×600 Resolution 400cd/m² Brightness Industrial LCD Display Panel TFT-LCD Screen
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: G104STN01.0
Price: 43.00 USD
Availability: InStock

Brand Name:	auo
Model Number:	G104STN01.0
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

265K Colors

Model:

WLED

Style:

Wide Screen High Resolution 800(RGB)×600 [QVGA] 122PPI

Brightness:

400cd

Connector:

20PIN

Contrast Ratio:

700:1

Working Time:

70k Hours

Packaging Details:

Industrial packing

Highlight:

96PPI Industrial Lcd Screen

400cd/m2 Industrial Lcd Screen

G104STN01.0

Product Description

10.4" 800*600 96PPI 400cd/m² Industrial LCD Screen G104STN01.0

AUO 10.4-inch industrial LCD panel featuring 800(RGB)*600 SVGA resolution, 96 PPI pixel density, 400 cd/m² brightness, and 700:1 contrast ratio. This 20-pin display supports 262k colors and is engineered for demanding industrial applications.

Product Overview

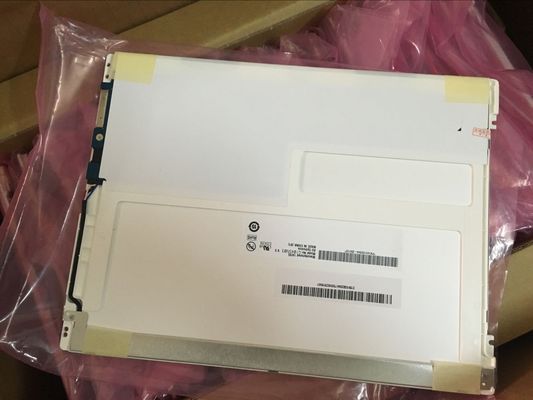

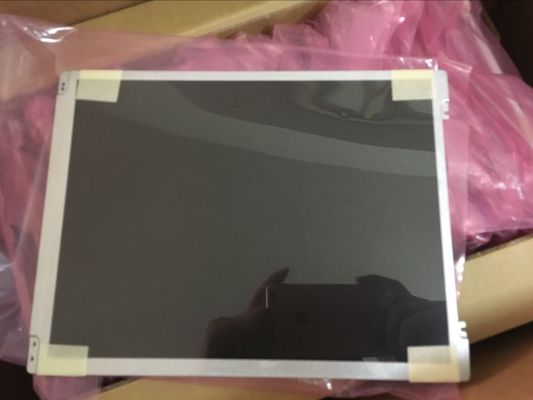

The AU Optronics G104STN01.0 is a 10.4-inch diagonal a-Si TFT-LCD display panel with integrated WLED backlight system and LED driver. Designed without touch screen capability, this industrial-grade display operates in temperatures from -30°C to 80°C and withstands vibration levels up to 1.5G (14.7 m/s²).

Key Features

Wide operating temperature range (-30°C to 80°C)
WLED backlight with 70,000+ hour lifespan
Integrated LED driver
180° reverse capability
6/8-bit interface support
Matte anti-glare surface with hard coating (3H)
Designed for industrial applications

Technical Specifications

Brand	AUO
Model	G104STN01.0
Diagonal Size	10.4 inch
Type	a-Si TFT-LCD, LCM
Pixel Format	800(RGB)*600 [SVGA] 96PPI
Active Area	211.2(H)*158.4(V) mm
Outline Dimensions	243(H)184(V)7(D) mm
Luminance	400 cd/m² (Typical)
Contrast Ratio	700:1 (Typical)
Response Time	10/5 ms (Typical)(Tr/Td)
Viewing Angle	80/80/60/70 (Typical)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K/16.2M 50% NTSC
Light Source	WLED [7S2P], 70K hours, With LED Driver
Weight	365g (Typical)
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (1 ch, 6/8-bit), 20 pins Connector
Power Supply	3.3V (Typical)
Operating Temperature	-30°C to 80°C
Storage Temperature	-30°C to 80°C

Production Note: This model entered mass production in Q1 2014 and remains in current production. For the latest production status and detailed specifications, we strongly recommend contacting AUO or their authorized distributors directly. Information on einklcd.com is for reference only and should not be used as the sole basis for decision-making.
