NEC 15" Industrial LCD Display with 1024x768 Pixels 250cd/m2 Brightness and 20PIN Connector

Name: NEC 15" Industrial LCD Display with 1024x768 Pixels 250cd/m2 Brightness and 20PIN Connector
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: NL10276BC30-32D
Price: 43.00 USD
Availability: InStock

Brand Name:	NEC
Model Number:	NL10276BC30-32D
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7Mcolors

Model:

WLED

Style:

Wide Screen High Resolution 1024*768Pixels

Brightness:

250cd

Connector:

20PIN

Contrast Ratio:

500:1

Working Time:

50k Hours

Packaging Details:

Industrial packing

Highlight:

250cd/m2 Industrial LCD Display

1024x768 Industrial LCD Display

NL10276BC30-32D

Product Description

NEC 15" 1024x768 250cd/m² Industrial LCD Display NL10276BC30-32D

NEC 15-inch industrial LCD panel featuring 1024*768 pixel resolution, 250cd/m² brightness, 500:1 contrast ratio, and 16.7 million colors. This high-performance display is engineered for demanding industrial applications.

Product Overview

The NEC NL10276BC30-32D is a 15.0-inch diagonal a-Si TFT-LCD display panel with an integral CCFL backlight system. Designed for industrial environments, it operates within a temperature range of -20°C to 70°C and withstands vibration levels up to 1.2G (11.76 m/s²).

Key Features

Lamp replaceable with life ≥ 50,000 hours
180° reverse viewing capability
Matte surface with anti-glare treatment
PSWG compatible for industrial standards
Wide operating temperature range: -20°C to 70°C

Technical Specifications

Manufacturer	NEC
Model Name	NL10276BC30-32D
Screen Size	15.0 inch
Screen Type	LCM, a-Si TFT-LCD
Resolution	1024(RGB)*768 (XGA) 85PPI
Active Area	304.128 * 228.096 mm (H*V)
Outline Dimensions	326.5 * 253.5 * 12 mm (HVD)
Luminance	250 cd/m² (Typical)
Contrast Ratio	500:1 (Typical)
Viewing Angle	80/80/80/80 (Typical, CR≥10)
Response Time	4/14 ms (Typical, Tr/Td)
Color Depth	16.7M colors, 50% NTSC
Backlight	2 pcs CCFL, 50K hours, No Driver
Signal Type	LVDS (1 ch, 8-bit), 20 pins Connector
Voltage Supply	3.3V (Typical)
Refresh Rate	60Hz
Touchscreen	Without
Weight	0.97/1.05 kgs (Typical/Maximum)

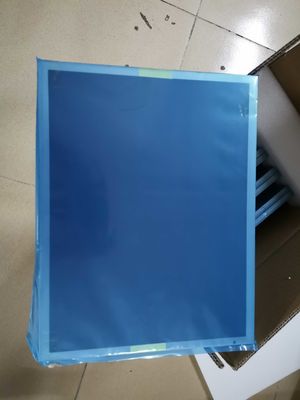

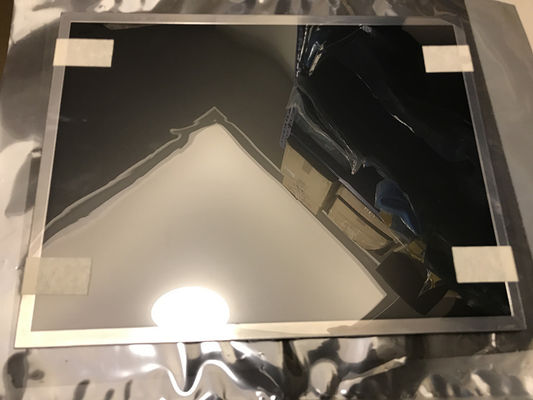

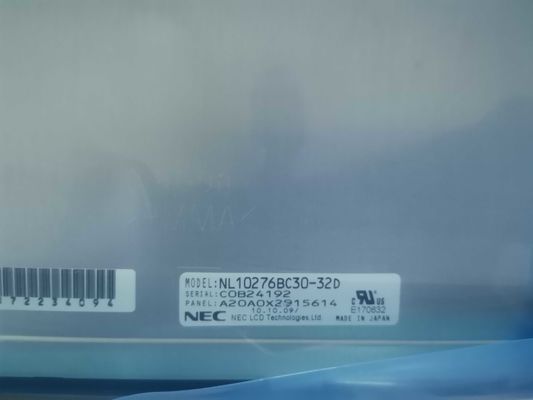

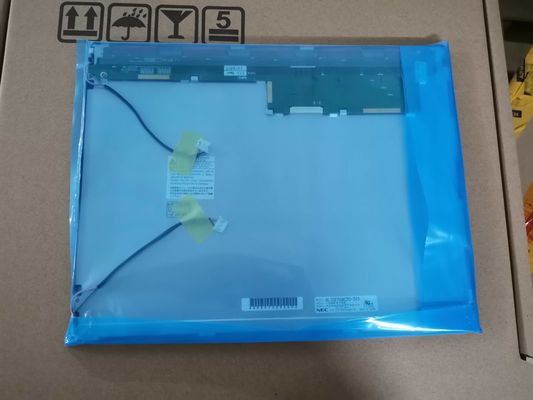

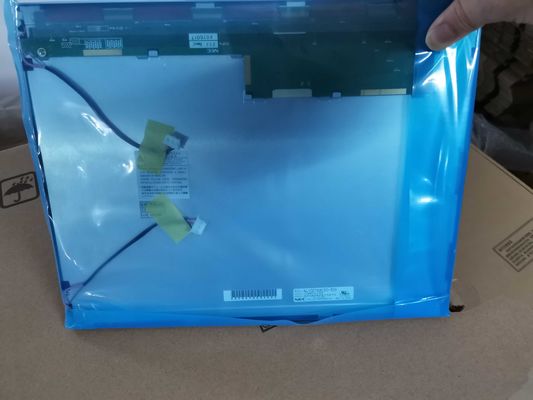

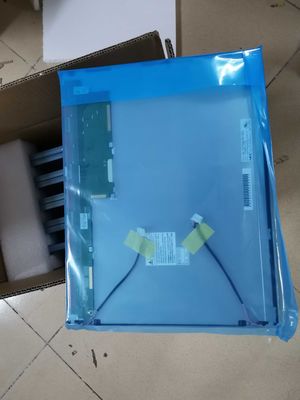

Product Images

Important Note: This model entered mass production in Q4 2007 with last shipment in Q3 2015 and is now discontinued. For integration into future products, contact NEC or their distributor for the latest production and specification details. Information provided is for reference only and should not be used as the sole basis for decision making.
