AUO 13.3 Inch Industrial LCD Screen with 1920x1080 Resolution 400 cd/m² Brightness and 30PIN IPS Interface

AUO 13.3 Inch Industrial LCD Screen with 1920x1080 Resolution 400 cd/m² Brightness and 30PIN IPS Interface

AUO 13.3 Inch Industrial LCD Screen with 1920x1080 Resolution 400 cd/m² Brightness and 30PIN IPS Interface

Brand Name: AUO
Model Number: G133HAN01.0
MOQ: 10pcs
Price: Negotiation
Payment Terms: T/T,W,Western Union,MoneyGram
Supply Ability: 3000pcs per week
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
Rohs,CE,FCC
Quality:
Brand New Original
Package:
Original Industrial Packing
Resolution:
1920*1080pixels
Style:
30PIN IPS
Brightness:
400 CD/M2
Color:
16.7M
Contrast Ratio:
800 :1
Working Life:
50K Hours
Packaging Details:
Industrial packing
Highlight:

400cd/m² Industrial Lcd Screen

,

1920X1080 Industrial Lcd Screen

,

G133HAN01.0

Product Description

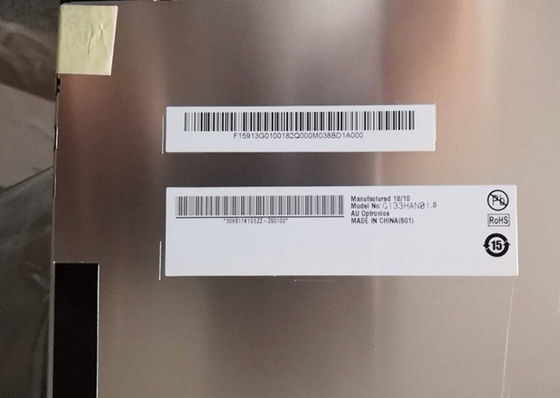

AUO 13.3" 1920*1080 Industrial LCD Display Panel
Product Overview

G133HAN01.0 is a 13.3-inch diagonal a-Si TFT-LCD display panel from AU Optronics Corp. featuring an integral WLED backlight system with LED driver and no touch screen. This industrial-grade display offers exceptional performance for demanding applications.

Technical Specifications
Panel Brand AUO Panel Model G133HAN01.0
Panel Size 13.3" Panel Type a-Si TFT-LCD, LCM
Resolution 1920*1080 (FHD, 166 PPI) Pixel Format RGB Vertical Stripe
Display Area 293.472*165.078 mm Bezel Opening 295.07*166.68 mm
Outline Size 309.7*184.1*10.1 mm Surface Antiglare
Brightness 400 cd/m² (Typical) Contrast Ratio 800:1 (Typical)
Viewing Angle 85/85/85/85 (CR≥10) Display Mode AHVA, Normally Black, Transmissive
Best View On Symmetry Response Time 25ms (Typical)
Display Colors 16.7M (90% NTSC) Lamp Type WLED, 50K hours, With LED Driver
Frequency 60Hz Touch Screen Without
Weight 500g (Typical) Application Industrial, Medical Imaging, Gaming
Interface & Environmental Specifications
Signal Interface LVDS (2 ch, 8-bit), 30 pins Connector
Input Voltage 3.3V (Typical)
Operating Temperature 0°C to 70°C
Storage Temperature 0°C to 70°C
Maximal Vibration Level 1.5G (14.7 m/s²)
AUO 13.3 Inch Industrial LCD Screen with 1920x1080 Resolution 400 cd/m² Brightness and 30PIN IPS Interface 0
Key Features
  • Wide Color Gamut with DCI-P3 and sRGB support
  • High brightness 400 cd/m² for excellent visibility
  • WLED backlight with 50,000+ hours lifespan
  • Integrated LED driver for simplified integration
  • Matte antiglare surface for reduced reflections
  • Reverse interface compatibility
  • Robust construction for industrial environments
Recommended Applications

This display panel is ideally suited for Industrial equipment, Medical Imaging systems, Gaming applications, and other demanding environments requiring reliable high-performance displays.

Production Status: Mass production began Q3 2016. This model is currently in production. For the latest production status and specification details, we strongly recommend contacting AUO or their authorized agents directly.
Quality Assurance: All LCD panels undergo comprehensive individual testing before delivery to ensure optimal performance and reliability.
