TIANMA 10.4 Inch 800*600pixels 300 CD/M2 Industrial LCD Display TFT-LCD Panel TM104SBH01

Name: TIANMA 10.4 Inch 800*600pixels 300 CD/M2 Industrial LCD Display TFT-LCD Panel TM104SBH01
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: TM104SBH01
Price: 43.00 USD
Availability: InStock

Brand Name:	TIANMA
Model Number:	TM104SBH01
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

800*600pixels

Style:

20PIN IPS

Brightness:

300 CD/M2

Color:

262K

Contrast Ratio:

400 :1

Working Life:

20K Hours

Packaging Details:

Industrial packing

Highlight:

300CCD/M2 Industrial LCD Display

10.4" Industrial LCD Display

TM104SBH01

Product Description

300CCD/M2 800*600 10.4" Industrial LCD Display TM104SBH01

Brand TIANMA

Model TM104SBH01

Diagonal Size 10.4 inch

Type a-Si TFT-LCD, LCM

Pixel Format 800(RGB)*600 [SVGA] 96PPI

Configuration RGB Vertical Stripe

Active Area 211.2(H)*158.4(V) mm

Outline Dimensions 236(H)*176.9(V)*7.6(D) mm

Bezel Area 214.2(H)*161.4(V) mm

Surface Treatment Antiglare, Hard coating (3H)

Luminance 300 cd/m² (Typ.)

Contrast Ratio 400:1 (Typ.)

View Direction 12 o'clock

Response Time 10/15 (Typ.)(Tr/Td)

Viewing Angle 70/70/60/70 (Typ.)(CR≥10)

Operating Mode TN, Normally White, Transmissive

Support Color 262K 50% NTSC

Light Source WLED [6S6P], 20K hours, W/O Driver

Weight 412g

Frame Rate 60Hz

Touch Panel 4-wire Resistive Touch

Interface Type LVDS (1 ch, 6-bit), 20 pins Connector

Power Supply 3.3V (Typ.)

Operating Environment

Operating Temperature: -20°C to 70°C

Storage Temperature: -30°C to 80°C

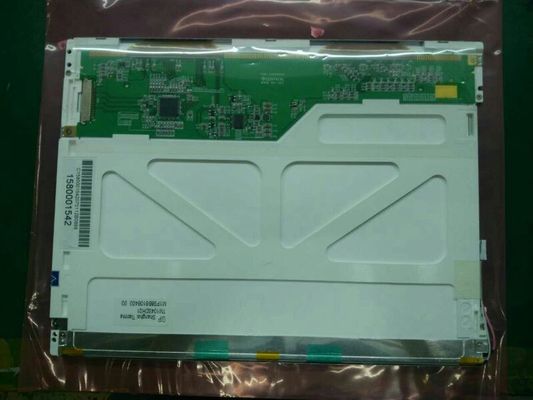

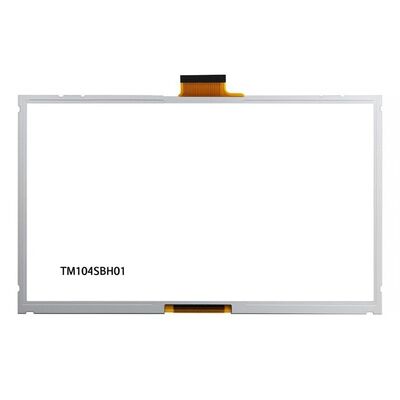

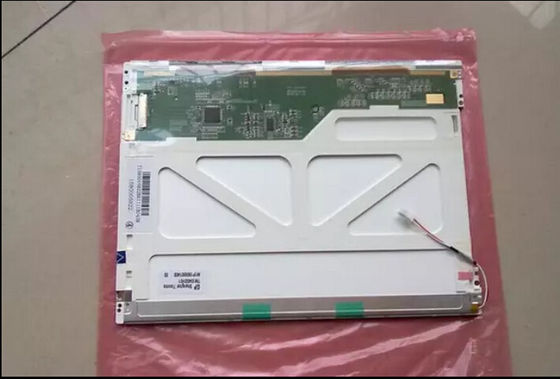

Product Image

TIANMA 10.4 Inch industrial LCD TM104SBH01 featuring 800*600 pixel resolution, 300 cd/m² brightness, 20-pin connector, and 262K color support for industrial applications.
