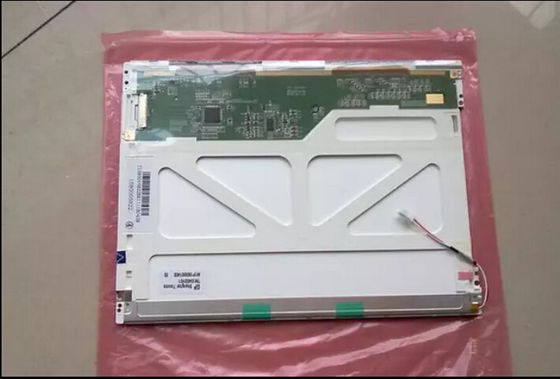

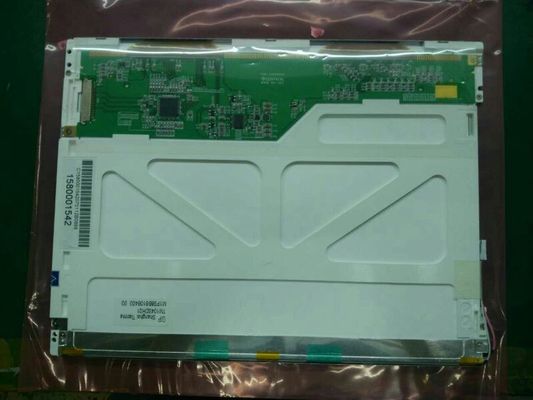

300CCD/M2 800*600 10.4" Industrial LCD Display TM104SBH01

Brand Name:	TIANMA
Model Number:	TM104SBH01
MOQ:	10pcs
Price:	Negotiation
Packaging Details:	Industrial packing
Payment Terms:	T/T,W, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

800*600pixels

Style:

20PIN IPS

Brightness:

300 CD/M2

Color:

Contrast Ratio:

400 :1

Working Life:

20K Hours

Supply Ability:

3000pcs per week

Highlight:

300CCD/M2 Industrial LCD Display

10.4" Industrial LCD Display

TM104SBH01

Product Description



Brand: TIANMA
Model: TM104SBH01

Diagonal Size: 10.4 inch
Type: a-Si TFT-LCD, LCM

Pixel Format: 800(RGB)×600 [SVGA] 96PPI
Configuration: RGB Vertical Stripe

Active Area: 211.2(H)×158.4(V) mm
Outline Dim.: 236(H)×176.9(V) ×7.6(D) mm

Bezel Area: 214.2(H)×161.4(V) mm
Treatment: Antiglare, Hard coating (3H)

Luminance: 300 cd/m² (Typ.)
Contrast Ratio: 400:1 (Typ.) (TM)

View Direction: 12 o'clock
Response Time: 10/15 (Typ.)(Tr/Td)

Viewing Angle: 70/70/60/70 (Typ.)(CR≥10)
Operating Mode: TN, Normally White, Transmissive

Support Color: 262K 50% NTSC
Light Source: WLED [6S6P] , 20K hours , W/O Driver

Weight: 412g
Designed For

Frame Rate: 60Hz
Touch Panel: 4-wire Resistive Touch

Interface Type: LVDS (1 ch, 6-bit) , 20 pins Connector

Power Supply: 3.3V (Typ.)

Environment: Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C; TIANMA 10.4 Inch industrial LCD TM104SBH01 800*600pixels 300CCD/M2 20pin 262K color
