G215HVN01.101 21.5 Inch Industrial LCD Panel with 1920x1080 Resolution 250cd Brightness and 30 Pin Connector

Name: G215HVN01.101 21.5 Inch Industrial LCD Panel with 1920x1080 Resolution 250cd Brightness and 30 Pin Connector
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: G215HVN01.101
Price: 43.00 USD
Availability: InStock

Brand Name:	auo
Model Number:	G215HVN01.101
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.2m Colors

Model:

XGA

Style:

Wide Screen High Resolution1920*1080Pixels

Brightness:

250cd

Connector:

Contrast Ratio:

5000:1

Working Time:

30k Hours

Packaging Details:

Industrial packing

Highlight:

250CD Industrial Lcd Monitor

21.5 Inch Industrial Display Monitors

Product Description

G215HVN01.101 1920*1080 250CD 21.5 Inch Industrial LCD Panel

Product Overview

Panel Brand AUO

Panel Model G215HVN01.101

Panel Size 21.5"

Panel Type a-Si TFT-LCD, LCM

Display Specifications

Resolution 1920(RGB)*1080 (FHD)

Pixel Format RGB Vertical Stripe

Brightness 250 cd/m² (Typ.)

Contrast Ratio 5000:1 (Typ.) (TM)

Viewing Angle 89/89/89/89 (Typ.)(CR≥10)

Display Mode AMVA3, Normally Black, Transmissive

Best View Symmetry

Response Time 20/5 (Typ.)(Tr/Td)

Display Colors 16.7M 72% NTSC

Physical Dimensions

Display Area 476.64(W)*268.11(H) mm

Bezel Opening 479.84(W)*271.31(H) mm

Outline Size 495.6(W)*292.2(H)*12.18(D) mm

Surface Antiglare, Hard coating (3H)

Panel Weight 1.95Kgs (Max.)

Technical Specifications

Lamp Type 14S5P WLED, 30K hours, With LED Driver

Frequency 60Hz

Touch Screen Without

Signal Interface LVDS (2 ch, 8-bit), 30 pins Connector

Input Voltage 5.0V (Typ.)

Environmental Specifications

Operating Temperature 0 ~ 50 °C

Storage Temperature -20 ~ 60 °C

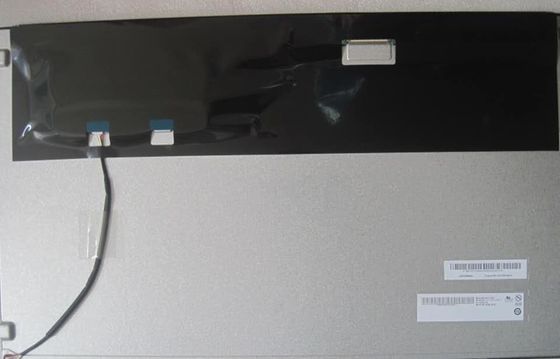

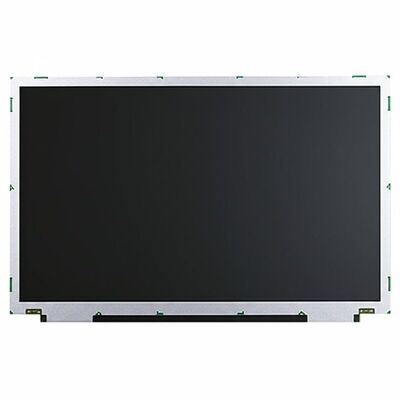

AUO G215HVN01.101 21.5 Inch Industrial Panel Screen
1920*1080 Pixel Resolution | 250CD Brightness | 30Pin Interface
