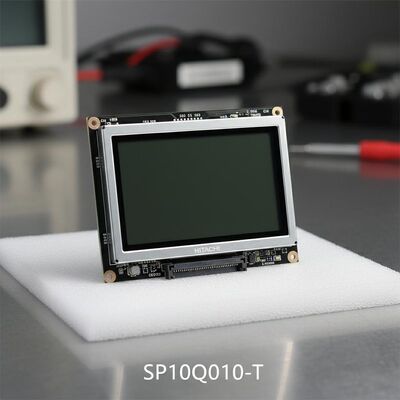

Hitachi 3.8 Inch 320*240 Pixels 60CD/M2 Industrial LCD Display SP10Q010-T FSTN-LCD Panel

Name: Hitachi 3.8 Inch 320*240 Pixels 60CD/M2 Industrial LCD Display SP10Q010-T FSTN-LCD Panel
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: SP10Q010-T
Price: 43.00 USD
Availability: InStock

Brand Name:	Hitachi
Model Number:	SP10Q010-T
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.2m Colors

Model:

XGA

Style:

Wide Screen High Resolution 320*240Pixels

Brightness:

60cd

Connector:

Contrast Ratio:

5:1

Working Time:

30k Hours

Packaging Details:

Industrial packing

Highlight:

industrial panel pc touch screen

industrial computer monitor

Product Description

3.8 Inch 320*240 Pixels Industrial LCD Display SP10Q010-T

Hitachi 3.8-inch Industrial LCD Display SP10Q010-T featuring 320*240 pixels, 60 cd/m² brightness, and 20-pin parallel interface. This monochrome FSTN-LCD panel is designed for industrial applications with wide operating temperature range.

Technical Specifications

Manufacturer	HITACHI
Model Name	SP10Q010-T
Screen Size	3.8 inch
Screen Type	LCM, FSTN-LCD
Resolution	320*240 (QVGA)
Active Area	76.79 * 57.59 mm (H*V)
Outline Dimensions	94.7 * 73.3 * 6 mm (HVD)
Luminance	60 cd/m² (Typical)
Contrast Ratio	5:1 (Typical)
Viewing Angle	80° (Typical)
Response Time	150/350 ms (Tr/Td)
Display Mode	STN, Black/White (Positive), Transflective
Backlight	1S6P WLED, No Driver
Refresh Rate	75Hz
Interface	Parallel Data (4-bit), FPC, 20 pins
Operating Voltage	3.3V (Typical)
Operating Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C

Key Features

Industrial-grade FSTN-LCD display panel
Integral WLED backlight system
Wide operating temperature range (-20°C to 70°C)
Transflective technology for better visibility
20-pin parallel interface for easy integration
Robust construction for industrial environments

Product Overview

The SP10Q010-T from Kaohsiung Hitachi Electronics Co., Ltd. is a reliable 3.8-inch diagonal FSTN-LCD display panel with integrated WLED backlight. Designed specifically for industrial applications, this display withstands maximal vibration levels of 1.2G (11.76 m/s²) and operates reliably across extreme temperature conditions.

This model entered mass production in Q1 2003 and remains in production. For current production status and latest specifications, we recommend contacting HITACHI or their authorized agents directly.

Quality Assurance: All our LCD products undergo comprehensive testing before delivery.
Warranty: One-year warranty with free exchange service included.
